Factory Price RF Connector for Rg316 N Male Connector

Name: Factory Price RF Connector for Rg316 N Male Connector
Brand: all-electronics-online.com
SKU: 807608825
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XT-N 000
Item Name:	Factory Price RF Connector for Rg316 N Male Connec
Frequency Range:	0-11GHz
Durability Mating:	500 Cycles Min.
Vswr:	R/a More Than The 1.50
Frequency:	DC-4GHz
Insertion Losss:	More Than The 0.2dB
Characteristic Impedance:	75ohm
Material:	Copper
Operating Temperature:	-65~+165

Product Description

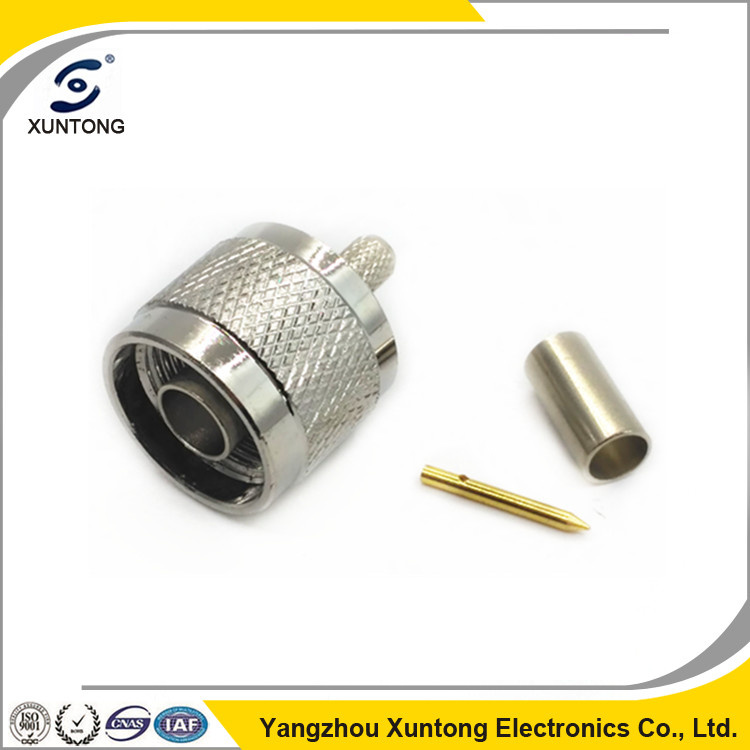

Factory Price RF Connector For RG316 N Male Connector

PRODUCT SPECIFICATION

Characteristic Impedance	50ohm, 75ohm
Frequency Range	0-11GHz
Working Voltage	1000 VRMS(max at sea level)
Dielectric Withstanding Voltage	1500 VRMS(min at sea level)
VSWR	R/A: ≤1.50
Contact Resistance	Inner: 1.5 milliohms(max)
Contact Resistance	Outer: 0.2 milliohms(max)
Insulation Resistance	5000 megohms(min)
Durability Mating	500 Cycles min.
Connector Parts	Materials	Plating Finish
Body	Brass	Nickel or Silver or Sn/Zn/Cu
Male Pin	Brass	Gold or Sliver
Insulators	PTFE	N/A
Clamp Gaskets	Silicone Rubber or Synthetic Rubber	N/A
Crimp Ferrules	Annealed Copper	Nickel or Silver
Temperature Range	-65~+165ºC

OUR SERVICE

1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.

FAQ

A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.

B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.

C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.

Xuntong Electronics Co., Ltd

Yangzhou Xun Electronics Co., Ltd. Was established in 2003, in the connector field has many years of production experience and superb product technology,

About the RF coaxial connectors, F head series (RG58, RG59, RG6, GR11), PAL (TV), BNC, N, RCA, SMA, SMB, TNC, L9 (1.6 / 5.6). L27, L29 (7/16), L36, L52., UHF (PL259), 1 / 2, 7 / 8, IF45Q type (15 / 8), IF70Q type (15/8), C6X, Q6, NEC (C4.6), MCX, MMCX, CC4 (1.0 / 2.3) and communication network products series of RF coaxial connectors between different series adapter, fiber optic connectors, filling micro-series connectors, coaxial attenuators coaxial tone attenuator, coaxial load, etc., can also be designed according to customer needs and processing of various special requirements of the connectors, copper nuts and other various copper pieces!

OUR PURPOSE

1. Attentive service process.

2. Superb product technology.

3. High-quality products.

OUR CREDIT

1. More than a decade of production experience.

2. More than five years of foreign trade transactions.

3. Long-term supply to Japan, Europe and the United States.

4. World Brand: Xuntong.
