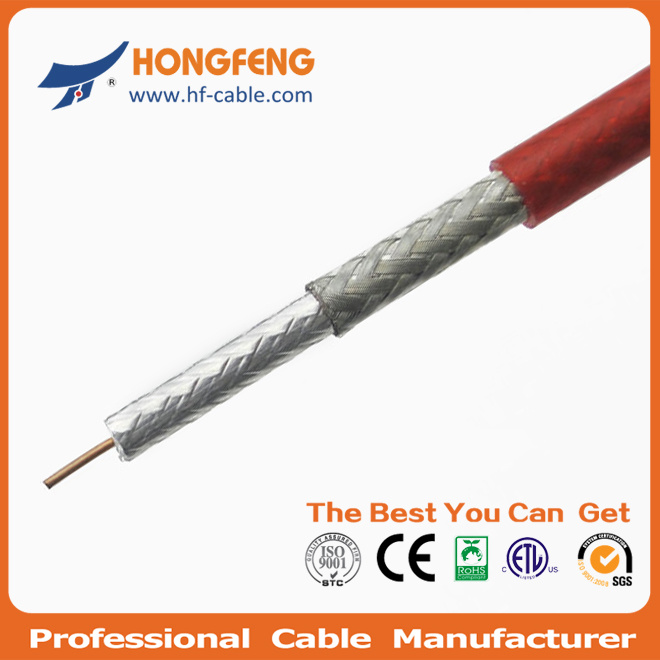

Factory Price Rg59 Coaxial Cable for CCTV

Prod Model:	RG59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Bc/CCS
Conductor Od:	0.81mm
Dielectric:	3.66mm Fpe
1st Shield:	Ai Foil
2ND Shield:	Bc/Ai Braiding
Shielding Coverage:	40%-95%
Jacket:	6.1mmpvc/PE
Color:	Any Color
Impendence:	75ohm
Coaxial Cable Rg59:	Rg59 Coaxial Cable
Application:	Submarine Cable
Conductor Material:	Copper
Certification:	ETL
Cover Material:	PVC/PE
Wire Core Material:	Bc/CCS
Type:	Coaxial

Product Description

Catv coaxial cable rg59


BASIC CONSTRUCTION

Conductor	Material	BC/CCS
	Nom.Dia.	0.81mm
Dielectric	Material	Foam PE
	Nom.Dia.	3.66mm
Shield	Material	Al foil+Al braiding
	Coverage	40%-95%
Jacket	Material	PVC/PE
	Nom.Thick.	0.80mm
	Nom.Dia.	6.10mm

BASIC CHARACTERISTICS


Nominal Impedance(ohm)	75±3
Nominal Velocity of Propagation(%)	85
Nominal Capacitance(pF/m)	50
Sparker Test(VAC)	4000
SRL(dB)	20		20
Attenuation(68°F(20°C))	Frequency(MHz)	Maximum(dB/100ft)	Maximum(dB/100m)
	5	0.86	2.82
	55	2.05	6.73
	187	3.6	11.81
	300	4.45	14.6
	450	5.4	17.72
	600	6.2	20.34
	750	6.97	22.87
	865	7.52	24.67
	1000	8.12	26.64

Export Markets: Global
Additional Info.
Trademark: Hongfeng cable
Packing: 100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,
Standard: Rg11 rg59 rg6
Origin: China
HS Code: 85442000
Production Capacity: 100, 000kms/Year
Product Description
1. RG11 RG59 RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome


2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request



#Coaxial Cables:
1) RG series Coaxial Cable: rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178,rg213, rg214, RG316,etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: P3 412, 500, 540, 625, 750, 860 ;
5) LMR SERIES: LMR195,LMR200, LMR400, LMR600 ;
6) Network Cables: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+lan cable .
Note:If the specification is not you need,please tell me and i will offer you price according your requirements.
