Factory Price Romex 12-2 12-3 14-3 Building Cable Wire
| Price: |
US $ 0.175/Foot |
| Min Order: |
10000/Foot |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Voltage: |
600V |
| Standard.: |
UL719 |
| Product Name: |
Nm-B |
| Conductor: |
Copper |
| Price: |
Factory Price |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Conductor Type: |
Stranded or Solid |
| Application: |
Indoor, Construction, Building |
| Range Of Application: |
Indoor, Construction, Building |
| Brand: |
Rneda |
Product Description
TOP TEN CABLE MANUFACTURER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY
Applications:
Type NM-B (Non-metallic sheathed cable) has a broad range of usage as defined in Article 334 of the National Electrical Code (NEC). Type NM-B cable is commonly used for residential fixtures, switches, and loads rated for at least 90ºC. Type NM-B ampacity limitation shall be in accordance with the 60ºC conductor temperature rating, as specified in the National Electrical Code. Type NM-B is rated for 600 volts for both exposed and concealed work in normally dry locations. Type NM-B may be installed or fished in air voids and joints and in masonry block or tile walls where such walls are not exposed to, nor subject to, excessive moisture or dampness.
Standards:
Underwriters Laboratories Standards UL-83, UL-719
Federal Specification A-A-59544
ASTM-B3 and B8
ARRA 2009; Section 1605 "Buy American" Compliant
CONSTRUCTION:
Conductors:
Solid 14-10 AWG soft, uncoated copper, per ASTM-B3
Stranded 8 AWG conductor and larger uncoated, copper ASTM-B8
Insulation:
Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90°C in dry locations.
Grounding Conductor:
Soft, uncoated copper per ASTM-B3 and/or ASTM-B8

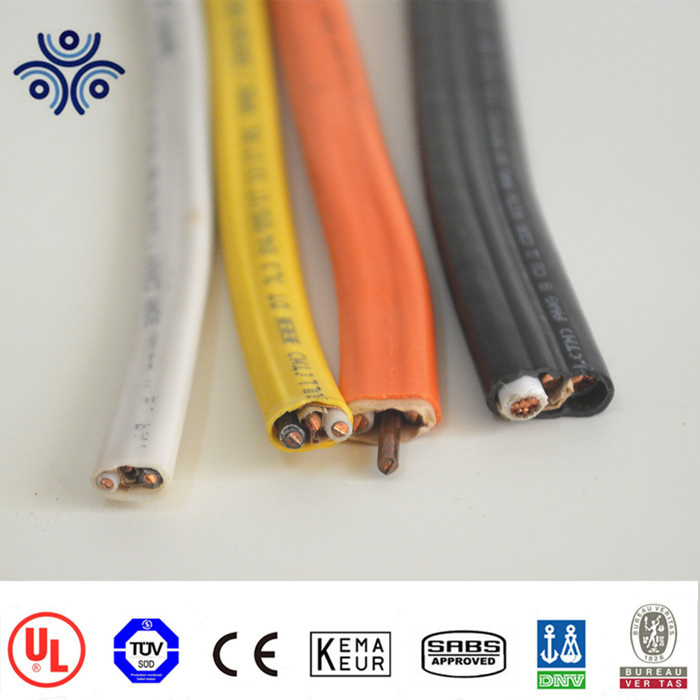

Jacket:
A 30-mil, color-coded, PVC jacket is applied over the completed assembly as follows:
14 AWG White I 12 AWG Yellow I 10 AWG Orange I 8 AWG Black I 6 AWG Black
Assembly:
2-conductor construction has the insulated conductors laid parallel with a bare copper ground wire wrapped in paper and laid parallel between the insulated conductors. The entire assembly is wrapped with a paper separator before applying the PVC outer jacket. SuperSlick Elite is available in sizes: 14 AWG, 12 AWG, 10 AWG constructions. 3 and 4 conductor constructions may have the insulated conductors laid parallel or twisted together before applying the PVC outer jacket.
Specification:| Size (AWG) | Number of Strands | Ground Wire
Size | Insulation
Thickness
(in) | Allowable Ampacity
(Amps)* | Outside Diameter
(in) | Approximate Net Weight
(lbs/1000 ft) |
| PVC | Nylon |
| 14/2 G | Solid | 14 | 0.015 | 0.004 | 15 | 0.170 x 0.390 | 56 |
| 12/2 G | Solid | 12 | 0.015 | 0.004 | 20 | 0.160 x 0.450 | 82 |
| 10/2 G | Solid | 10 | 0.020 | 0.004 | 30 | 0.210 x 0.493 | 123 |
| 8/2 G | 7 | 10 | 0.030 | 0.005 | 40 | 0.290 x 0.580 | 185 |
| 6/2 G | 7 | 10 | 0.030 | 0.005 | 55 | 0.330 x 0.695 | 256 |
| 14/3 G | Solid | 14 | 0.015 | 0.004 | 15 | 0.170 x 0.450 | 74 |
| 12/3 G | Solid | 12 | 0.015 | 0.004 | 20 | 0.345 | 107 |
| 10/3 G | Solid | 10 | 0.020 | 0.004 | 30 | 0.430 | 165 |
| 8/3 G | 7 | 10 | 0.030 | 0.005 | 40 | 0.555 | 251 |
| 6/3 G | 7 | 10 | 0.030 | 0.005 | 55 | 0.612 | 352 |
| 4/3 G | 7 | 8 | 0.040 | 0.006 | 70 | 0.820 | 565 |
| 2/3 G | 7 | 8 | 0.040 | 0.006 | 95 | 0.945 | 841 |
| **14/4 G & 14/2-2 G | Solid | 14 | 0.015 | 0.004 | 12 | 0.345 | 90 |
| **12/4 G & 12/2-2 G | Solid | 12 | 0.015 | 0.004 | 16 | 0.385 | 132 |
| **10/4 G | Solid | 10 | 0.020 | 0.004 | 30 | 0.540 | 205 |
Packaging & Shipping
Our Services
1.24 years production experience and 14 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
Company Information
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,
KEMA,CE and many other certifications.
Certifications
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
FAQ
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but thefreight charge should be paid.
3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquirytwo months before the date you would like to get the products at your country.

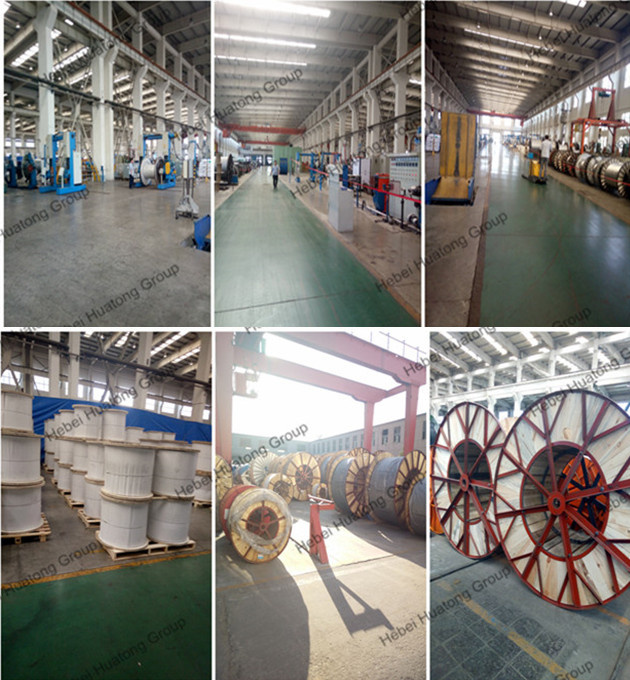

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
