Factory Price- Stainless Steel Mini Pressure Transducer with 0.2-2.9V Output

Name: Factory Price- Stainless Steel Mini Pressure Transducer with 0.2-2.9V Output
Brand: all-electronics-online.com
SKU: 797357755
Availability: InStock
Rating: 4.9 (62 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WNK811WE

Product Description

WNK811WE High Cost-effective Stainless Steel Mini Pressure Transmitter

Features:
1. Very mini dimension;
2. Pretty high cost-effective;
3. Various accuracy for option: 1%, 2% etc;
4. 304 stainless steel housing;
5. OEM, ODM serive provided.

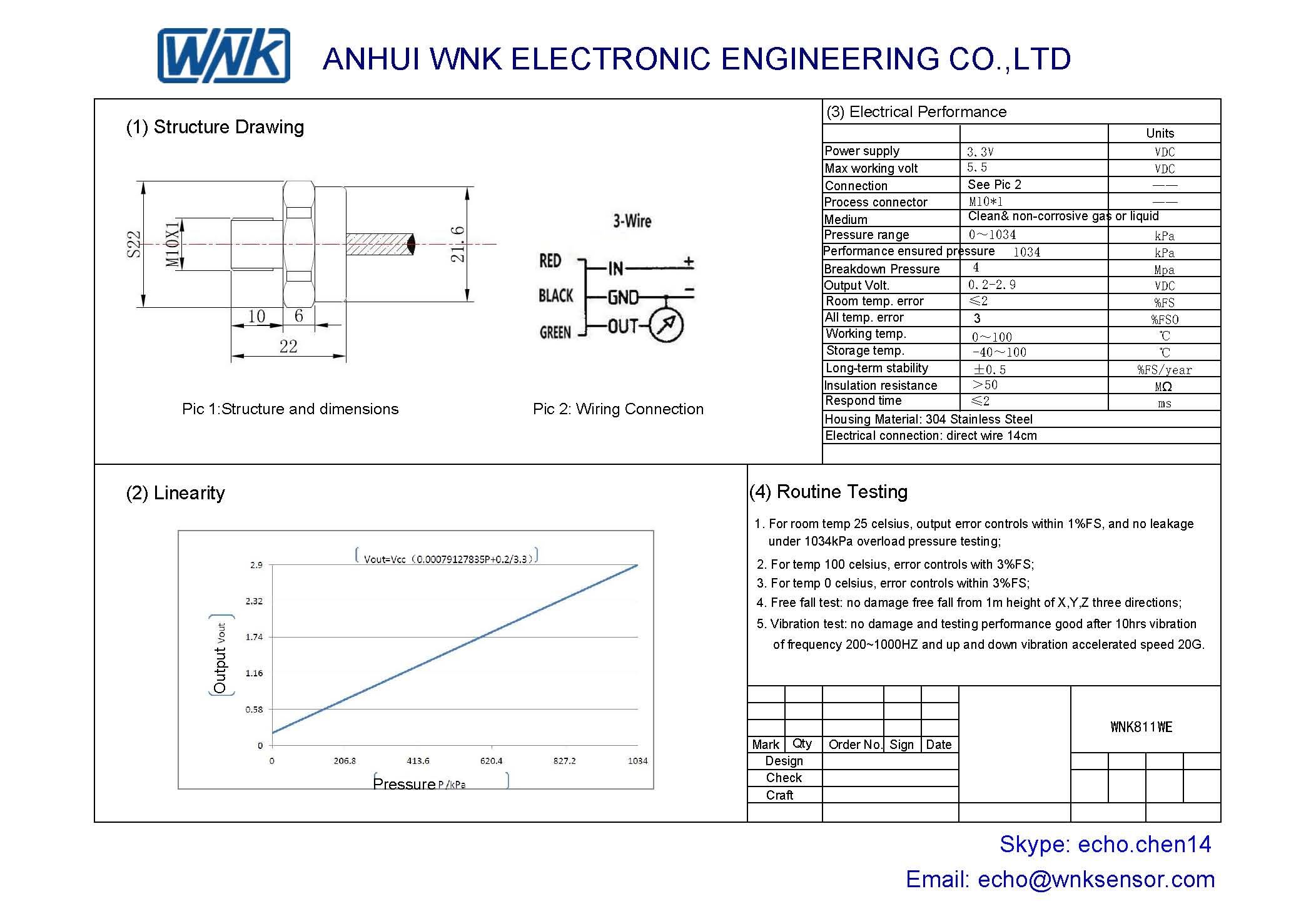

Technical Performance
		Units
Power supply	3.3V	VDC
Max working volt	5.5	VDC
Cable Connection	See Pic 2	--
Process connector	M10*1	--
Medium	Clean& non-corrosive gas or liquid
Pressure range	0~1034	kPa
Performance ensured pressure	1034	kPa
Breakdown Pressure	4	Mpa
Output Volt.	0.2-2.9	VDC
Room temp. error	≤2	%FS
All temp. error	3	%FSO
Working temp.	0~100	ºC
Storage temp.	-40~100	ºC
Long-term stability	±0.5	%FS/year
Insulation resistance	>50	MΩ
Respond time	≤2	ms
Housing Material: 304 Stainless Steel
Electrical connection: direct wire 14cm

Payment Terms

1. Port of Loading: Shanghai China
2. Samples Lead Time: 3-7 working days
3. Delivery Time: 7-15 working days after payment
4.Payment: T/T, Western Union, Paypal

After-sales service

We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not caused by manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.

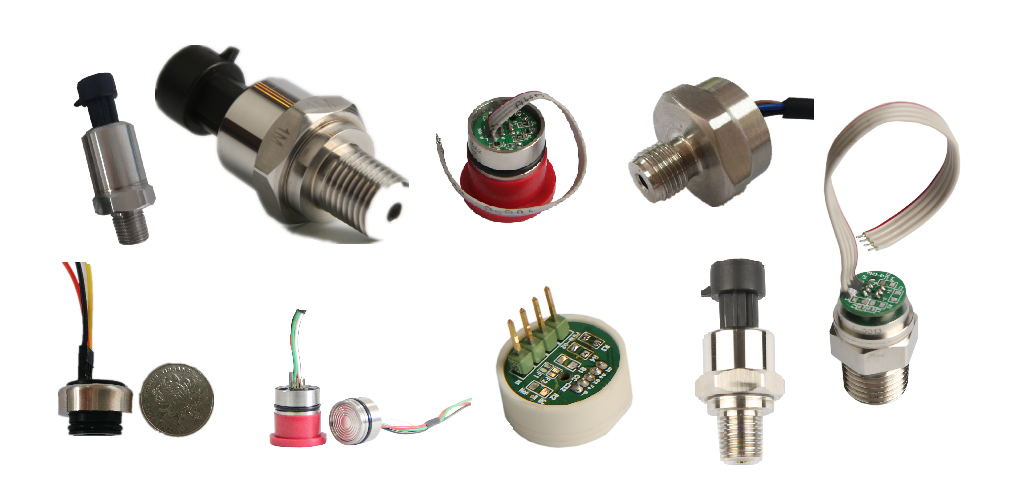

Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.

WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.

With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.

As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
