| Prod Model: |
CY-ECM-CT01-13 |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Operation: |
Easy |
| Accuracy: |
High |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description
Factory Price Wireless-Single-phase AC ON Energy Consumption Sensor
Main Feature:
. Divisible top, high precision and little wastage
.Nice appearance, small volume, little weight and easy to install
.Open and easy to install, working in hot-line without influence and disassembling the busbar
Typical application:
.Used in the energy consumption monitoring of mobile communication cabinet, small volume and easy to install, it could measure electric current, power , energy monitoring system
.Used in generalized measuring of strong maneuverability, system room or continued power system
Dimension:
Technical data:
Sort |
Project |
Basic measurement and energy |
Voltage |
Current |
Active power |
Reactive power |
Apparent power |
Power factor |
Forward and reverse direction power |
Forward and reverse direction idle power |
Frequency |
In -out |
Photoelectric energy pulse output |
Communication |
Zigbee communication(ModBus -RTU)
Or RS -485 communication(ModBus-RTU) |
Technical index:
Sort |
project |
parameter |
Environment condition |
Environment temperature |
-40 º C-+85 º C |
Atmosphere |
70Pa-106Kpa |
Humidity |
5%-95%(no condensation) |
Storage temperature |
--40 º C-+85 º C |
Power |
Scope |
85-265V AC,47-440HZ |
consumption |
≤0.8W |
|
(In rated) |
20A |
Current |
consumption |
<0.4VA@100A |
Accuracy index |
Overload ability |
5In(100A),continued working 20In ,allowed 1s |
Accuracy index |
Voltage |
±0.5% |
Current |
±0.5% |
Active power |
±1.0% |
Reactive power |
±1.0% |
Apparent power |
±1.0% |
Active energy |
GBT17215.321-2008,1 |
Reactive energy |
GBT17215.321-2008,2 |
Power factor |
±1.0% |
frequency |
±0.02Hz |
Communication |
Zigbee communication port |
1,ModBus-RTU,the distance of communication is 80m outdoor |
Antenna |
Internal |
RS-485port |
1,ModBus-RTU,4800bps-19200bps |
Communication port |
RJ45port |
Electric insulation ability |
Dielectric strength |
GB/T13729-2002,AC frequency voltage 2KV,time 1min |
Insulation resistance |
GB/T13729-2002,insulation resistance value≥100MΩ |
Surge voltage |
GB/T13729-2002,1.2/50US,5KV Standard lighting wave |
Shock |
Response:GB/T11287-2000,1:durability:GB/T11287-2000-1 |
Mechanical property |
Impact |
Response:GB/T11287-1993,1:durability:GB/T11287-1993-1 |
|
crash |
Parameter |
Electromagnetic compatibility |
Complete
Machine |
ESD noise immunity |
GB/T 17626.2-2008,3,Contact discharge:6KV;criterion B air discharge :8KV ;criterion B |
Electromagnetic field radiation noise immunity |
GB/T 17626.2-2006,3,10V/m,80%AM(1kHZ),80-2700MHZ;Criterion A |
DC frequency magnetic field noise immunity |
GB/T17626.8-2006,4 |
Re |
GB9254-1998,CLASS B (-6dB)@30MHZ-1GHZ |
Power |
Radio frequency field interaction condition noise immunity |
GB/T 17626.3-2008,3,10V,80%AM(1KHZ),80-2700MHZ;Criterion A |
Ce |
GB9254-1998,Class B (-6dB)@30MHz |
Electrical fast transient noise immunity |
GB/T17626.4-2008,3, ±2kv,5/50S,5Khz;criterion B |
Surge noise immunity |
GB/T17626.5-2008,x,difference module 6KV,2Ω,L-N(line to line) &common mode 6KV,12Ω,L-PE(line to shell),N-PE(line to shell)1.2/50-8/20US combination wave plus and minus 5times every time interval 1min; criterion B |
Voltage sags short interrupt and voltage changing noise immunity |
GB/T17626.11-2008,3,drop at 0%UT,time 10ms;drop at 0%UT,time 20ms;drop at70%UT,time500ms;drop at 40%UT,time 500ms;drop at 0%UT,time 5000ms;criterion B,B,B,B,C |
Fluctuations and Flicker |
GB/T17262.5-2007,Pst≤1,plt≤0.65,relative voltage changing dc≤3.3% maximum relative voltage changing dmax≤4%;3.3%the time of d(t) ≥3.3% is less than 500ms |
Harmonic |
GB/T17262.1-2012,50-2000Hz,Class A product requirements |
Impulse Current |
GB50689-2011,difference module 5KA(line to line)8/20US Impulse current, plus and minus 5 times ,every time interval 3 min ;Impulse current criterion |
RS-485 |
Radio frequency field interaction condition noise immunity |
GB/T 17626.6-2008,3,10V,80%AM(1KHZ),0.15-80MHZ;criterion A |
Electrical fast transient noise immunity |
GB/T 17626.4-2008,3, ±2KV,5/50ns,5KHZ;criterion B |
Surge noise immunity |
GB/T 17626.5-2008,X,difference module 1.5KV(line to line),15Ω+25Ω/line &common mode 4KV(pair or single line to shell),15Ω+25Ω/line, 10/700us combination wave, plus and minus 5, every time interval 1 min ,criterion B |
Method of application:

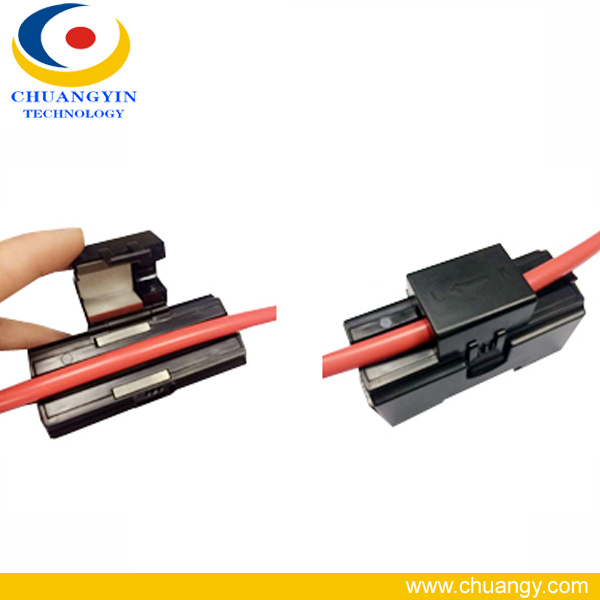

Depress cover entangle cable open cover of sensor
Common requirements:
.appearance demand: exact and clear brand, no obvious dirty thing on the sensor and the standard, length, colour , position of lead should conform to design
.Package and transmission:
.Storage :temperature of sensor is -40 ºC-85 ºC, Humidity is less than 95%(25 ºC)indoor .Besides, there is no harmful gas and other media which will lead to rusty result
