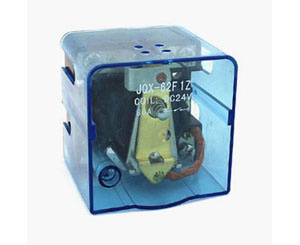

Factory Prices for The Jqx-62f Power Relay

Factory Prices for The Jqx-62f Power Relay
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: JQX-62F

Product Description

Features :

 Size (mm):20.5×27×33.4

Terminal layout:4Z
Contact capacity:3A 220VAC/3A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VAC


Features:

Contact Form:

2Z(2D,2H)

Contact Material:

Silver alloy

Initial Contact Resistance:

≤50MΩ

Contact Rating(Res. Load):

2Z:28VDC/300VAC/30A

Coil Voltage:

6 - 220V DC / 6 - 380V AC

Max. Switching Voltage:

28V DC / 250V AC

Max. Switching Current:

80A

Max. Switching Power:

DC2.0W/AC2.5VA

Initial Insulation Resistance:

≥500mΩ

Dielectric Strength:

Between coil contacts  ≥2,000V AC

Between open contacts  ≥1,500V AC

Operate Time (at nomi. Volt):

≤20/20ms

Release Time (at nomi. Volt):

≤20/20ms

Temperature:

-40º ~ +55º









ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
