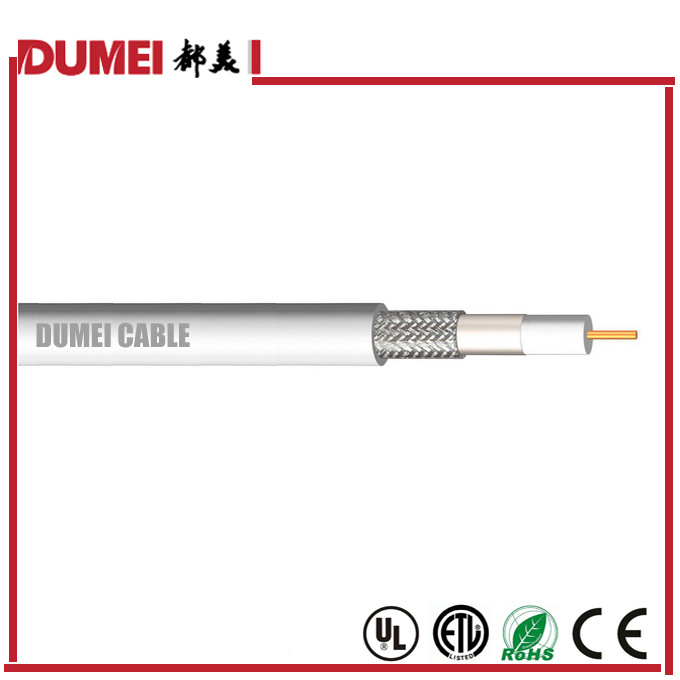

Factory RG6 CATV Coaxial Cable PVC 75 Ohm

Name: Factory RG6 CATV Coaxial Cable PVC 75 Ohm
Brand: all-electronics-online.com
SKU: 726967672
Availability: InStock
Rating: 4.4 (83 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	UL
Type:	RG6
Model:	RG6
Brand:	Dumei

Product Description

Construction Materials
Jacket Material	PVC
Center Conductor Material	Copper-clad steel
Dielectric Material	Foam PE
Inner Shield (Braid) Coverage	60%
Inner Shield (Braid) Gauge	34 AWG
Inner Shield (Braid) Material	Aluminum
Inner Shield (Tape) Material	Aluminum/Polymer/Aluminum (APA) bonded

Dimensions
Diameter Over Center Conductor,nominal	1.02 mm
Diameter Over Dielectric,nominal	4.57 mm
Diameter Over Inner Shield (Tape),nominal	4.75 mm
Diameter Over Jacket,nominal	6.9 mm

Electrical Specifications
Capacitance	53.1 pF/m
Characteristic Impedance	75 ohm
Characteristic Impedance Tolerance	±3 ohm
Nominal Velocity of Propagation (NVP)	85%

Electrical Performance
Frequency	Attenuation (dB/100 m)
5 MHz	1.9
55 MHz	5.25
83 MHz	6.4
85 MHz	6.46
187 MHz	9.35
204 MHz	9.84
211 MHz	10
250 MHz	10.82
300 MHz	11.64
350 MHz	12.63
400 MHz	13.61
450 MHz	14.43
500 MHz	15.29
550 MHz	16.08
600 MHz	16.73
750 MHz	18.54
865 MHz	20.01
1000 MHz	21.49
Attenuation listed represents maximum values at standard condition of 20 °C (68 °F)
