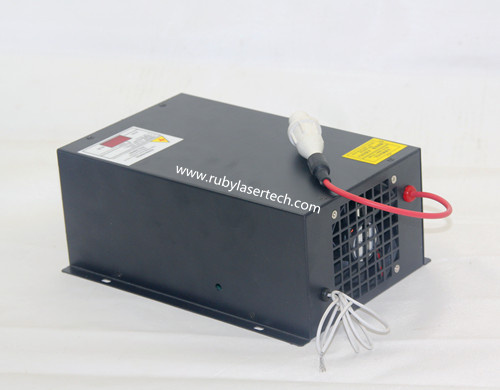

Factory Sell AC220/110V 0-5V/PWM Control Myjg100 100W CO2 Laser Power Supply for 6090/1390 Laser Engraving Machine
| Price: |
US $ 121-163/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MYJG-100 100W CO2 laser power supply |
| Input: |
110-220VAC |
| Laser Contral: |
0-5V or PWM |
| Wiring Connection: |
Terminalblock |
| Output Voltage: |
50kv |
| Output Current: |
30mA |
| Color: |
Black |
| Output Type: |
Triple |
| Warranty: |
1 Year |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
CE |
| Brand: |
Rubylasertech |
Product Description
1. Product Features:

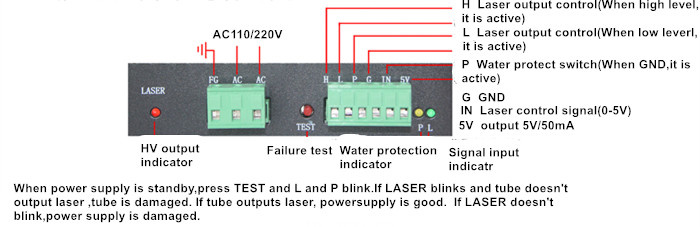

It has green color control signal terminal board
1. This laser power supply adopts zero current and half bridge soft switch circuit, it makes the power supply have high efficiency and quick response speed. Thus it is easy to match with CO2 laser tube made by any factories.

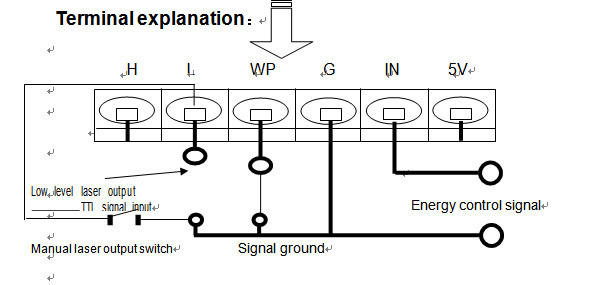

2. This laser power supply is easy to be controlled, it is suitable to High or Low level signal. The TTL level can control start or stop of laser output. While the power supply has emergency protection switch which can indicate water through and ventilation.
3. The laser output power can be adjusted by 0-5V analog signal or PWM signal.
4. This laser power supply has open cirsuit protection function. When protective earthing is good, the laser power supply can be in open circuit status during short time. This function can protect power supply when laser tube burst.
2. Aging test:
Each laser power supply must pass this test which is taken at 60 degree centigrade for 12 hours in full load status. And the power supply must start and stop at each 7 seconds for 500 times. In this way we can ensure the laser power supply is qulified.
3. Specification: | Item | MYJG-40 | MYJG-60 | MYJG-80 | MYJG-100 | MYJG-130 | MYJG-150 |
| | 30KV | 35KV | 45KV | 50KV | 50KV | 50KV |
| | 20mA | 23mA | 30mA | 30mA | 35mA | 38mA |
| Input AC Voltage | AC220V or AC110V |
| Input DC Voltage | DC 300V or DC150V |
| Input AC Frequency | 47-440Hz |
| Efficiency | 91% |
| Over Current Protection | 130% of Max. Current |
| Open Circuit Protection | Yes (For short time) |
| Cooling | Fan Cooling |
| Voltage Range of High Level Control | Not Less Than3V |
| Voltage Range of Low Level Control | Not More Than0.8V |
| Working Temperature | -30 - +65 Degree Centigrade |
| Humidity | 20-85%RH(No Dew) |
Withstand
Voltage | Input-Output | AC1500V/MinNot More Than10mA |
| Input-Shell | AC1500V/MinNot More Than10mA |
| Output-Shell | Connected |
| Insulation | Not Less Than 50MOHM(DC500V) |
| Leakage Current | Not Less Than 1mA(AC220V)Not More Than 0.5 mA(AC110V) |
| Shock Resistance | Amplitude: 0.5mm, Frequecy:10-55Hz, 3D Dretion:2 Hours |
| MTBF | Not Less Than30,000hours |
| Full Load 60 Degree Centigrade test | 12Hours |
| 7 Seconds Start/Stop Test | 500 Times |
Note
Power supply warranty:12 months.
Delivery time: 5-7 working days after first payment received for 50PCS purchase quantity.
Package:Carton and foam
Shipping method:DHL,TNT,air shipping or sea shipping which is depends on purchase quantity.
Payment method: T/T,PAYPAL,Western Union
Application:General type power supply and widely used on 40W-150W CO2 laser engraving machine.or cutting machine
4.Common problem on CO2 laser power supply
1. Q:High voltage sparking,
A: The high voltage connector is close to power supply's steel case.
2. Q:No laser output and fan doesn't run
A: Fuse is not connected.
3. Q: Press TEST button(Red),it outputs laser but main control terminal board is not be used to let tube output laser.
A: CO2 power supply's low voltage control section is damaged.
4.Q:Current is not be adjusted.
A: CO2 power supply's current control section is damaged.
5 Q:Fuse always be burned.
A: CO2 power supply's power diode is short circuited.
