| Prod Model: |
Queen Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1-20 kVA |
| Wide Input Range: |
Have |
| Frequency: |
High Frequency |
| Communciation Interface: |
RS232,RJ45 |
| Power Supply Type: |
Double Convertion |
| Color: |
Black |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description
Factory supplier big LCD display online ups for Bank System

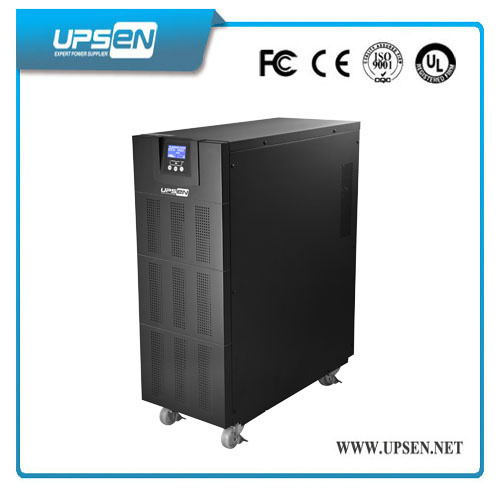

Model: High Frequency Online UPS Queen Star Series 1-20 Kva (1ph in / 1ph out) (3ph in / 1ph out)
Key Features:
1:Smart RS232 port
2:cold start directly
3:Equipped with Maintenance Bypass Switch
4:Smart RS232 and Intelligent slot interface
5:Superior performance from CPU control technology
6:Double Conversion Online UPS with IGBT and DSP Tech
7:EMC safety regulations to meet international requirements
8:Wide input voltage range with high frequency technology
9:Extra wide input voltage and frequency range make it adapt to severe power grid environment
10:with double-conversion online design, mains failure with no output interruption. Zero transfer time
11:Output frequency Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
Applications:
Home, Office, Computer, PC, Alarm System, Building Automation System BAS, weak electricity system integration, Bank System, etc.
Technical Specification
| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL |
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
| Input | Voltage | 115 - 300Vac |
| Frequency | 40-60Hz / 50-70Hz |
| Power factor | 0.99 |
| Output | Voltage | 220/230Vac(1±2%) |
| Frequency |
Synchronize with utility power(utility mode);
50 / 60Hz ± 0.2Hz(battery mode) |
On-load factor | 0.8 |
| Overload rating | 125% overload,1min |
| Battery | Type | Valve-control lead acid maintenance-free battery |
| Back up time |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
| Rated voltage | 36V | 72V | 96V |
| Transfer time | 0 |
| Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC |
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 |
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
Queen Star Series Q6K-20Kva | | | |
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
|
|
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load <2% | Line load <3% |
| Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40ºC |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
