| Prod Model: |
JSLpower |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
High-temperature |
| Structure: |
Pin Insulator |
| Material: |
HDPE |
| Type: |
Pin Type Insulator |
| Size Of Bearing Capacity: |
3000lbs |
| Color: |
Grey |
| Brand: |
Jslpower |
Product Description

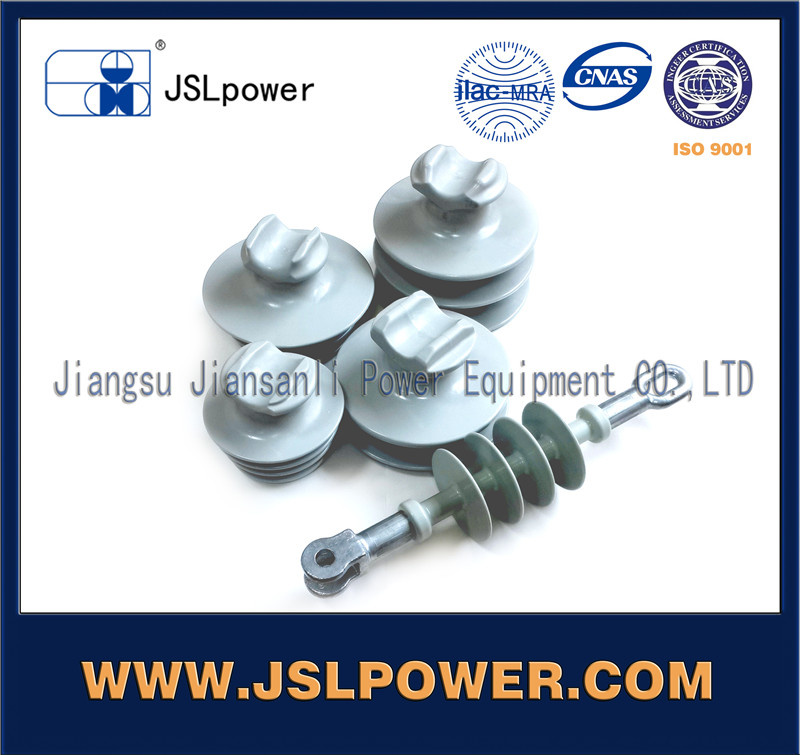

Factory Supply 15-35kV Pin Composite(HDPE) Insulator
1)ANSI C29 standard, ISO9001, test report
2)12Years' exporting & manufacture experience
3)Distributors in many countries
4)China manufacturer own factory
5)Low price
Factory Supply 15-35kV Pin Composite(HDPE) Insulator
(HDPE: It's a kind of high crystallinity, nonpolar thermoplastic resin;It has good heat resistance and cold resistance, good chemical stability, also has high rigidity and toughness, good mechanical strength;HDPE has the very good electrical performance, especially high insulation dielectric strength, make it very suitable for wire and cable and Can be reused.)
Product Description
Benefits:
·Electrically compatible with covered conductors -no stripping
·Resistant to impact damage, breakage and vandalism
·Excellent weather washing characteristics
·Interchangeable with porcelain insulators
·Excellent weatherability proven by 25 years of field experience
·Designed for use with hand wrapped ties or preshaped ties
·Light weight for easy handling
·Excellent for contaminated environments
HDPE pin insulator tie top 55-3 ANSI29

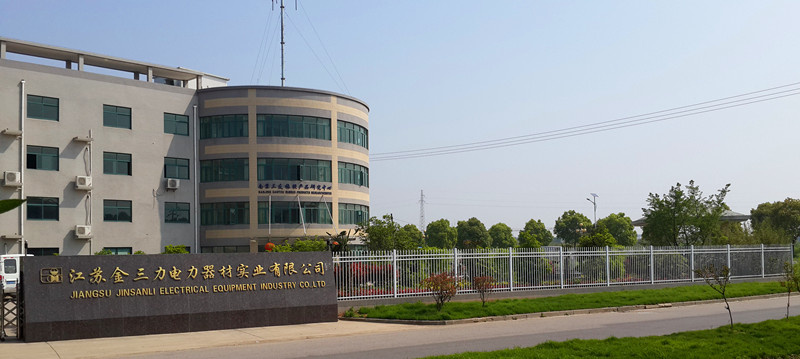

Jiangsu Jinsanli Power Equipment Industrial Co., Ltd.(Nanjing Sanyou Rubber Products Research Center)
Company ProfileJiangsu Jinsanli Power Equipment Industrial Co., Ltd. is a scientific and technological enterprise of Jiangsu Province engaging in research, development, manufacture, processing and sale of electric power fittings auxiliary rubber and plastic products and insulator and polymer products. Since its establishment, it has developed various rubber and plastic auxiliary products applicable to military, electrical engineering, smart power grids and hydraulic engineering fields. With excellent quality, products of the company are well received by various large and medium-sized enterprises. Technical personnel of the company has experience in taking refresher courses and learning manufacture and processing of rubber products in Japanese NOK company and has obtained technical grade certificates on rubber products manufacture and processing issued by Japan. The company mainly manufactures over 500KV super damping rubber spacer. Besides, through matching up with products of hardware fittings manufacturers of power industry, products of the company are widely applied to key electric power construction projects of China. Based on its existing production scale, the company expands rapidly through introducing lots of advanced equipment, which makes its production capacity can satisfy demand of various large-sized power enterprises on rubber dampers used for 500KV to 1000KV extra-high voltage transmission lines. With continuous improvement of technology, the company has manufactured insulator products used for 10KV to 220KV transmission lines and power transformation engineering and meeting ANSI standard by using advanced polymer technology. What's more, the company constantly improves product quality through technology innovation to standardize, refine, process and scientize the company, so that to further research, develop and manufacture more high-quality and rational-price products to meet demand of domestic and foreign enterprises | Insulator Data:JSLIP-35F2 |

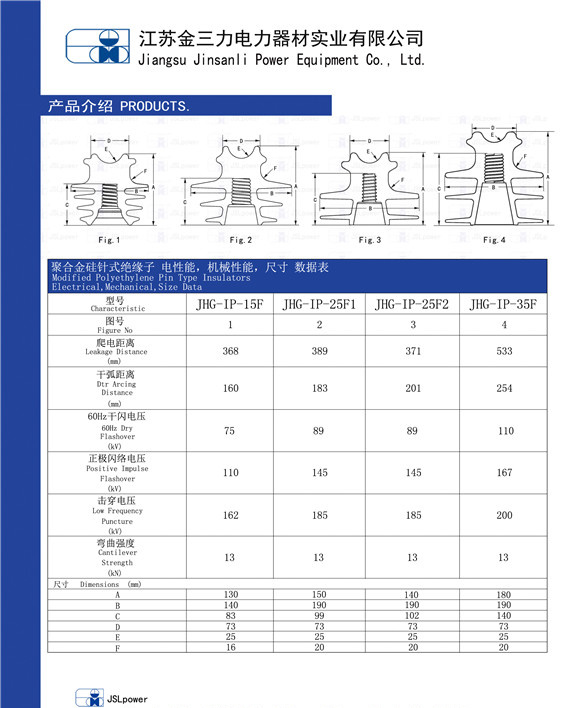

| Neck Size/Style | F |
| Leakage Distance(in) | 20 |
| Dry Arcing Distance(in) | 10 |
| Pin Hole Diameter | 1-3/8 |
| 60HZ Dry Flashover(KV) | 110 |
| Positive impulse Flashover(KV) | 167 |
| Low Frequency Puncture(KV) | 200 |
| Cantilever Strength(lbs) | 3000 |
| Compared with standard data analysis table |
| Application | Leakage
Distance (in) | Dry Arcing
Distance (in) | 60Hz Dry
Flashover (kV) | Positive Impulse
Flashover (kV) | Low Frequency
Puncture (kV) | Cantilever
Strength (lbs) |
| ANSI CLASS 55-6 | 15 | 8 | 100 | 150 | 135 | 3000 |
| JSLIP-35F2 | 20 | 10 | 110 | 167 | 200 | 3000 |

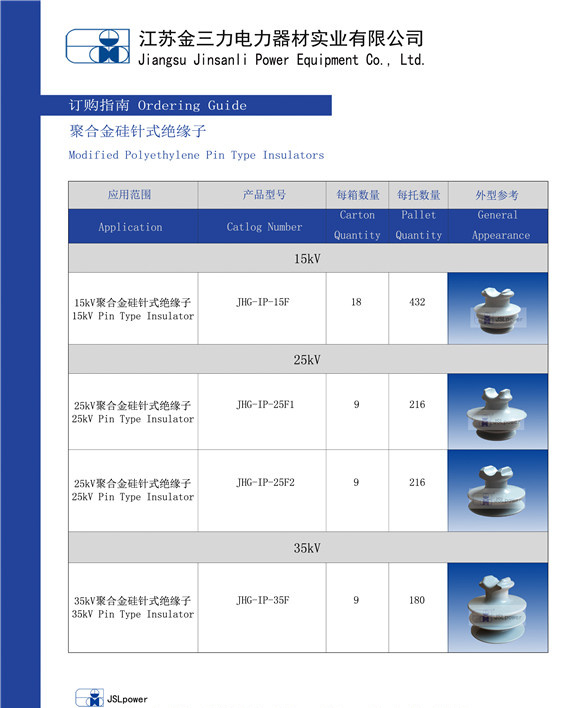

| Ordering Guide: | | | | |
| Application | Catlog
number | Carton
Quantity | Pallet
Quantity |
| 35KV F Neck Tie Top: ANSI Class 55-6 1-3/8"Pin | JHG-IP-35F | 9 | 180 |
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd., specialized in Insulators, our company located in Nanjing, Jiangsu province, welcome to contact us for details!
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
