Factory Supply Dry-Type Earthing Transformer

Name: Factory Supply Dry-Type Earthing Transformer
Brand: all-electronics-online.com
SKU: 707875845
Availability: InStock
Rating: 4.8 (144 reviews)

Price:	US $ 5000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Transformer
Phase:	Three
Application:	Rectifier
Coil:	Core-type Transformer
Winding Type:	Multi-winding Transformer
Cooling Method:	Dry-type Transformer
Brand:	Refine
Certification:	SGS

Product Description

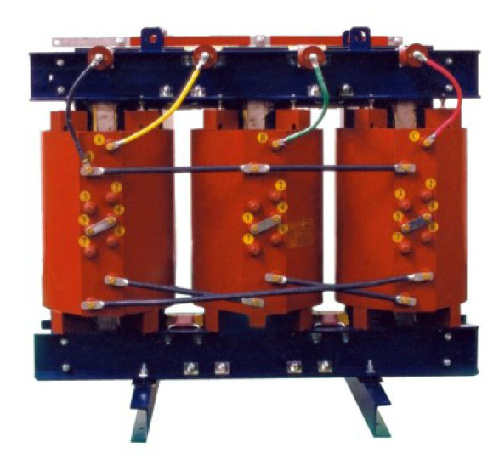

-DKSC Dry-type Earthing Transformer

-Standard: GB/T10228, GB10229, IEC289

-Vector group: ZN, ZNynl or ZNynll

-Rated H. V: 10 (11, 10.5, 6.3, 6, 3.15, 35) KV

-Rated L. V: 0.4KV

-Insulation class: L175AC35 / L160AC25, LI170AC85

Type	Sn	Zo	Lon (Zh)	lot 10s	Po	PK(75 C)	Lo	Uk	LPA(AN)	GT
Type	KVA	%	A	A	W	W	%	%	dB	kg
DKSC-100/10.5	100	2.5	17	300	410	1950	2.0	2.5	50	630
DKSC-200/10.5	200	2.5	34.6	500	660	3300	2.0	2.5	53	980
DKSC-315/10.5	315	2.5	52	750	950	4700	1.6	2.5	55	1050
DKSC-400/10.5	400	2.5	69	1000	1050	5440	1.6	2.5	55	1270
DKSC-500/10.5	500	2.5	87	1250	1260	6630	1.6	2.5	57	1350
DKSC-630/10.5	630	2.5	109	1500	1460	7750	1.6	2.5	57	1600
DKSC-160/10.5	160/80	2.5	27.7	400	580	1150	2.0	4.0	50	870
DKSC-200/10.5	200/80	2.5	34.6	500	660	1150	2.0	4.0	53	1150
DKSC-315/10.5	315/160	2.2	52	750	950	1850	1.6	4.0	55	1250
DKSC-315/10.5	315/100	2.5	52	750	950	1310	1.6	2.8	55	1230
DKSC-315/6.5	315/50	3.4	86.6	1250	950	800	1.6	2.0	55	1170
DKSC-400/10.5	400/200	2.0	69.3	1000	1060	2200	1.6	4.0	55	1670
DKSC-400/10.5	400/250	2.5	69.3	1000	1060	2610	1.6	6.0	55	1750
DKSC-400/10.5	400/400	1.5	69.3	1000	1060	3670	1.6	6.0	55	2150
DKSC-500/10.5	500/250	2.5	86.6	1200	1260	2620	1.6	4.0	57	1920
DKSC-630/10.5	630/160	2.5	109	1600	1470	1880	1.6	2.5	57	2050
DKSC-630/10.5	630/250	2.5	109	1600	1470	2620	1.6	4.0	57	2090
DKSC-1000/38.5	1000	4.0	49.5	700	1950	12700	1.2	4.0	60	3200
DKSC-2000/38.5	2000	5.0	99	1400	3650	22310	1.2	5.0	61	5250
