Factory Supply Dumbbell Type Sic Heating Element for Kiln & Furnace with Long Service Life
| Price: |
US $ 5/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SiC |
| Color: |
Gray |
| Power Source: |
Electric |
| Model Number: |
Rod Heating Element |
| Brand Name: |
Shibo |
| Dimension(L*W*H): |
Custom Size |
| Name: |
Sic Heating Element |
| Structure Material: |
Metal Material |
| Application: |
Heater |
Product Description

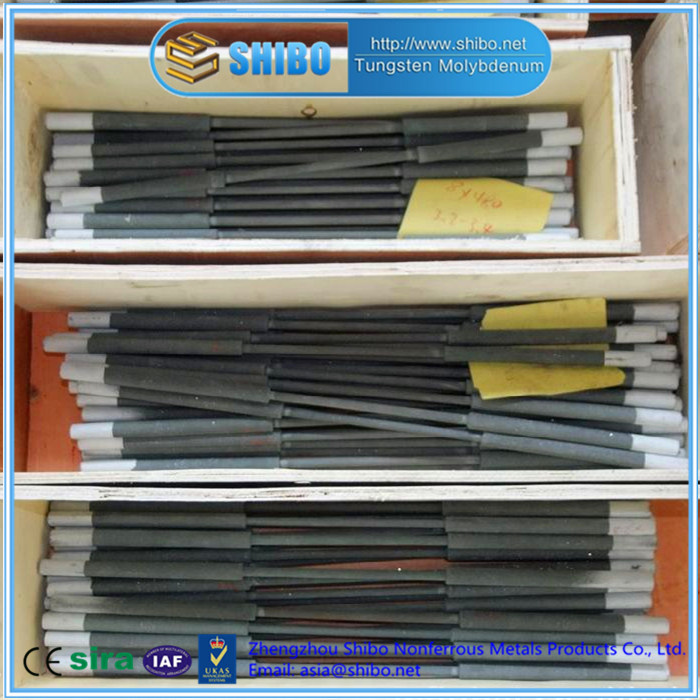

Dumbbell Type SiC Heating Element for Kiln & Furnace
SiC heating elements are usually used as high temperature furnace heaters or kiln heaters. Working temperature is 600°C-1500°C. SiC heating elements are non-metal electric heating element made from SiC as its main raw material.ApplicationsSiC heating elements are extensively used in the fields of metallurgy, ceramics, glass, machinery, analysis test, semiconductor, science & research and so on.AdvantageIt has some specific properties, such as low expansion coefficient, little deformation, stable chemical property, long service life, easy installation and maintenance, etc. ServiceOur prices are quite competitive, and since we have large quantity in stock. We can provide a very fast delivery.Feature 1. Withstands as high as 1500°C (surface temperature)2. Generate high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire.3. High strength and excellent shock resistance.4. Heat source is free of noise and air pollution.When you inquiry, Please inform usd ---- Outer diameter (OD) l ---- Length of Hot zone (HZ)
m ---- Cold end length(CZ)L ---- Length of Overall (OL)| Diameter (OD, mm) | Hot zone (HZ, mm) | Cold zone (CZ, mm) | Overall length (OL, mm) | Range of resistance (ohms) |
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
About UsWe're professional manufacturer of molybdenum and tungsten products, MoSi2 and SiC heating element, laboratory furnace. Our products are exported to USA, Europe, Middle East and Southeast Asia, etc. We're a factory with ISO quality system certification. We can produce as per customer's request and provide products with good quality and best price!
Our products include: | Molybdenum Product | Molybdenum Sheet/Plate/Rod/Bar/Electrode/Wire |
| Molybdenum Crucible/Tube/Boat/Disc/Nut |
| Molybdenum Special Shape Product |
| Tungsten Product | Tungsten Sheet/Plate/Rod/Bar/Wire |
| Tungsten Crucible/Tungsten heat shield |
| Tungsten Special Shape Product |
| Alloy Product | TZM Alloy/Mo-La Alloy |
| Tungsten Copper Alloy |
| MoSi2 heating element | U, L, W, Special shape |
| SiC heating element | U, W, ED, Dumbbell, SC, SCR shape |
| Laboratory furnace | Muffle furnace, Tube furnace
Atmosphere furnace, Vacuum Furnace |
| Accessories | Holders, Straps, Alumina tube |
Why choose Shibo?1. More than 20 years' manufacturing experience, leading factory2. Reasonable factory direct wholesale prices3. Steady and top quality, timely delivery, reliable after-sale service

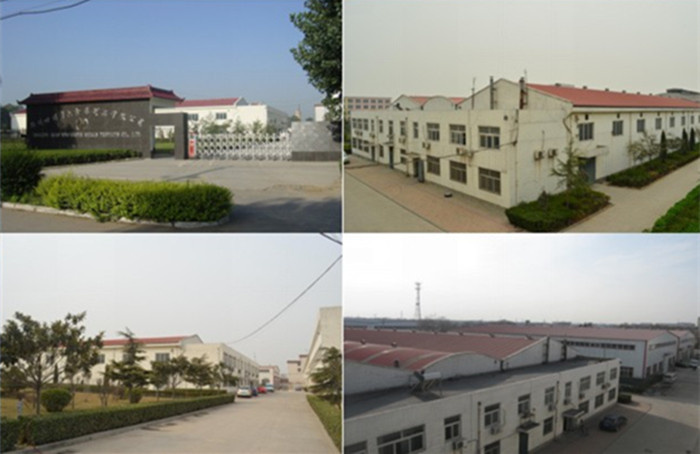

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.
Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.
Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.
Zhengzhou Shibo values product quality and keeps pursuing excellent quality. Holding the concept of "Creating the value for customers and seeking for development with mutual benefit", Zhengzhou Shibo will sincerely serve the customers at home and abroad with quality products for a better future.
We sincerely welcome all the friends at home and abroad to visit our company.
