| Prod Model: |
GS-LFD3015 |
| Power: |
1000 Watt |
| Drive: |
Double Drive |
| Control: |
CNC |
| Z Axle Stroke: |
150mm |
| Max. Cutting Speed: |
40m/Min |
| Max. Positioning Speed: |
80m/Min |
| Laser Wavelength: |
1070nm |
| Cooling: |
Water Cooling |
Product Description
Factory supply fiber laser cutting machine for metallurgical equipment, elevatorsMachine introduction
Fiber laser cutting machine adopts IPG fiber laser device which has international advanced laser technology. With Raytools brand laser cutting head. Equipped with efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.
Products
Parameters of GS-LFD3015 laser cutter| Model | GS-LFD3015(Dual Drive) |
| Output power of laser source | 2000W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max. cutting speed | 40m/min |
| Max. positioning speed | 80m/min |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling | water cooling |
| Laser wavelength | 1070nm |
| Cutting gap | 0.1-0.3mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-12mm |
| Drive model | Imported servo motor |
| Voltage | 380V,50/60Hz |
| Temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Wok platform max bearing | 600Kgs |
| Complete System Coverage | 4500x2700mm |
| Total protection level of power supply | IP54 |
Raytools Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
1. non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
2. Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.

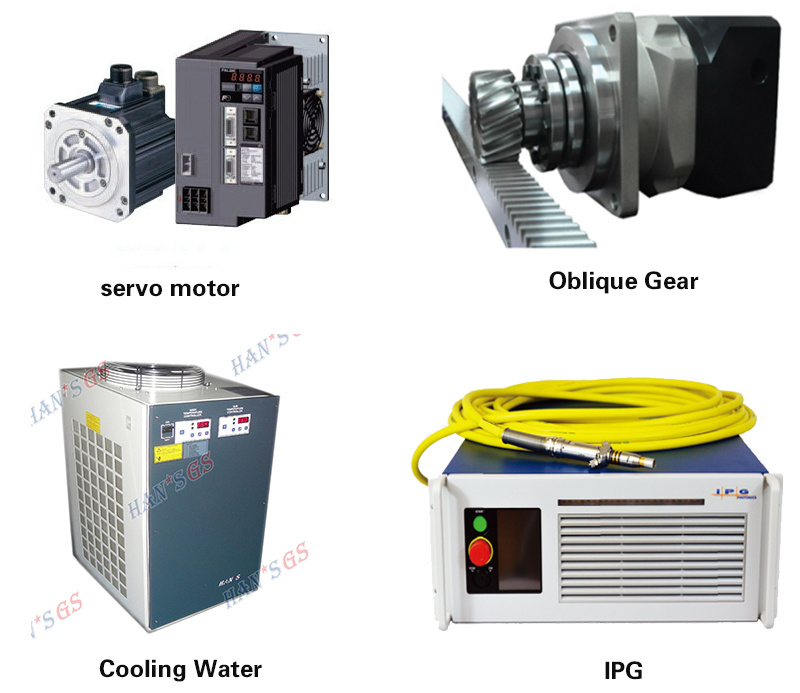

3. The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.Detailed Images
Industry Sectors for Fibre Laser Cutting Machine use:
1.kitchen utensils
2.Automotive
3.Aerospace
4.Aviation
5.Marine Engineering
6.General Manufacturing
Cutting Sample
About our company
Hans Goldensky Laser System Co., Ltd. is one of the four manufacturing base of Han's Laser Technology Industry Group Co., Ltd.
Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
