Factory Whole Sale Square Synchronous Motor for Oven
| Price: |
US $ 0.6-1.5/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
KXTYZ-1 |
| Place Of Origin: |
China (Mainland) |
| Scope Of Application: |
Home Appliances |
| Type: |
Synchronous Motor |
| Frequency: |
50-60Hz |
| AC Voltage: |
110V or 240V |
| A Of Size: |
12-30mm |
| Shaft Dia: |
4-5mm |
| Volt: |
10-240V |
| Power: |
10-50W |
| Speed: |
2000-5000rpm |
| Application: |
Car |
| Operating Speed: |
Low Speed |
| Operation Mode: |
Electric Motor |
| Magnetic Structure: |
Permanent Magnet |
| Structure: |
Rotating Pole Type (',Armature Fixed) |
| Number Of Poles: |
Single-Phase |
| Ventilation: |
Closed |
| Brand: |
Ritscher |
Product Description
Product Description

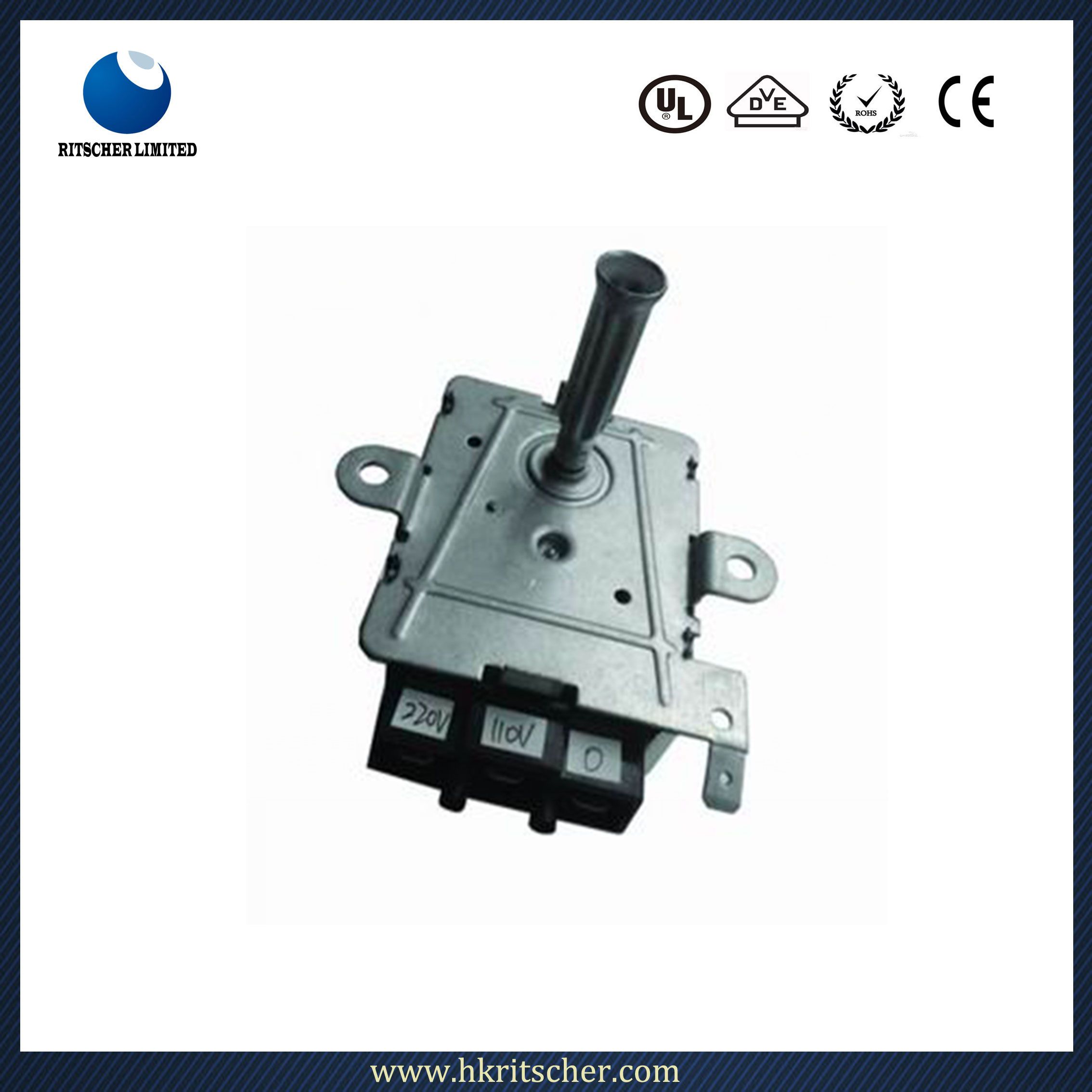

factory whole sale square synchronous motor for oven
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
| Specification: | | | | | | |
| Model | M1302 | | | | | |
| Power frequency | 50Hz/60Hz | | | | | |
| Operating voltage | 110V~120V 220V~240V | | | | | |
| Operating temperature | -10ºC~+125ºC | | | | | |
| Input power | ≤4W | | | | | |
| Output speed | 1.5~5 RPM | | | | | |
| Output torque | 1600mN.m(At 2RPM 20ºC) | | | | | |
| Insulation resistance | ≥100MΩ | | | | | |
| Insulation strength | 1500V/1min. | | | | | |
| Insulation class | H | | | | | |
| Temperature rise | ≤60K | | | | | |
| Rotation | CW/CCW | | | | | |
| Applications: can be used in the oven, barbecue fork rotator, barbecue grills, popcorn machines, etc. |
ABOUT USRitscher group was established in 2006.we always focus on micro-motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province.It has 50,000 square meters plants and more than 500 employees, annual output is 5 million pcs and has 10 million pcs annual producing capacity.After years development,we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development,our products is enlarged to BLDC motors ,capacitor motors ,synchronous motors,stepping motors,servo motors, and PMDC motors.Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.
To design the lastest technology motors and meet our customers requirments,we have the very capable R&D team,to ensure our products quality ,we have very strict manage system for our production department & QC department,to make our cost lower,we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland,we set up branch office in Australia since 2017 with exprienced consultant to support the business ,which will bring more customers to get know of us.
We will keep doing our job,move forward step by step to make our business area wider and brighter.(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any change
Ritscher group was established in 2006. We always focus on micro-motors for household and industrial electrical appliance. Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province. It has 50, 000 square meters plants and more than 500 employees, annual output is 5 million PCS and has 10 million PCS annual producing capacity. After years development, we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development, our products is enlarged to BLDC motors, capacitor motors, synchronous motors, stepping motors, servo motors, and PMDC motors. Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators, ovens, air filter, massage machines and many other equipments.
To design the latest technology motors and meet our customers requirments, we have the very capable R&D team, to ensure our products quality, we have very strict manage system for our production department & QC department, to make our cost lower, we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland, we set up branch office in Australia since 2017 with exprienced consultant to support the business, which will bring more customers to get know of us.
We will keep doing our job, move forward step by step to make our business area wider and brighter.
