| Prod Model: |
EP1000 series |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Input Voltage: |
90 - 280VAC or 170-280VAC |
| Capacity: |
100va/2000va |
| Charger: |
10A/20A |
| Output Wave: |
Modified Sine Wave |
| Rear Panel: |
2PCS Outlets |
| DC Voltage: |
12V/24VDC |
| Country Of Origin: |
China |
| Display: |
LCD/LED |
| Phase: |
Single |
| Power Source: |
Electric Power |
Product Description

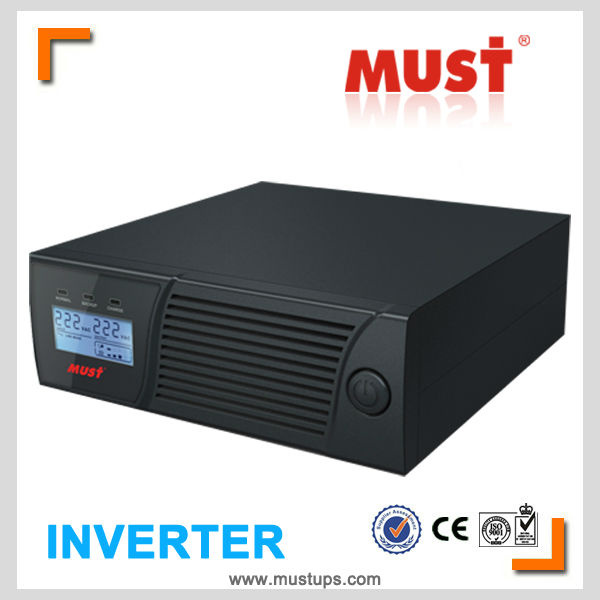

Factory wholesaler 24v power inverterMain Features:
Charge current 10A/20A adjustable.

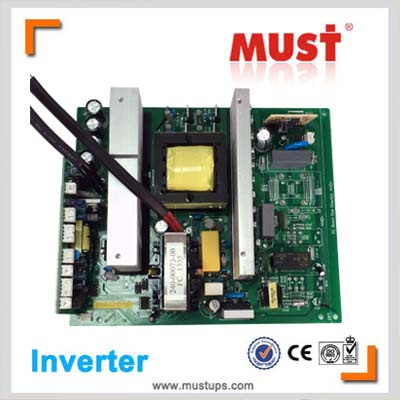

Double layers PCB board.
Compact size for convenient use.
Three-steps intelligent charge controller.
With Battery Reverse Protection Function (Optional)
Home use, for DVD, TV, Lights, and Fans.
With battery cable 10AWG 60cm.
Competitive Advantage:
EP1100 720W 1440W modifed sine wave inverter applied to TV, stereos, laptop and desktop computers and other home appliance. It will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly
Technical Specification: | MODEL | EP11-1200 | EP11-2400 |
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT | Rated Power | 1200VA/720W | 2400VA/1440W |
| Waveform | Modifided Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 50Hz/60Hz +/-0.5 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Power Factor | 0.6 |
| Typical Transfer Time | Typical 15~20ms 40ms max |
| AC INPUT | Voltage | 230VAC |
| Selectable Voltage Range | Narrow | 170~280VAC |
| Wide | 90~280VAC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC | 21.0VDC |
| Low Battery Alarm | 10.5VDC+/-0.3V | 21.0VDC+/-0.3V |
| Low Battery Cutoff | 10.0VDC+/-0.3V | 20.0VDC+/-0.3V |
| High Voltage Alarm | 16.0VDC+/-0.3V | 32.0VDC+/-0.3V |
| High Battery Voltage Recover | 15.0VDC+/-0.3V | 30.0VDC+/-0.3V |
| CHARGER | Charger Voltage (Vbat<12.5V) | 14.4VDC+/-0.4V | 28.8VDC+/-0.4V |
| Charger Voltage (Vbat>12.5V) | 13.7VDC+/-0.2V | 27.4VDC+/-0.2V |
| Charging Current 10A | 10A±2A |
| Charging Current 20A | 20A±2A |
| Overcharge Protection S.D. | 16VDC ±0.4A | 32VDC ±0.8A |
BYPASS
& PROTECTION | Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE |
| Bypass Fuse Rating | 10A |
| Max Bypass Current | 10Amp |
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 253*267*90mm |
| Net Weight (kg) | 2.3 | 2.5 |
| Shipping Dimensions(W*H*D) | 319*328*123mm |
| Shipping Weight (kg) | 2.9 | 3.1 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
| Loading(20GP/40GP/40HQ) | 1800pcs / 3600pcs / 4200pcs |

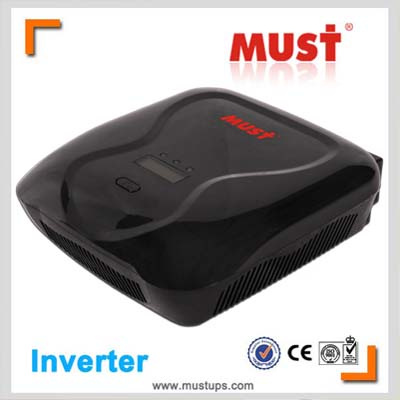

Porduct pictures:
Packing & shipping :
1. Package: Carton Box for packaging or Wooden Box advised for Samples to protect in transportations. Package designed by Clients is welcomed.
2. Shipping: DHL, FEDEX, UPS, EMS, Air Way and By Sea.
3. Payment: T/T and Western Union
4. Welcome to place your Sample Order to test first.
Sample Orders are welcomed
OEM Service Available
Warranty: 1 Year
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship, but specially expecting any defects resulting from normal wear and tear of improper use of the products.
Lead time:
a) Sample orders (1-2 pcs) will be delivered from our factory within 10 working days
b) Bulk orders will be delivered from our factory within 35 working days
After-sale Service: 24-Hour Hot Line for Consultancy and Technical Support
Company Information:SHENZHEN MUST ENERGY TECHNOLOGY CO.,LTD was established in 1998, with the headquarter in Hong Kong, which is a professional hi-tech enterprise specializing in research, developing and manufacturing of Uninterruptible Power Supply (UPS), power inverter and solar power inverter.
Our comprehensive product lines including: offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar charge controller. Most products are certified by CE, SONCAP and ISO9001. We are one of the authorized suppliers for China Government.
MUST Energy own an excellent R&D team formed by over 30 engineers, with totally 10,000 square meters in-house manufacturing facilities in Shenzhen City, Guangdong, China. Our main markets are Africa, Ukraine, Italy, Kenya, Nigeria, Pakistan etc.
