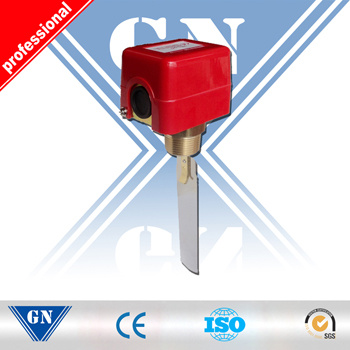

Fan Air Flow Switch with

Prod Model:	cx
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	World-Class
Maintenance:	Less and Easy
Technology:	Advanced
Installation:	Easy
Exported:	More 80 Countries
Standard:	Standard
Application:	Garage

Product Description

Principle
Based on the principle of thermal theory, there are two resistances in the closed probe. One resistance was heated and regarded as detected resistance, the other one was heated and regarded as standard resistance. When the medium is flowing, the heat on the heated resistance will be taken away and the resistances' value will be changed. The differential resistances value is the basis of determining the flow velocity.
Feature
1, No movable parts. 2, Maintenance free. 3, Easy installation. 4, Suitable for variable diameter demand. 5, Switching value can be adjusted continuously. 6, Extremely low pressure loss. 7, Compact structure. 8, LED indicator display flow trend and switch state.

Technical data
Set range: 1…150cm/s( water), 3…300cm/s(oil), 20…2000cm/s(air)
Output: PNP, NPN, Relay, NO+NC (SPDT)
Power supply: 24V± 20%DC or 230V± 15%AC
Switching Current: Max. 400mA(PNP or NPN type ), Max. 4A( Relay type )
Unload current: Max. 80mA
Flow indicator: LED (6)
Set type: Potentiometer set
Proof Pressure range: 100bar
Temperature gradient: 4° C/s
Response time: 1--13s, standard is 2s
Initialization time: 8s
Electrical protection: Reversed-phase, short circuit, overload protection
Protection class: IP67
Medium temperature: -20--80° C
Environment temperature: -20--80° C
Storage temperature: -20--100° C
Connection: M12 connector /2m cable (option)
Material: Probe is stainless steel. Housing is PBT.
Weight: 0.4kg
