Fashionable Mini GPS Tracker with GPS +Lbs+WiFi (A9)
| Price: |
US $ 24-25/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Position: |
GPS+WiFi+Lbs |
| APP System: |
Support Android 2.3 and Above, Ios5.0 and Above |
| Bluetooth: |
3.0 |
| Battery: |
500mAh |
| Test And Certification: |
Can Pass 3c and Ce Certification |
| Language: |
Simple Chinese, English |
| Color: |
Green, White, Red |
| Size: |
38X38X12mm |
| Historical Route: |
Can Check History of Three Months |
| Call Function: |
Two-Way Communication/Remote Pickup |
Product Description
Main Features:1. Delicate appearance pendant.
2. GPS + WIFI + LBS multimode precise.
3. positioning, static dormancy save.
4. electricity design, real-time positioning, intelligent monitoring.

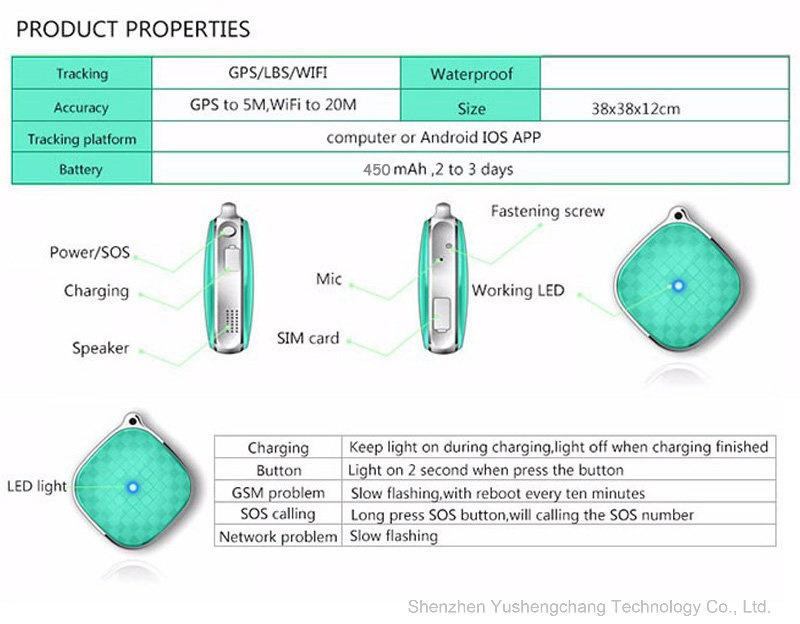

| 1. Structure |
| Structure | Item | Specification |
| ID style | Delicate and mini |
| Product size | 38X38X12mm |
| Colors | Green ,White , Red |
| Button | One button(Power button/SOS button) |
| Screen | No |
| gps antenna | High sensitivity ceramic active antenna |
| GSM antenna | FPC antenna |
| Battery | 500mAh |
| SIM card | One |
| G-sensor | Support |
| I/O port | USB charging |
| 2. Hardware |
| Hardware | Chipset | MTK 2503 |
| GPS chip | MTK3327 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channels | 22 channels |
| GPS receiving sensitivity of chip level | Track:-165dBm,Catch:-148dBm |
| GPS Positioning accuracy | less than 5m |
| LBS Positioning accuracy | 50-200m |
| Minimum standby current | <0.5 mA |
| The average standby current | <2.5 mA |
| The average working current | About 55mA |
| Working Temp. | -20~70ºC |
| Operating humidity | 5% to 95% noncondensing |
| Test and Certification | Can pass 3C and CE certification |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency PIFA antenna |
| Bluetooth | Bluetooth 3.0(Normal Closed) |
| G-sensor | Support |
| MIC | Support |

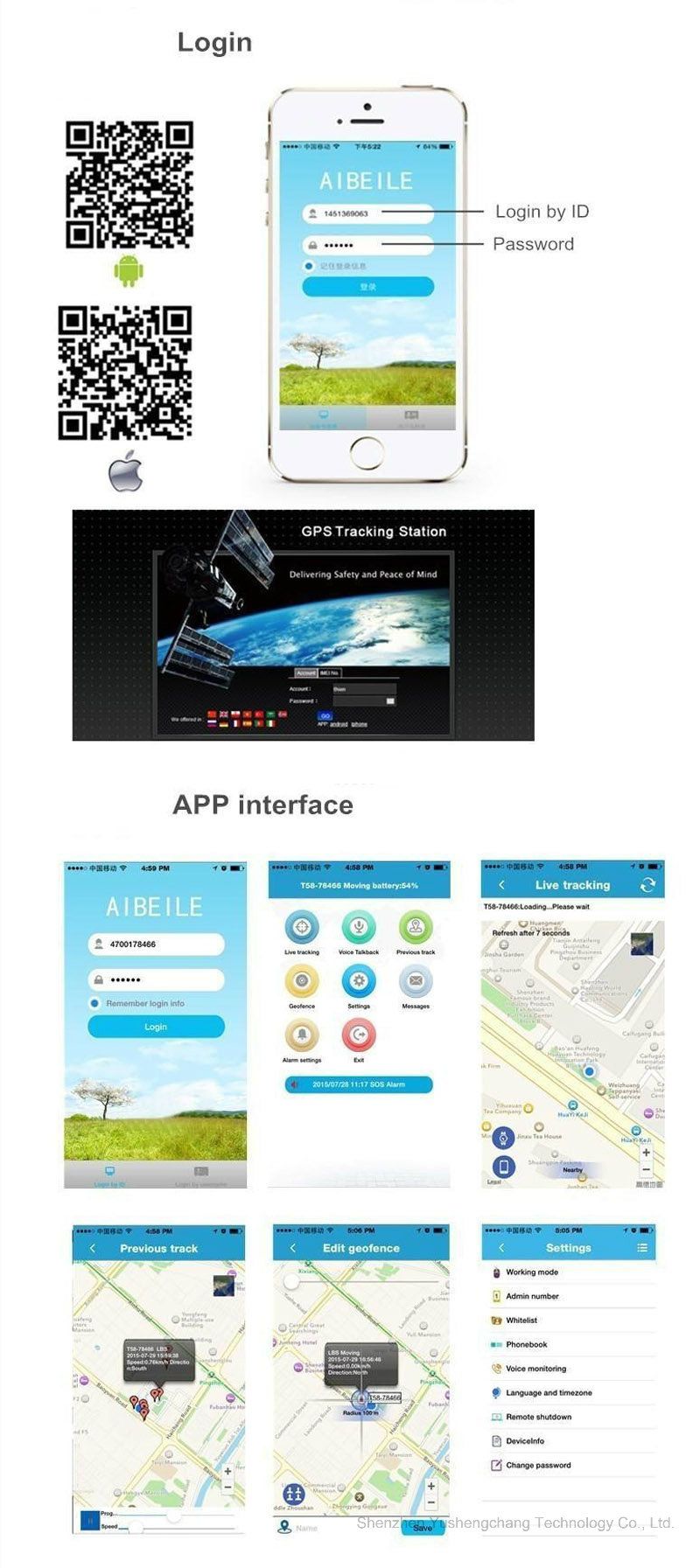

| 3.Software |
| Software | OS | Support Android 2.3 and above ,IOS5.0 and above |
| Call function | Two-way communication/remote pickup |
| Language | Simple Chinese,English |
| GSM+GPRS+GPS | GPS+WIFI+LBS multimode positioning |
| Support AGPS | Cold start 26 seconds positioning |
| Call Function | SOS call ,Voice monitoring ,Whitelist no disturbing function |
| Power management | Ultra-low power consumption of power management,Smart Stay |
| A key emergency | A key to SOS emergency function, automatic dialing |
| Intelligent fence | Outside the range set can be automatic alarm |
| Historical route | Can check history of three months |
| Wireless upgrading | Remote software upgrade, remote debugging maintenance, remote setting parameters |
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*How can I get a sampleto check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
*When can I get the prices?
Within 12 hours after we received your inquiries.If any questions or comments, please kindly feel free to contact us.
