Fast Charging Data 2.0 USB Cable
| Price: |
US $ 0.3-0.4pcs |
| Min Order: |
1000pcs |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
usb cable |
| Cable Use For: |
Printer |
| Cable Conductor: |
28AWG Bare Copper |
| Cable Material: |
PVC and Copper |
| Cable Length: |
as Customer's Request |
| Cable Color: |
Black ,Blue Color |
| Cable Warranty: |
12 Months |
| Cable Packing: |
Poly Bag,Blister ,Gift Box |
| Cable Certification: |
Ce,RoHS |
| Application: |
Mobile Phone |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
4Pin |
| Feature: |
Waterproof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Power Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Product Description

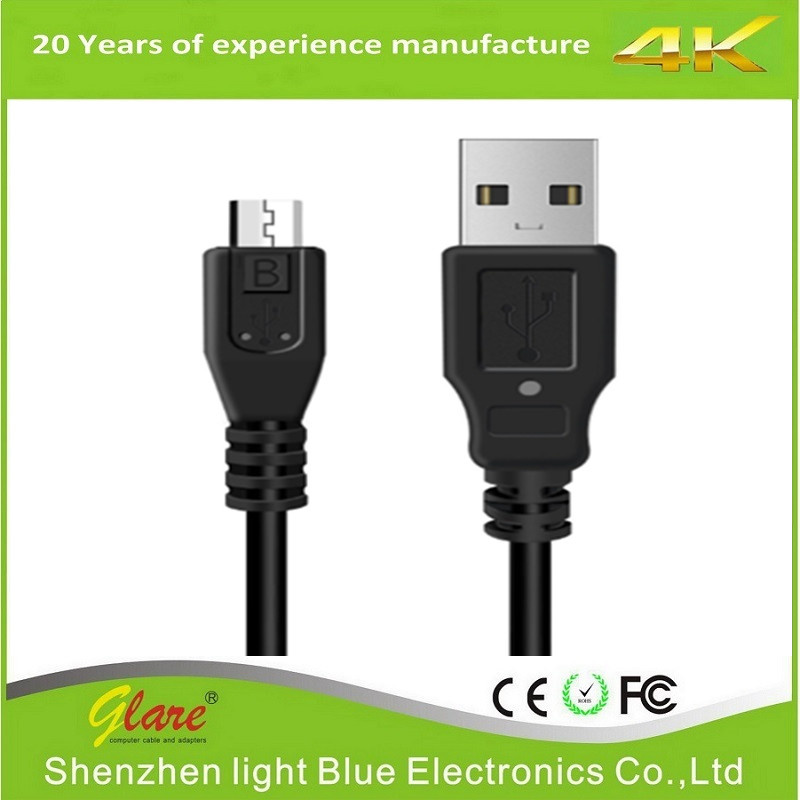

Wholesale usb AM TO Micro usb data cable Fast Charging Data 2.0 USB Cable Specification:| Item name | USB 2.0 Cable |
| Connector | AM,AF,BM,Micro BM,Mini B,Micro 5pin ,Nickel Plated or Gold Plated |
| connector finish | Gold or Nickel-plated connector |
| Color | Blue or black color available |
| Length | 1-5M available |
| Data speed | USB2.0 super speed of up to 480Bps supported |
| Compatibility | backward compatible with USB1.1&2.0 |
| Outer diameter | 3.0mm-6.0mm |
| Lines | standard 9 lines |
| Conductor | bare copper or tined-copper |
| Ferrite cores | Optional |
USD3.0&USB 2.0 | Features | USB3.0 | USB2.0 |
| Data Rate | SuperSpeed (5.0Gbps) additional | low-Speed (1.5Mbps)
full-Speed (12Mbps)
high-Speed (480Mbps) |
| Data Signal | SS OUT Differential Signal: 1 Pair
SS IN Differential Signal: 1 Pair additional | Differential Signal: 1 Pair |
| Connector Signals | 4 wires: SuperSpeed
2 wires: DP/DM for USB 2.0
3 wires: Vbus/GNDx2 | 2 wires: DP/DM for USB 2.0
2 wires: Vbus/GND |
| Bus Protocol | No polling | Uses polling |
| Power Control | Configuration at multiple link levels | Suspend/Resume by Port |
| Power Supply to Bus | Max. 900 mA | Max. 500 mA |
Features- 99.99% pure oxygen free copper wires
- 100% test before shipment
- Current rating: 0.5A
- Contact resistance: 2Ω/m
- Insulator resistance: 100MΩ minimum
- Dielectric withstanding: 250V AC for one minute
- Operating temperature: 0 to 60°C
- Warranty: 1 year
Application1.USB 2.0 is an external bus that supports data rates up to 480Mbps , fully compatible with USB 1.1 and with Windows and Mac computers, and supports all earlier USB devices.2.Easily connect keyboards, mice, modems, printers, and other USB peripherals, various portable and mobile devices /Fully forward and backward compatible with current USB systems and peripherals/ This USB cable can connect to our AC/DC power adapter3.PC and Mac compatible/ Compliant with various of mobile phone or digital camera4.Thermoplastic elastomer connectors5.Plug-and-play--and hot swap6.Simplicity and fashionableProduct Features:
1).USB 2.0 cables are backwards compatible as they can carry a USB 1.0 and 1.1 signal. USB cables are used to connect devices such as digital cameras, digital video cameras, scanners, printers, web cams, mice, keyboards, joysticks, network connections, etc.
2).Gold-plated or Nickel-plated connector resists corrosion and ensures an optimum connection for maximum signal transfer.
3).The maximum length for a single USB cable is 15ft. To get more than 15 ft you will need to boost the signal with a repeater Cable (Part # UC-50200) or Hub.
4).Shielded under mold protects against unwanted EMI/RFI interference

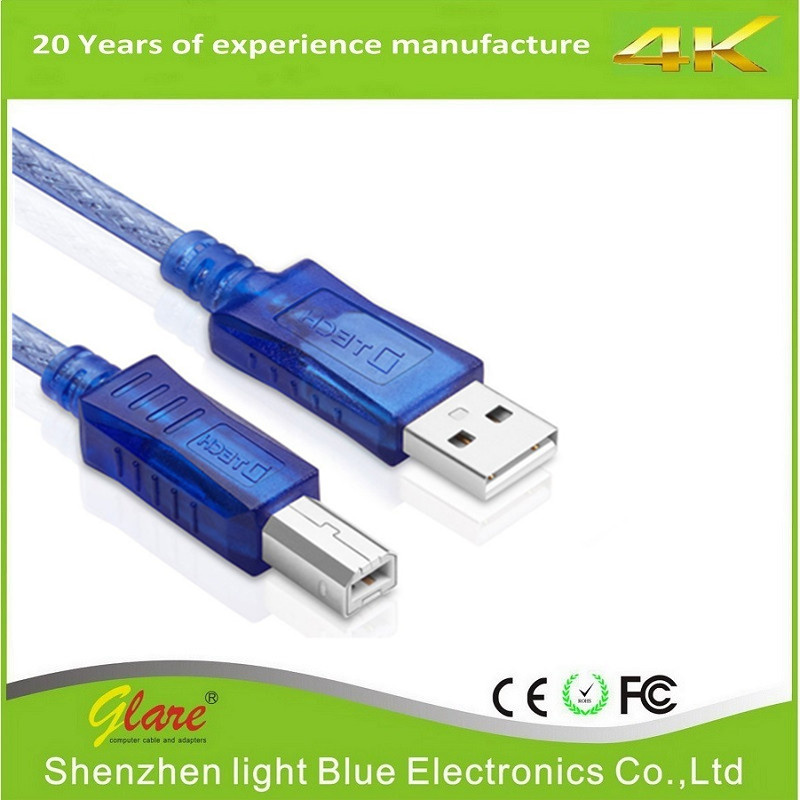

Hot selling shielded cable 2.0 for usb printer cable | Product Name | USB printer cabble |
| Connector Type | AM/BM for printer |
| Conductor | Bare Copper or Tinned Copper |
| Color | White, Black, Blue, Transparent |
| Connector Finish | Gold plated or Nickel plated |
| Length | Within 10M customized |
| Data Speed | USB 3.0 super speed of up to 5Gbps supported |
| Compatibility | Backward compatible with USB 1.1&2.0 |
| Outer Diameter | 4.5mm-6.0mm |
| Lines | Standard 9 lines |
| Ferrite Filter | Optional |

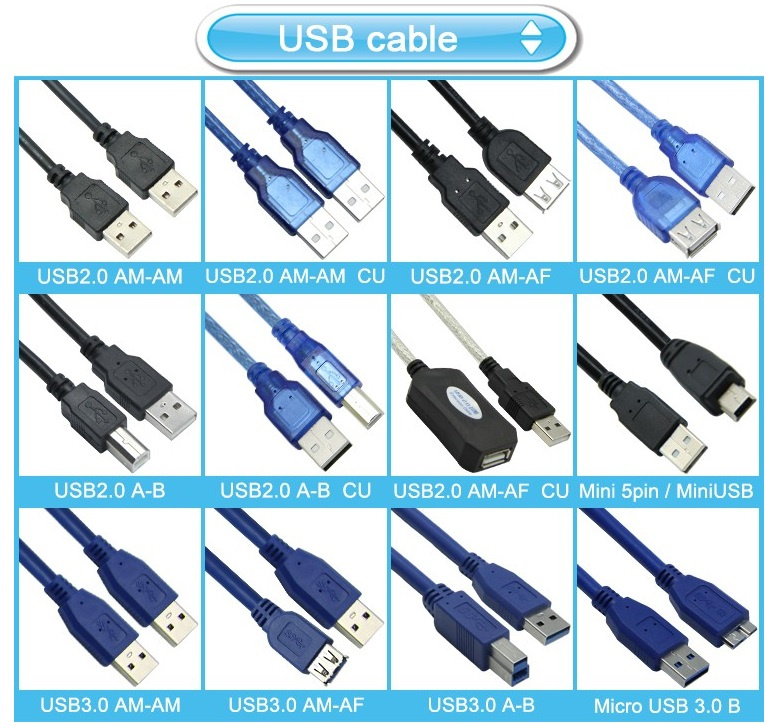

product picture
Retive usb cable 2.0version
Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.
Package information 1pcs/poly bag
250pcs/carton
carton size:46*30*25cm
