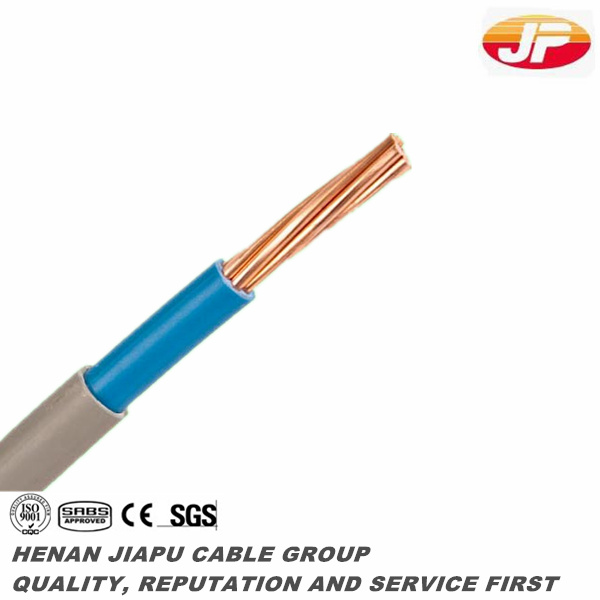

Fast Diliver Thhn Nylon Copper Electrical Wire

Name: Fast Diliver Thhn Nylon Copper Electrical Wire
Brand: all-electronics-online.com
SKU: 825592765
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	US $ 1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	THHN
Standard:	ASTM, IEC, DIN, CSA, BS...
Type:	Insulated
Conductor Type:	Solid
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	SABS
Brand:	Jiapu

Product Description

Specifications
AWG 10 12 14 16 THHN nylon copper cable
1.High Quality THHN nylon copper cable
2.AWG 10 12 14 16
3.THW THHN NYLON JACKET
AWG 10 12 14 16 THHN nylon copper cable
Type THHN or THWN-2 conductors are primarily used in conduit as branch circuits in commercial or industrial applications, as specified by the National Electrical Code. Type AWM or MTW conductors are primarily used as appliance or machine tool wiring, as specified by the National Electrical Code.
Type THHN or THWN-2 are available as stranded in sizes 14 awg - 750 kcmiL, and as solid in sizes 14-10 awg. Stranded sizes 14 awg - 750 kcmil are also rated as AWM or MTW. The conductors are soft-annealed, stranded or solid copper and are insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polymide) jacket is applied.
Specifications:
Type THHN or THWN-2 or AWM or MTW meets applicable ASTM specifications, UL Standard 83, UL Standard 758, and UL Standard 1063. The conductors are Gasoline and Oil Resistant II, and have a voltage rating to 600 volts.
Sizes 1/0 and larger are rated for CT use. All sizes have VW1 flame rating. All THHN is UL and cUL Listed.

Colors Available:
Color Code #1) Black, White, Red, Blue, Green, Orange, Yellow, Brown, Purple, Gray, Pink, Tan
Color Code #2) Black, White, Red, Blue, Green, Orange, Yellow, Brown, Gray
Color Code #3) Black, White, Red, Green
Color Code #4) Black, Green
Color Code #5) Black

Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
