| Prod Model: |
Fl912 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
0.8 mm |
| Board Layer: |
1 Layers |
| Copper Thickness: |
1 Oz |
| Solder Mask: |
Green |
| Silksreen: |
White |
| Surface Finihsing: |
Enig |
| Lead Time: |
6-8 Working Days |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Paper Phenolic Copper Foil Substrate |
| Dielectric: |
Rogers |
| Base Material: |
Rogers |
| Brand: |
Rogers |
Product Description

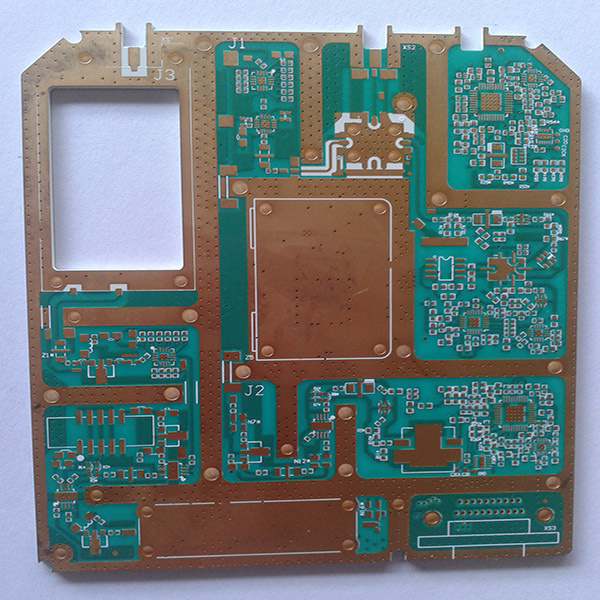

Fast Supply Rogers Circuit Board with stocked material 4003 & 3003
Product Description
Rogers PCB vs FR-4 PCB
For some designs, dielectric PCB properties are critical
Whether it's high-speed designs, RF, microwave, or mobile applications - where power management is key, you're finding more situations that require dielectric PCB properties in your prototypes that standard FR-4 just can't deliver. We know that. That's why we've added Rogers dielectric materials to our production line. These new low-loss dielectric materials mean greater performance for your high-demand PCB prototypes.
Why Rogers Dielectric Material?
FR-4 material provides the base standard for PCB substrates, delivering a widely effective balance between cost, manufacturability, electrical properties, durability and performance.
But when electrical properties and performance are critical to your designs, Rogers 4350 delivers:
1. Lower Dielectric loss
2. Low signal loss
3. Low cost circuit fabrication
4. Suitable for quick-turn prototyping applications
PCB advantages:
1 R&D team support
2 UL, RoHS,ISO9001
3.IPC class2
4.Advanced production line and promtly delivery.
5,Honest Credibility in China.
6.Professional and abundant experience in PCB.
7.Competitive price and good quality.
8. Excellent after-sales service.
PCB product showcase:
PCB application:
PCB production line:
Our Services
Fastline is a leading PCB manufacturer in China. providing PCB design, PCB fabrication,PCB clone and PCB assembly services. and we have got the UL, ISO, SGS certifications.
PCB Manufacture Capability |
| Item | Manufacture Capability |
| Layers | 1-26 Layers |
| HDI | 2+N+2 |
| Material Types | Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free, |
| Isola, Taconic, Arlon, Teflon, Rogers, |
| Max. Panel Dimension | 39000mil * 47000mil (1000mm * 1200mm) |
| Outline Tolerance | ± 4mil (± 0.10mm) |
| Board Thickness | 8mil-236mil (0.2 - 6.0mm) |
| Board Thickness Tolerance | ± 10% |
| Dielectric Thickness | 3mil-8mil ( 0.075mm-0.20mm) |
| Min. Track Width | 3mil ( 0.075mm ) |
| Min. Track Space | 3mil ( 0.075mm ) |
| External Cu Thickness | 0.5 OZ - 10 OZ ( 17um - 350um) |
| Internal Cu Thickness | 0.5OZ - 6OZ ( 17um - 210um) |
| Drilling Bit Size ( CNC ) | 6mil-256mil ( 0.15mm - 6.50mm) |
| Finished Hole Dimension | 4mil-236mil(0.1mm - 6.0mm) |
| Hole Tolerance | ± 2mil (± 0.05mm) |
| Laser Drilling Hole Size | 4mil(0.1mm) |
| Aspect Ration | 16: 1 |
| Solder Mask | Green, Blue, White, Black, Red, Yellow, Purple, etc. |
| Min Solder mask Bridge | 2mil(0.050mm) |
| Plugged Hole Diameter | 8mil-20mil ( 0.20mm-0.50mm) |
| Beveling | 30o - 45o |
| V-scoring | +/-0.1mm, 15o 30o 45o 60o |
| Impedance Control | Min. 5% General ± 10% |
| Surface Finishing | HASL, HASL(lead Free), Immersion Gold |
| Immersion Silver, OSP, Hard Gold ( up to 100u" ) |
| Certification | UL RoHS ISO9001: 2000 ISO14000: 2004 SGS |
| Testing | Flying probe, E-TEST, X-RAY Inspection , AOI |
| Files | Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc
|
FAQ
Q1: What's your minimum order quantity?
A1: Our MOQ is not the same based on different items. Small orders are also welcome.
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3: What any other information should be offered except for file?
A3:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity
Q4: I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
More information about PCB, pls contact with us!
Contact Person : Alice
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
