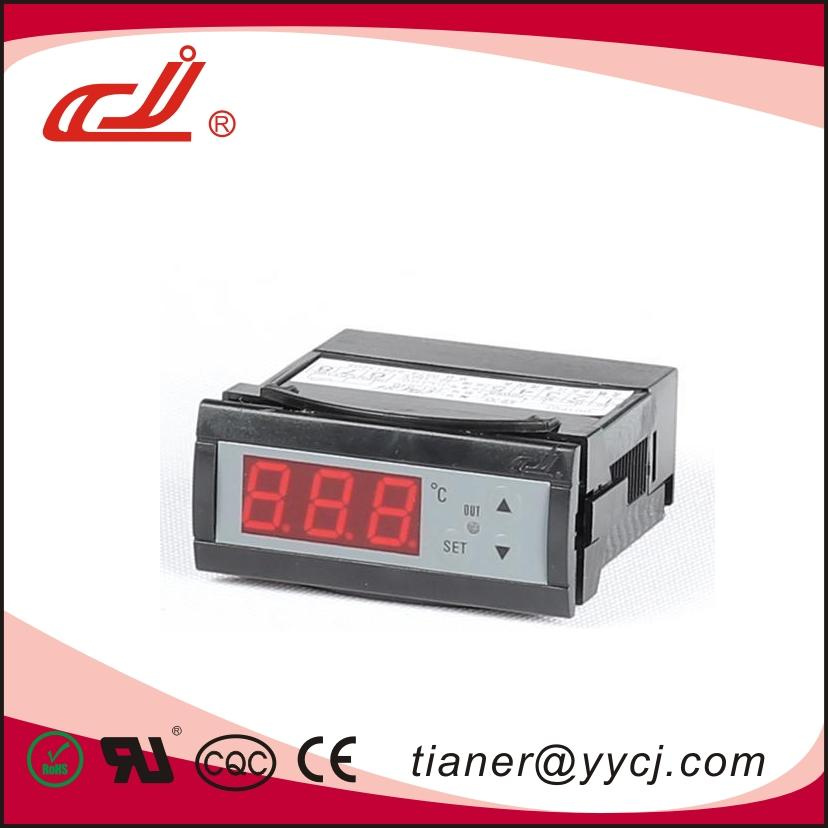

FC-040 Cj Series Refrigeration Meter

Name: FC-040 Cj Series Refrigeration Meter
Brand: all-electronics-online.com
SKU: 710375332
Availability: InStock
Rating: 4.4 (123 reviews)

Price:	US $ 6.5-12.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC-040
Size:	76*34
Input Type:	Ntc10k
Temperature Display Range:	-50-150c
Display:	3 LED

Product Description

Specifications

Input type: NTC10K (B=3380)
Refrigeration meter
Temperature range: -50~150c
External dimension (mm): 76x34x72
Hole size: 70x28mm

The meter has international standard External dimension and 3-key gentle push-switch setting, single row, 3-LED display,  temperature error can correct, the meter has heating or cooling function,
you can choice freely. It adopts ON/OFF adjustment, return difference can be adjusted,control
precision is high.

Technical specification
1,Input type:NTC10K (B=3380)
2,Temperature display range: -50~150ºC
3,Relay output contact capacity:7A  240VAC
4,External dimension(mm):76×34×72       hole size(mm):70×28
5,Working power:AC110~242V,50/60HZ,  power dissipation is less than 3W
6,Working environment:temperature 0~50.0ºC, relative humidity≤85%RH, without corrode and strong electric radiation.

The inner parameters

Series		Prompt	Name	Setting range	Remark	Ex- Factory
-	0	SP	Temperature set value	-	Press orkey 3 second can revised the set value, the setting range be determined by SPL and SPH .	50

The second menu	1	Loc	Electronic lock	0~50	When Loc =18, all parameters can be revised; When Loc ≠18, all parameters can not be revised.	18
	2	Hy	Control return difference	1~20		1
	3	SC	Measurement error modifier	-20~20	The measured value can be modified through increasing or decreasing this data.	0
	4	SPL	Range lower limit	The starting point to	SPH≥SPL , The setting range: -50~150ºC	-50
	5	SPH	Range upper limit	to full range	SPH≥SPL , The setting range: -50~150ºC	150
	6	COL	System function choice	-	H_t: Reverse control (heating ); C_t: Positive control(cooling ).	H_t
	7	T	Delay time	0~60 minutes	When refrigeration control, it is effective; it is 0, turn off delay feature	2
