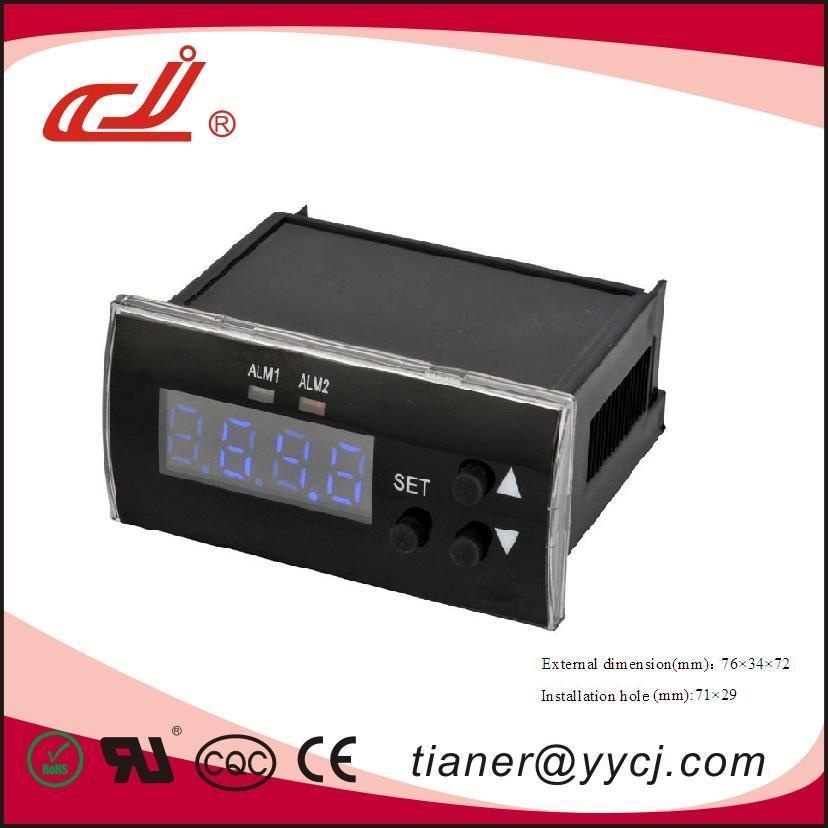

FC-142 Digital Temperature Control Meter with 4-LED Display

Name: FC-142 Digital Temperature Control Meter with 4-LED Display
Brand: all-electronics-online.com
SKU: 710238862
Availability: InStock
Rating: 4.4 (145 reviews)

Price:	US $ 6.8-13.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC-142
Size:	763472
Input Type:	PT100,Ntc10k
Working Power:	AC110-242V, 50/60Hz
Display:	4 LED Display
Key:	3 Key
Theory:	Temperature Controller
Usage:	Industrial

Product Description

The meter has international standard external dimension and 3-key gentle push switch setting, single row 4-LED display. The temperature error can correct, return difference can be adjusted, control precision is high.

I. Technical specification
1, Input type: PT100(-50.0~300.0C) NTC10K: B= 3435(-50.0~150.0C)
2, Accuraacy: ± 0.5%F· S ± 1B
3, Relay output contact capacity: ALM1: 16A/240VAC;
ALM2: 3A/240VAC
4, External dimension(mm): 76× 34× 72 hole size(mm): 71× 29
5, Working power: AC110~242V, 50/60HZ, power dissipation is less than 3W
6, Working environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong electric radiation.

The inner parameters:

Series	Prompt	Name	Set range	Remark	Ex-Factory
1	Lock	Electronic lock	0~50	When Loc=18, all parameters can be revised; When Loc≠18, all parameters can not be revised.	18
2	AL_1	The upper limit alarm	PT100: -50.0~300.0C NTC10K: -50.0~150.0C	Please refer to "VI\alarm output"	100
3	AL_2	The lower limit alarm			50
4	Hy1	The upper limit alarm return difference	0.1~20.0		1.0
5	Hy2	The lower limit alarm return difference			1.0
6	SC	Measurement error modifier	±20.0	The measured value can be modified through increasing or decreasing this data.	0
7	dP	Decimal point	ON or OFF	ON:Open decimal point; OFF: Close decimal point;	OFF
8	Sn	Input type	NTC or Pt	NTC10K:NTC; PT100:Pt	PT
