FC Attenuator for DWDM

Name: FC Attenuator for DWDM
Brand: all-electronics-online.com
SKU: 818762325
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC attenuator
Insertion Loss:	Less Than 0.3
Return Loss:	More Than 50
Material:	Plastic, Metal
Flammability:	UL94 V-0 Grade
Sleeve Material:	Ceramic
Interchange Ability:	Less Than 0.2
Repeatability:	Less Than 0.2
Durability:	More Than 1000
Operating Temp.:	-40~75 Degree
Storage Temp.:	-40~75 Degree
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	ST
Certification:	ISO9001

Product Description

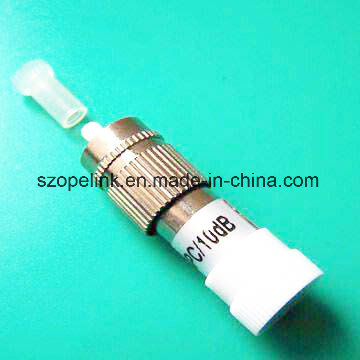

FC attenuator

Description:
Standard wavelength is 1310/1550nm and also C/L band or any other custom specifications are available.

Features:
High-power light source durability
Wavelength independence
Compliant with GR-910-CORE

Applications:
Erbium Doped Fiber Amplifiers (EDFA)
Dense Wave Division Multiplexers (DWDM)
Overpowered fiber optic systems

Specifications:

Attenuation Range	2dB ~ 40dB
Operation Wavelength	SM: 1260-600nm, or 1310nm/1550nm
Operation Wavelength	MM:850nm, 1310nm
Return Loss	≤50dB (PC),≤55dB (UPC),≤65dB (APC)
Attenuation Accuracy	±0.5dB (1 ~ 10 dB)
Attenuation Accuracy	±10% of Attenuation Value (11~40 dB)
Polarization Dependent Loss (PDL)	≤0.2dB
Exchangeability	≤0.2dB
Repeatability	≤0.2dB
Durability	≤0.2dB Typical 1000 matings
Operating Temperature	-20 ~ +75 degree centigrade
Storage Temperature	-40 ~ +85 degree centigrade

Order Information:

type	End Face	Material	Housing Color	RL	Attenuation
SC=SC FC=FC LC=LC MU=mu ST=ST SA=SC Adap. FA=FC Adap.	P=PC A=APC	P=plastics M=metal	BL=Blue GR=Green BE=Beige AQ=Aqua ME=Metal	50=50dB 55=55dB 60=60dB 65=65dB	01=1dB 02=2dB 03=3dB 04=4dB 05=5dB 06=6dB 10=10dB xx=other

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

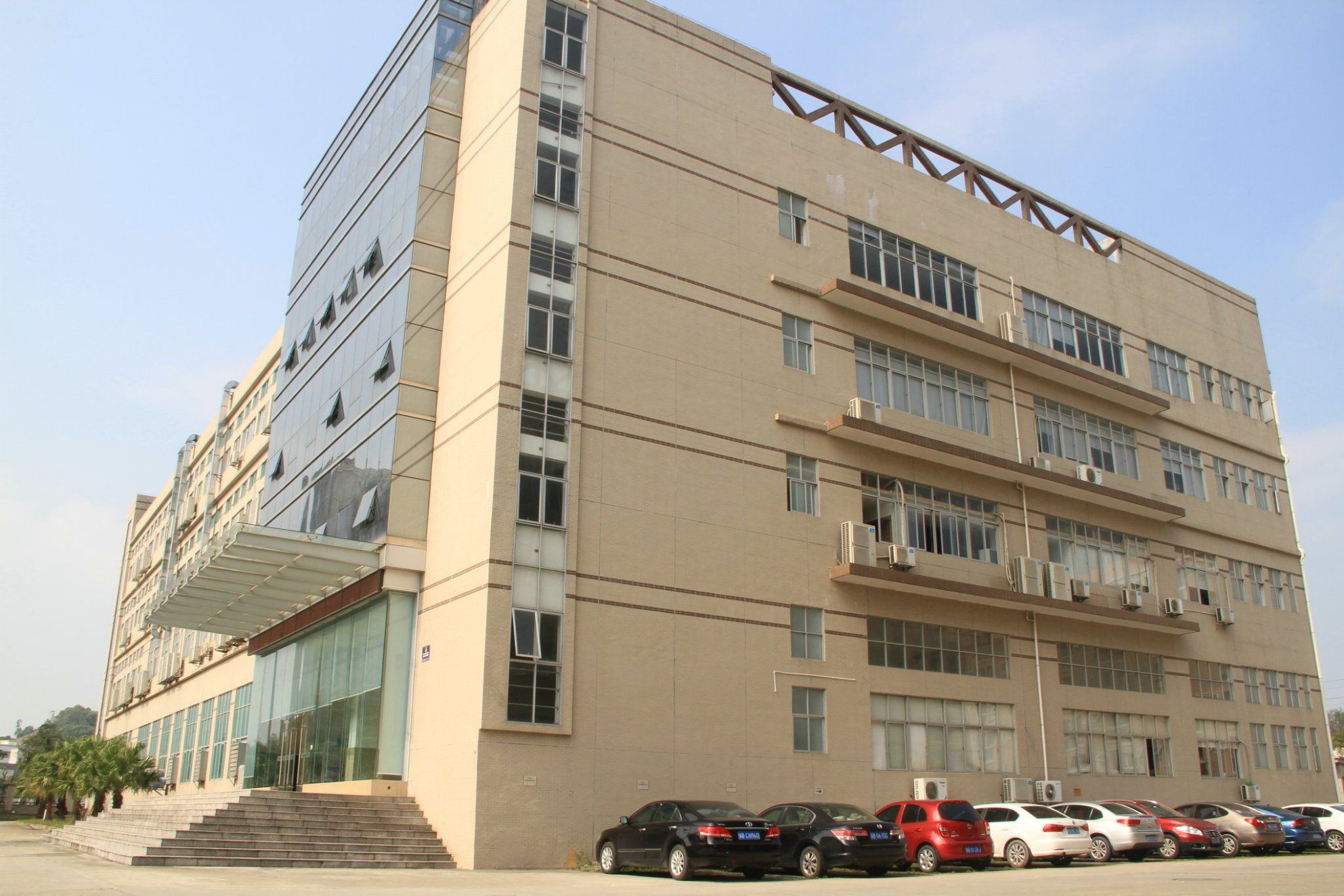

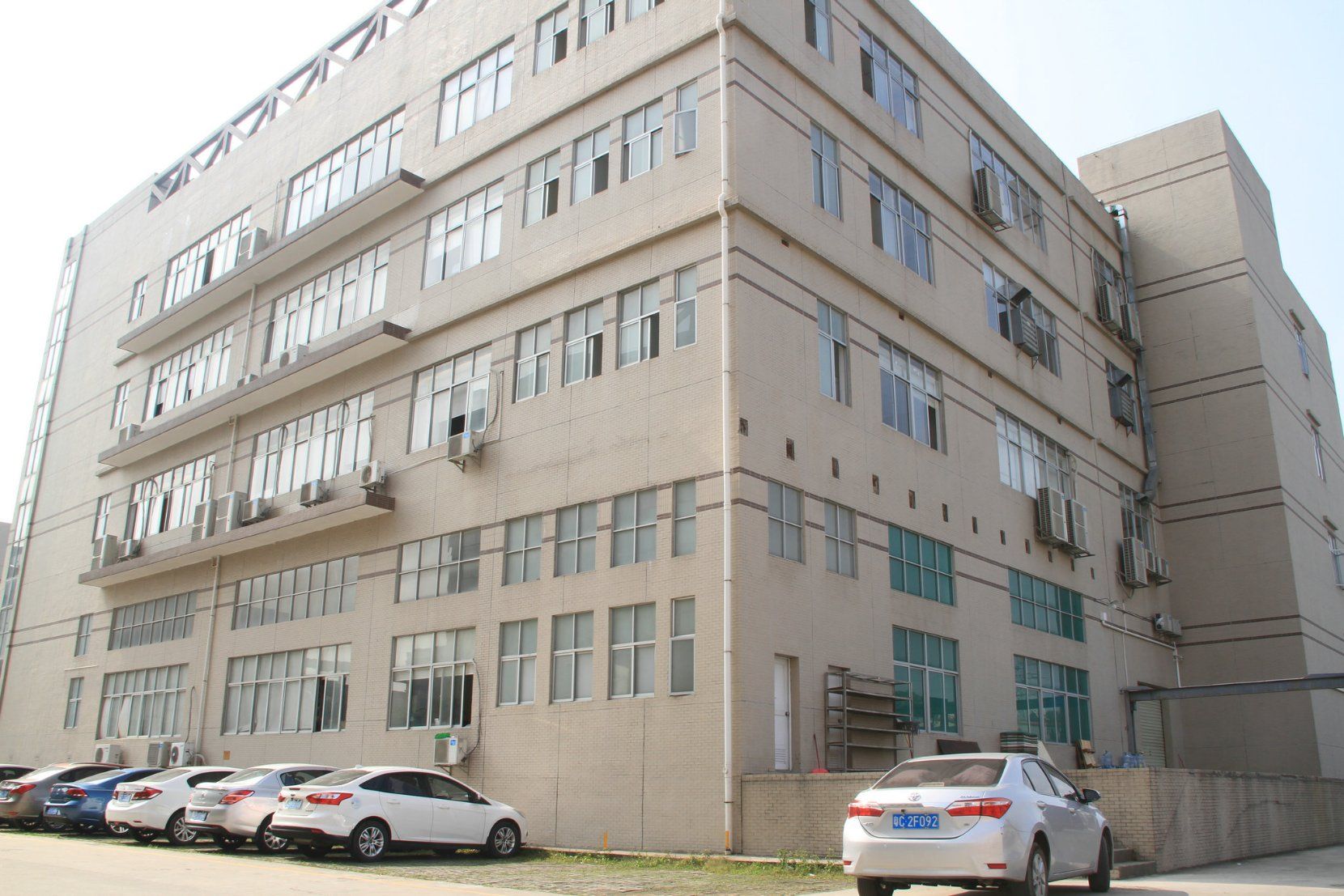

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
