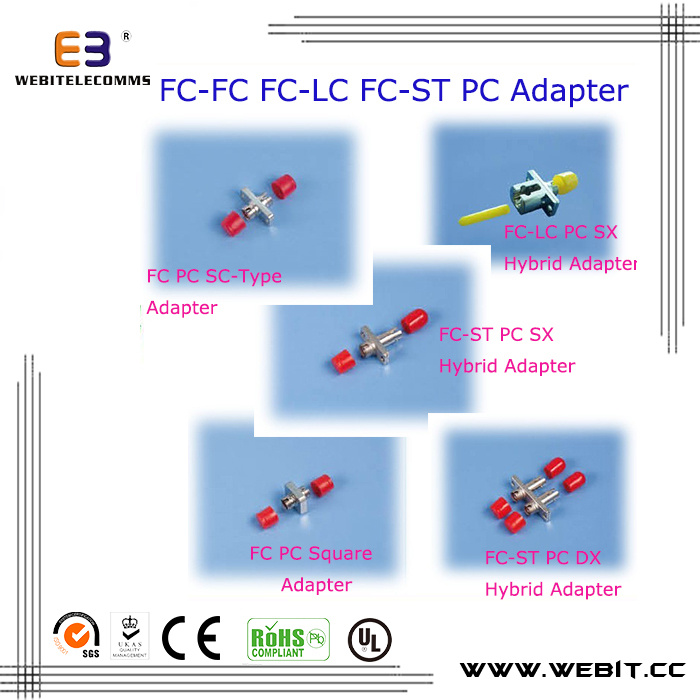

FC Adapter, FC LC Adapter, FC St PC Adapter, FC PC Square Adapter

Prod Model:	FC Adapter-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red/Yellow/Blue
Diameter:	0.9/2.0/3.0mm
Insertion Loss:	0.2db
Return Loss:	65 Db
Operating Temperature:	-40~80°c
Housing:	Plastic/Metal/Half-Plastic
Sleeve:	Ceramic / Metal
Type:	Square Type, Solid Type, Rectangular Type, D-Shape
Structure:	FC
Brand:	ODM or OEM
Application:	to Connect Fiber Cable
Connector Type:	FC Adapter
Transmission Medium:	Sm & Mm
Ferrule Endface:	PC
Number Of Cores:	Dx/Sx

Product Description

Packaging & Delivery
Packaging Detail:
Blister packing: 25pcs in 1 plastic box, 50 boxes in 1 carton.
PE Bag packing: 1pc/pe bag
Delivery Detail: 1-7 working days
Specifications
Low insertion loss and high return loss
Supplying free samples
Accept small order
Colors can be chosen
Metal or plastic
Product Description
FC/Upc Fiber Optic Flange with Cap

Specifications
Fiberoptic patch cord
Manufacturer
100% tested before delivery
Custom Cable, Connector...
Good Quality at Fair Price

Usage environment
1. Storage Temperature: -40º C~+85º C
2. Operating Temperature: -40º C~+85º C
Photoelectricity specifications
1. Insertion Loss: <0.2dB
2. Repeatability: ≤ 0.2dB
3. Exchange: ≤ 0.1dB
4. Durability: >1000(times)

FC fiber optic cable adapter
The optical adapter Back Reflection Loss
Theswitching adaptor is High Precision Alignment

Features
-Solid Type Adapter
-Rectangular Type Adapter
-Square Type Adapter
-Metal Body
-Available in Square Type, Solid Type, Rectangular Type, D-shaped Type, and Oval Type

Applications
-Optical distribution frame
-Testing instruments
-Optical fiber communication system interface
Item LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
TypeMulti-ModeSingle-Mode
Light CharacteristicOperating Wavelength850nm& 1300nm1310nm & 1550nm
Typical Insertion Loss0.2dB & 0.2dB0.2dB & 0.2dB
Mechanical TestingRepeatability≤ 0.2dB
Exchange≤ 0.1dB
Durability> 1000 (Times)
TemperatureStorage Temperature25 ~+85
Operating Temperature25 ~+85
Length, Color, Out-Diameter, Fiber countsAccording to the customers' requirement

Other related products:
LC/SC/FC/ST adapter;
Singal mode/ Multi-mode: SM/MM
Simplex/ Duplex/Quad;
Blue(SM) /grey(MM) /green(APC) /water green(OM3)/ purple (OM4);
Ceramic sleeve / Metal sleeve;
Pastic / Metal housing;
With flange / without flange;
With plastic clip / with metal clip clip/ without clip

Insertion loss	SM	≤0.20 dB
	MM	≤0.20dB
Return loss	P C	≥50 dB
	UPC	≥55 dB
	APC	≥65 dB
Durability	<0.20 dB typical change, 1000 mating
Ferrule hole sizes	SM: 125.0+1/-0um	concentricity:≤1.0um
	125.5+1/-0um	≤1.0um
	126.0+1/-0um	≤1.0um
	MM:125 um	concentricity:1≤3 um
	127 um	≤3 um
	128 um	≤3 um
Operating temperature	-40~80°C
