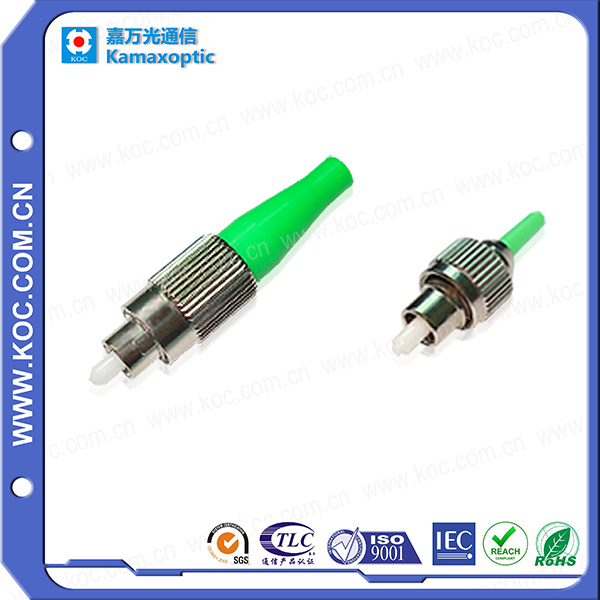

FC/APC Fiber Optic Cable Connector Termination

Name: FC/APC Fiber Optic Cable Connector Termination
Brand: all-electronics-online.com
SKU: 778818265
Availability: InStock
Rating: 5 (27 reviews)

Price:	US $ 0.52-0.55/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FCA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Uniboot:	Two Connector Used One Boot
Cable Diameter Szie:	2.0mm, 3.0mm
Housing Color:	Green; Blue; Beige;Aqua'
Housing Material:	Pei, ABS
Boot Type:	Switchable Uniboot
Cable Jacket Material:	PVC, Lszh, Ofnr, Ofnp
Cable Jacket Color:	Green; Blue; Beige;Aqua'magenta; Black;
Transmission Medium:	Single-Mode
Structure:	FC
Ferrule Endface:	APC
Number Of Cores:	Simplex, Duplex
Light Source TYPE:	Fiber Optic Communication
Brand:	Koc

Product Description

FC/APC fiber optical connectors with good price and good quality

Features
1.Low insertion loss
2.Mechanicl properties conform to EN 50173 and EIA-568-A standards
3.Connector kits and components connectors are available.
4.For the connector,ceramic ferrule can provide APC type(conical type or step tye) and PC type.
5.All materials meet the RoHS standard.

Applications

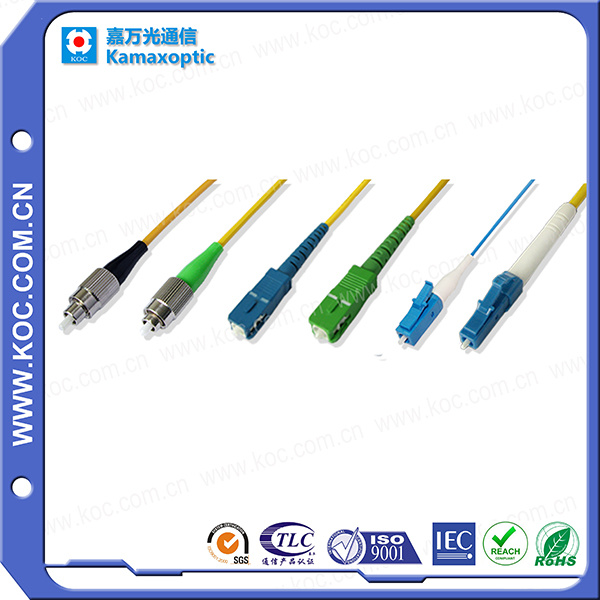

1.Connector kits can be made into different kinds of patch-cord and pigtail.
2.Optical fiber communication system.
3.Actives and optical fiber sensors.
4.Communications machine rooms
5.FTTH.
6.Telecommunication network and CATV

Specifications
Fiber mode: Single mode
Test wavelength: 1310nm&1550nm;
Insertion Loss: typical≤0.20dB,Max≤0.30dB;
Return Loss:UPC≥50.0dB; APC≥60.0dB
Durability:≤0.20dB,typical change,1000 mating.
Applicative cable OD.:0.9mm/2.0mm/3.0mm
BOOT color is optional:Green, Blue, Black
Operating Temperature:-40ºC to +85ºC
Storage Temperature:- 40ºC to +85ºC

Boot Szie	Boot Color	Houig Color	Boot Type
0.9mm	green	grenn	round
2.0mm			square

3.0mm

note: the price is for ST SM simplex connector.

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
