| Prod Model: |
fca |
| Uniboot: |
Two Connector Used One Boot |
| Cable Diameter Szie: |
2.0mm, 3.0mm |
| Housing Color: |
Green; Blue; Beige;Aqua' |
| Housing Material: |
Pei, ABS |
| Boot Type: |
Switchable Uniboot |
| Cable Jacket Material: |
PVC, LSZH,Ofnr,Ofnp |
| Cable Jacket Color: |
Green; Blue; Beige;Aqua'magenta; Black; |
| Transmission Medium: |
Single-Mode |
| Structure: |
FC |
| Ferrule Endface: |
APC |
| Number Of Cores: |
Simplex, Duplex |
| Light Source TYPE: |
Fiber Optic Communication |
| Brand: |
Koc |
Product Description

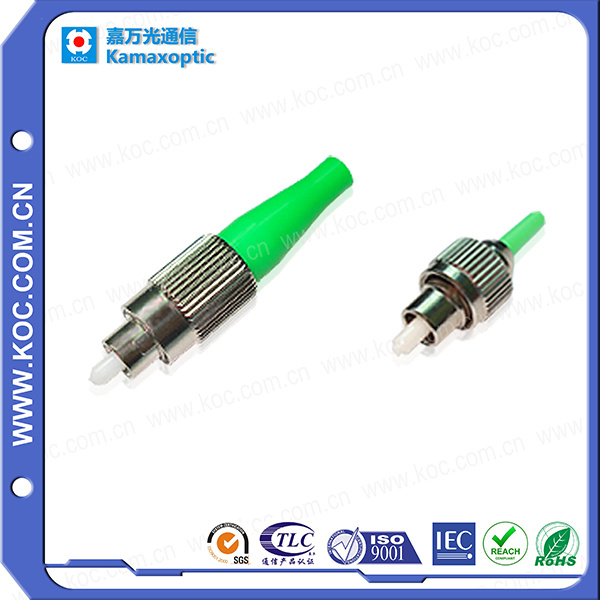

FC/PC fiber optical connectors with good price and good quality
Features
1.Low insertion loss
2.Mechanicl properties conform to EN 50173 and EIA-568-A standards
3.Connector kits and components connectors are available.
4.For the connector,ceramic ferrule can provide APC type(conical type or step tye) and PC type.
5.All materials meet the RoHS standard.
Applications
1.Connector kits can be made into different kinds of patch-cord and pigtail.
2.Optical fiber communication system.
3.Actives and optical fiber sensors.
4.Communications machine rooms
5.FTTH.
6.Telecommunication network and CATV
Specifications
Fiber mode: Single mode
Test wavelength: 1310nm&1550nm;
Insertion Loss: typical≤0.20dB,Max≤0.30dB;
Return Loss:UPC≥50.0dB; APC≥60.0dB
Durability:≤0.20dB,typical change,1000 mating.
Applicative cable OD.:∮0.9mm/∮2.0mm/∮3.0mm
BOOT color is optional:Green, Blue, Black
Operating Temperature:-40ºC to +85ºC
Storage Temperature:- 40ºC to +85ºC
| Boot Szie | Boot Color | Houig Color | Boot Type |
| 0.9mm | green | grenn | round |
| 2.0mm | | | square |
