FC/APC Sm Sx Square Solid/D Type Metal Fiber Optic Adapter

FC/APC Sm Sx Square Solid/D Type Metal Fiber Optic Adapter
Price: US $ 0.2-0.9/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FC/APC Adapter
Transmission Medium: Single-Mode
Structure: FC
Number Of Cores: Single-Core
Ferrule Endface: APC

Product Description

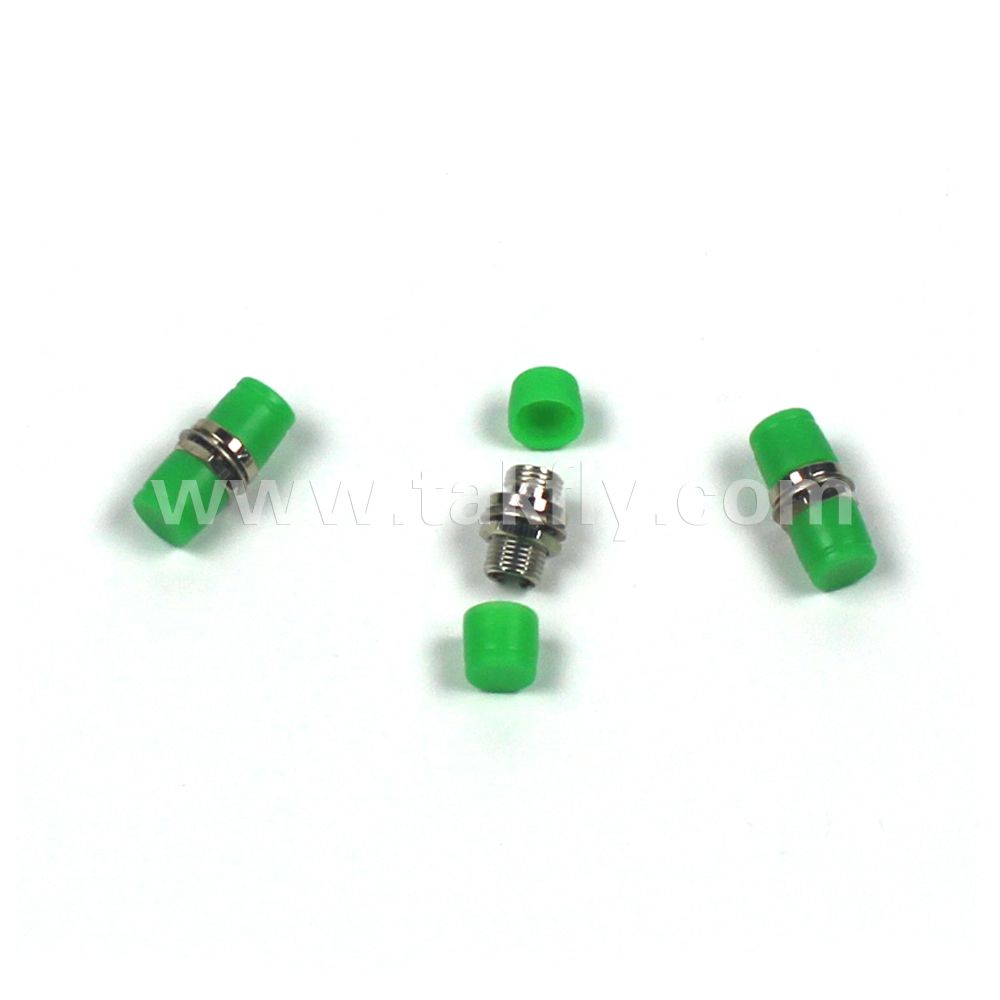

FC/APC Sm SX Square Solid/D Type Metal Fiber Optic Adapter



Features:
Ø Single mode
Ø Zirconia sleeves or Phosphor bronze sleeves
Ø NTT standard compatible
Ø Patch panel mount applications
Ø Meet JIS5974 and bellcore GR-326 standard
Ø Compliant with IEC874-14 & IEC874-19
Ø All parts compliant with ROHS
Application:
Ø Telecommunication
Ø CATV
Ø LAN & WAN
Ø Network
Ø Broadband
Ø FTTH
Parameter:
ProductFC Adapter
ModeS.M(Zroz)M.M(P.B)
Insertion Loss≤0.2dB≤0.3dB
Return Loss≥45dB--
Mating Durability(500 timer)Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature-40ºC~+85ºC
Storage Temperature                -40ºC~+85ºC

Order Information:
CODESLEEVETYPEHOUSINGFIGURE
H231. Zirconia
2. P.B

1 . Simplex

1. SM
2. APC

1. Square Solid Body
2. Square Twain
3. Rectangle
4. D Type
5. D3 Type




Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

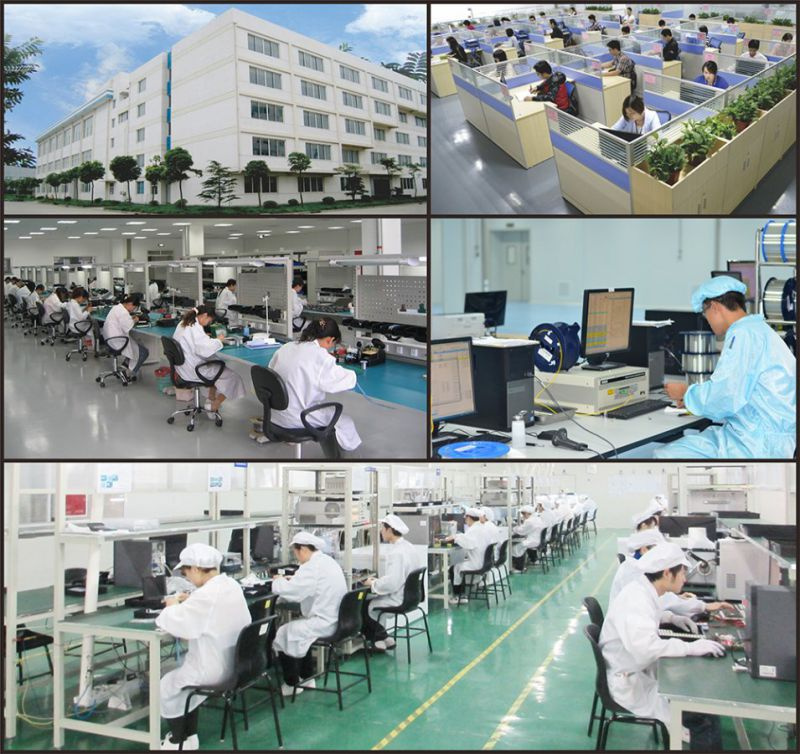

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
