| Prod Model: |
Fiber Optic Armored Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Fiber Optic Armored Cable |
| Connector Type: |
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,E2000 |
| Fiber Type: |
OS1, OS2, Om1, Om2, Om3, Om4 |
| Cable Od: |
3.0mm |
| Cable Jacket: |
Single Armored |
| Cable Color: |
Blue |
| Bend Radius: |
40mm |
| Tensile Loads: |
100~132 Lbs |
| Cable Material: |
Stainless Steel Tube, PVC |
| Warranty: |
2 Years |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CE |
Product Description

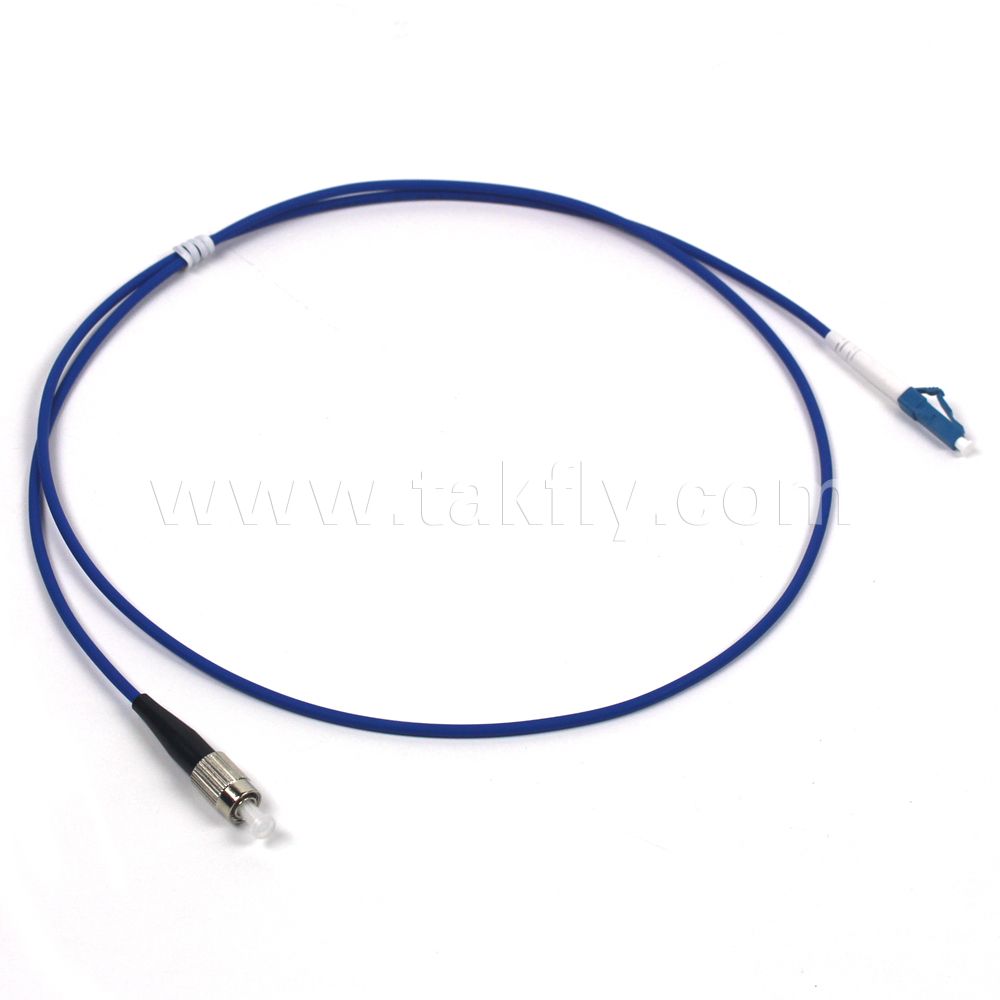

FC-LC Single Mode Simplex 3.0mm Armored Patch Cord/Fiber Armored Cable
Description
Armored fiber cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Features:
* Connector type SC, LC,FC,ST,E2000 etc. is optional
* Stainless steel tube provides good protection against physical damage.
* Single mode and Multimode; Simplex or Duplex
* Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core
* Custom order length
* Cable out Jacket: PVC,LSZH,OFNP,OFNR etc.
* All parts compliant with ROHS
* IEC standard compatible
* GR-326-CORE Compliant
Parameter:
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Cable Diameter | 3.0mm |
| Cable Jacket | Single Armored |
| Cable Color | Blue |
| Bend Radius | 40mm |
| Tensile Loads | 100~132 lbs |
| Cable Material | Stainless steel tube, PVC |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
