| Prod Model: |
TAKFLY-26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Of Cable: |
Yellow (Sm)/Orange (mm)/Aqua (Om3) |
| OEM/ODM: |
Acceptable |
| Fiber Type: |
G652D/G655/G657 |
| Warranty: |
2 Years |
| Certfication: |
Ce/UL |
| Free Samples: |
Yes |
| Certification: |
Ce, RoHS, UL |
| Insertion Loss: |
≤0.2dB |
| Return Loss: |
≥45dB |
| Delivery Time: |
One Week |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
Product Description

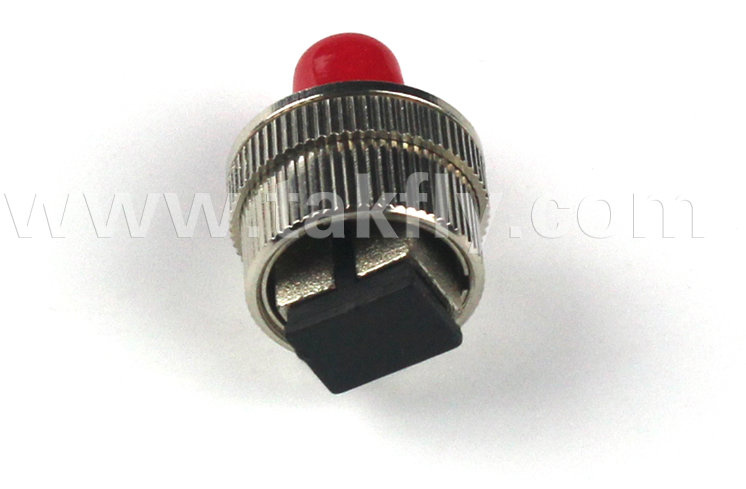

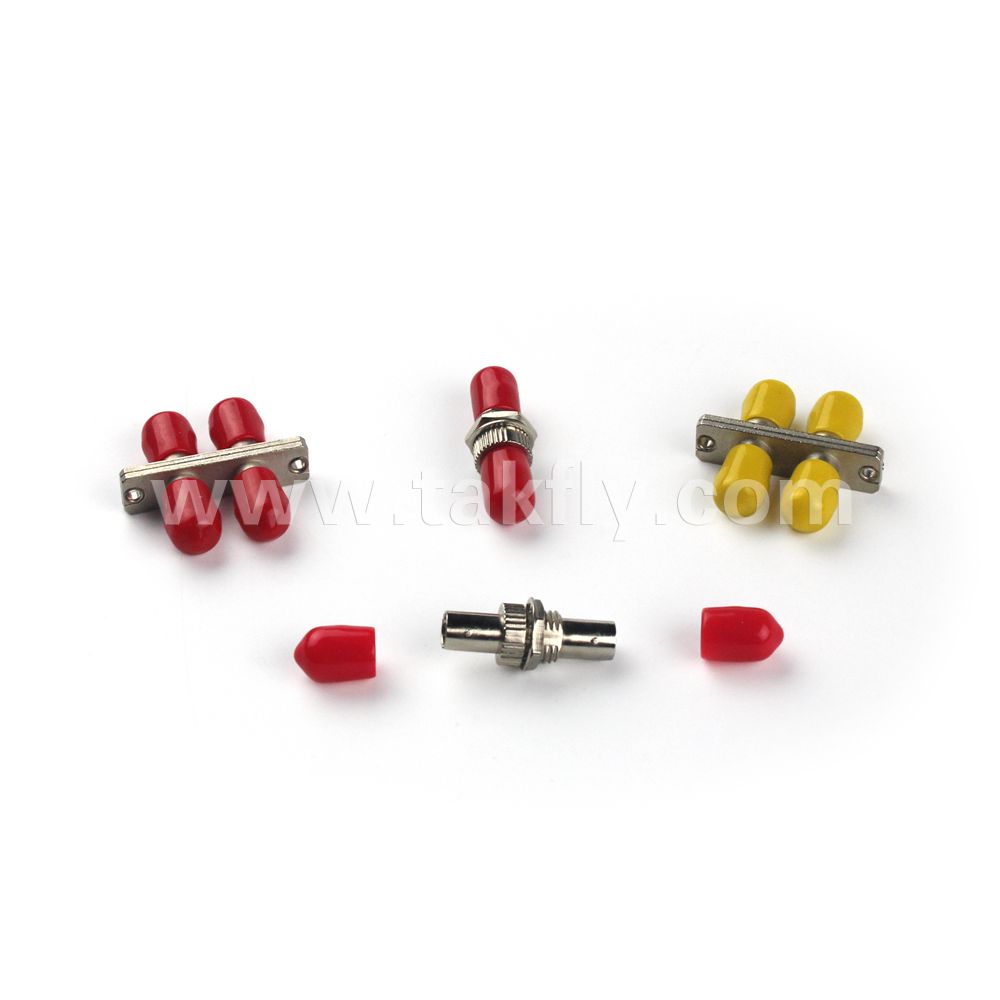

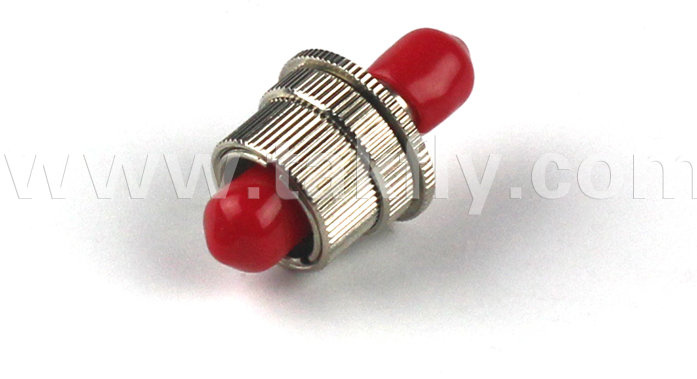

FC LC ST SC LC Factory Price Optical Fiber AdaptorFiber optic adaptors is also called mating sleeves, which are used to connect optical connectors of same type, such as FC, SC and ST. Optical adaptors are widely uses in light distribution frame(ODF), the optical fiber communications equipment, the measuring appliance and so on.
The optical adaptor connects fiber transmission by its placket tube. We offer various shapes of high-performance adaptors to ensure maximum connectivity between the fiber jumper. In order to fix a variety of board level, our company designed various sophisticated fixed flange.
Features:1. Multimode insertion loss: < 0.5dB (0.25dB typical)
2. Multimode return loss: Better than -25dB
3. Singlemode insertion loss: < 0.5dB (0.25dB Typical)
4. Singlemode return loss: Better than -55dB
5. Minimum 62.5/125µ M Fiber 850/1300nm Bandwidth: 160/500 MHz-km
6. Minimum 50/125µ M Fiber 850/1300nm Bandwidth: 500/500 MHz-km
7. Mating durability: < 0.25dB increase after 500 cycles
8. Operating/Storage temperature: 0º C to 60º C
Specifications:1.900um buffered 62.5um, 50um fiber and 9um singlemode fibers
2. High quality PC Zirconia LC, SC and ST style ferrules
3. Premium Polymer MTRJ ferrules
4.100% optical tested for premium performance
5. SC, ST, LC and MT-rJ versions available
6. Meets the standard of TIA/EIA-568-B. 3
Applications:1. Fushion splicing to OSP or building cables
2. Pigtailing to active devices such as LASERS or LEDs
| MECHANICAL, ENVIRONMENTAL & MATERIAL DATA |
| Range of Mode | Single or Multimode |
| Cable Type | Simplex or Duplex Zipcord |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000 |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.6mm, 2.0mm, 3.0mm |
| Lengths | Standard & Custom Lengths |
| Strength Member | Aramid Yarn |
| Outer Jacket | PVC or LSZH |
| Cable Assembly Length (<15 meter Tolerance) | -0/+100mm |
| Cable Assembly Length (>15 meter Tolerance) | -0/+10% |
| Jacket Color (Multimode: OM1 & OM2) | Orange |
| Jacket Color (Multimode: OM3 & OM4) | Aqua |
| Jacket Color (Single Mode: G652D & Gb57A) | Yellow |
| Durability | 500 cycles(0.2 dB max increase), 1000 mate/demate cycles |
| Operating Temp. | -20°C to +70°C /+85°C(armoured) |
| Storage Temp. | -40 °C to +85°C |
| Ferrule Concentricity | < 1μm, Other Ferrule Concentricity < 1μm |
| Humidity (FOTP-5) | 90-95% at 40°C |
| Strength of Coupling Mechanism (FOTP-185) | 33 N at 0° for 5 sec |
| Cable Retention (FOTP-6) | 50 N at 0° for 5 sec. |
| Twist (FOTP-36) | 15 N at 0° 5 turns, 10 cycles |
| Flex (FOTP-1) | 0.5 Kg at 25 cm, +90° to -90°, 100 cycles
|

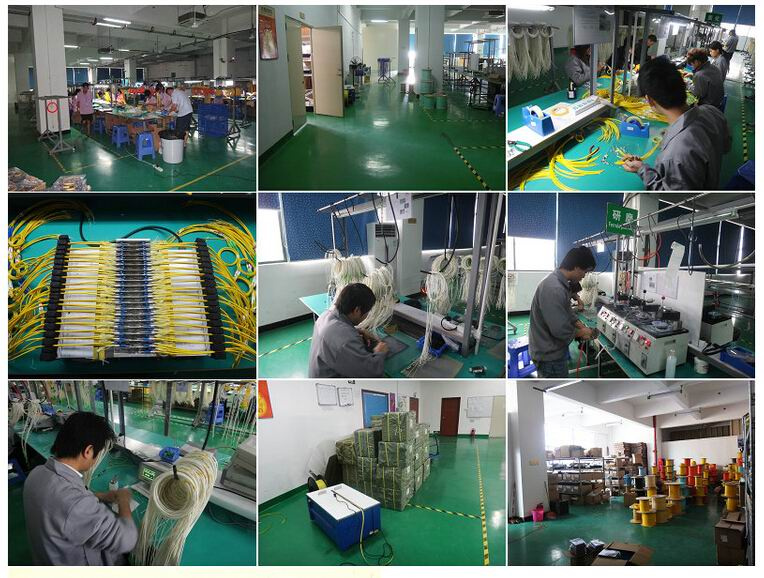

Factory
What products we can offer for you?1.Fiber optic patch cord , pigtail, armoured patch cord , armoured pigtail
2.fiber optic connector and adapter , hybrid adapter, bare fiber adapter
3.optic splice closure , dome closure, horizontal splice closure , splitter closure ,drop wire clamp,drop wire closure
4.FTTH splitter distribution 12cores, 16cores,24cores, 32 cores, 48cores
5.fiber optic splitter, fiber optic coulper PLC splitter
6.fiber cabinet, fiber patch panel, ODF, wall mount, rack mount ODF
7.ADSS cable accessories We have many kinds of adapter, Any interest pls contact me.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
