| Prod Model: |
fc |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| St Fiber Optic Connector: |
Single-Mode, Multi-Mode |
| Color: |
Metal |
| Cable Diameter Szie: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| Material: |
Metal |
| Structure: |
FC |
| Ferrule Endface: |
PC(',UPC) |
| Transmission Medium: |
Single-Mode, Multi-Mode |
| Brand: |
Koc |

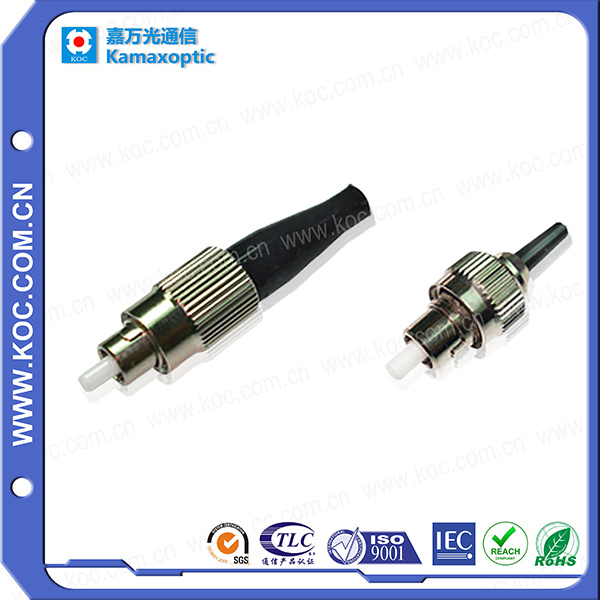

Product Description
Introduction
KOC has started working with the National Research Institute of Telecommunications since 1998. Headed for commercialization of optical fiber technology, we have made the first SC fiber connector in China. Later,LC and FC types were created to meet the increasing market demands. Products from our company are build to IEC 61754-13 standard.
APPLICATIONS
Instrumentation
Data processing networks
Premise installations
Local Area Networks (LANs)
FEATURES
High precision alignment
Boots in a variety of colors
Ferrule end surface predomed
Nickel plated brass body
Free-floating ceramic ferrule
Bayonet style housing for easy termination
Low insertion loss and back reflection loss
STANDARDSRDS
All components of/and the final product are designed and tested to conform the requirements of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801 2ND ED., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G. 651 or IEC60793-2-10 A1b or ITU-T G. 652 (depending on fiber), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455.
AVAILABILITY
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
| | Single mode | Multimode |
| Insertion Loss | ≤0.30dB | ≤0.30dB |
| Return Loss | ≥50 dB (PC) | >30dB |
| Durability | <0.20 dB typical change, 1000 matings | |
| Operating Temperature | -20 to + 70°C | -20 to + 70°C |
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm | 125μm, Concentricity: ≤3μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: ≤3μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: ≤3μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
