FC/PC Optical Fiber FTTH Fast Connector Field Installation Pre-Embedded Sm

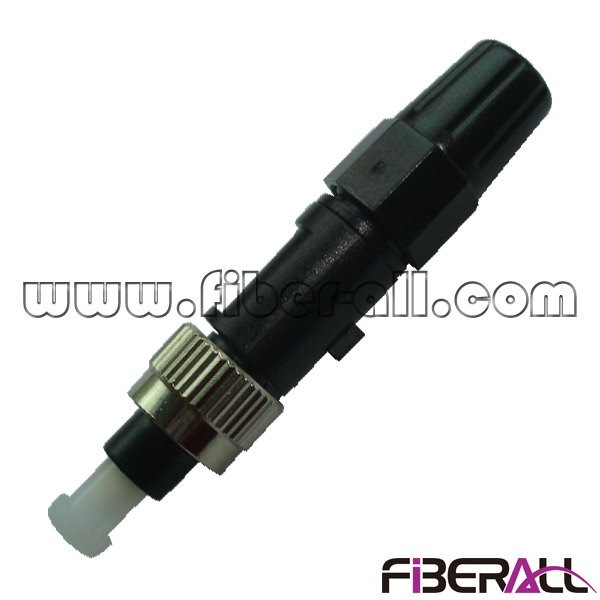

Name: FC/PC Optical Fiber FTTH Fast Connector Field Installation Pre-Embedded Sm
Brand: all-electronics-online.com
SKU: 686864621
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	US $ 0.8-3.0/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-FXFCFPS1
Use For:	FTTH Drop Cable
Ferrule:	Pre-Embedded & Pre-Polished
Color Of Housing:	Black
Installation Way:	Field Assembly
MOQ:	100
Type:	Single-mode Fiber
Connection Structure:	FC
Material Shape:	Flat Wire
Allowed Lateral Pressure:	100（N/100mm）
Allowed Tensile Strength:	<100N
Core:	Single Core
Certification:	CE, RoHS, ISO9001, UL
Sheath Material:	PC
Application:	Communication

Product Description

FA-FXFCFPS1,Optical Fiber FTTH Fast Connector, Field Installation Fiber Optic Connector, Pre-embedded Type with ferrule, FC/PC, Single Mode, Simplex, for FTTH drop cable

Fiberall Field Installable Fast Connector is specially designed for FTTH drop cable. It provides fast & efficient assembly, high reliable connection & termination.

Product features:
1, Field assembly and installation;
2, Need simple tools only and easy to operate.
3, Pre-embedded type is with pre-polished ferrule, there is no need to do polishing any more during installation.
4, Standard design, can match wall mounted socket very well.
5, Excellent performance, low insertion loss and high return loss.
6, Long life time: more than 10 years.
7, Short assembly time: average 3 mins only.
8, Tools may need: dust free tissue, alcohol bottle, cable stripper, fiber stripper, fiber cleaver, fiber locator & identifier ( Fiberall also supply these tools).

Technical Parameters:

Items	Technical Parameters
Applicable for	Drop cable or Indoor cable
Optical fiber diameter	125μm
Tight buffer diameter	250μm
Fiber mode	Single mode or MM
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	PC> -40dB, APC>50dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75ºC
On-line tensile strength (20 N)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
