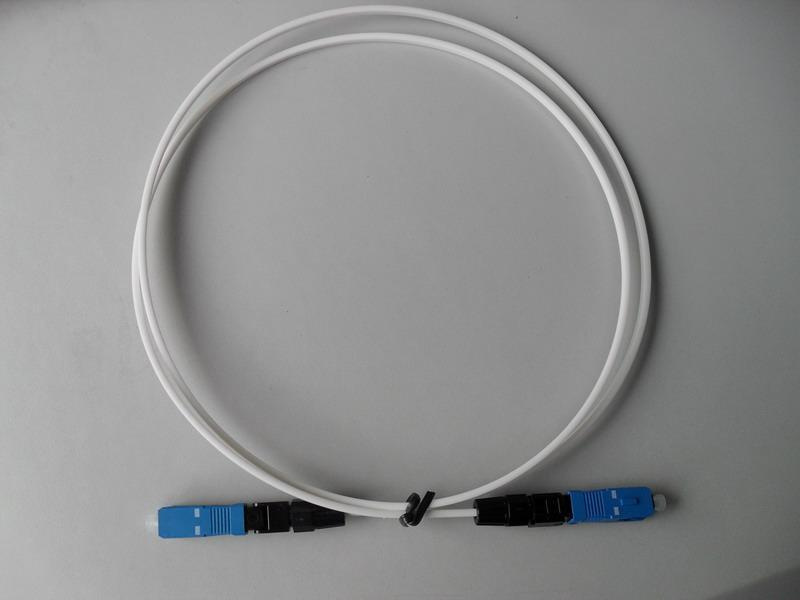

FC/PC -SC/PC GJXFH Type White Fiber Optic Drop Patch Cord
| Price: |
US $ 0.015-0.02/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ftth patch cord |
| Product Name: |
Drop Cable |
| Messenger Material: |
Steel Wire |
| Other Messenger Material: |
FRP, Kfrp |
| Jacket Material: |
LSZH |
| Jacket Color: |
Black, White |
| Installation Style: |
Indoor & Outdoor Aerial Drop Cable |
| Optical Fiber Type: |
G.657A |
| Fiber Color: |
Blue, Orange, Green, Brown |
| Outer Diameter Of Cable: |
2.0mm*5.0mm |
| Diameter Of Messenger Wire: |
1.0mm |
| Application: |
Drop Cable |
| Type: |
Single-mode Fiber |
| Certification: |
Drop Cable |
| Connection Structure: |
Drop Cable |
| Brand: |
Drop Cable |
| Sheath Material: |
LSZH |
Product Description
Product Description
Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for
both indoor and outdoor applications. The indoor fiber construction comprises of two colored optical
fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength members and an LSZH Jacket. The Outdoor
Drop Cable construction is similar to the indoor cable, except the cable jacket is made up of a Flame
Retardant Black PE and has a steel wire for aerial installations. These light weight cables are suitable
for direct installations in villas and multi dwelling units due to their excellent crush and impact resistance
properties.
Features
. Special low-bend-sensitivity G657 fiber provides high bandwidth
and excellent communication transmission property.
. Two parallel strength members ensure good performance of crush
resistance to protect the fibers.
. Simple structure, light weight and high practicability.
. Novel flute design, easily strip and splice, simplify the installation and maintenance.
. The strong steel passenger provided good tensile load during aerial application.
. Single steel wire or FRP as additional strength member ensuring good
performance of tensile strength.

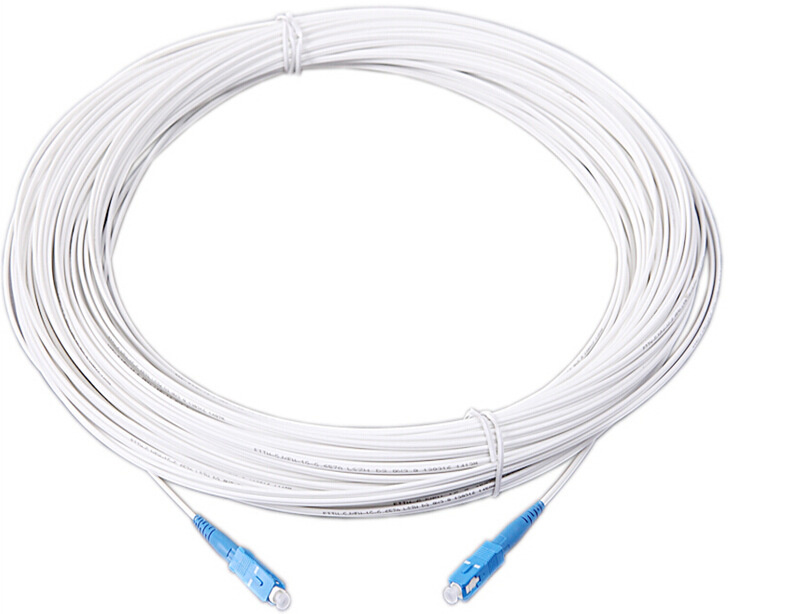

. Drop cable patch cord will be produced to different kind of connectors
and different length according to the construction need.
Fiber Parameters
| ITEM | Value |
| Fiber type | G657A or G652D |
| Cladding Diameter | 125±0.7 (µm) |
| Cladding non-circularity | ≤0.7(%) |
| Core-cladding concentricity error | ≤0.5 (µm) |
| Mode field Diameter @1310 | 8.4~9.2(µm) |
| Cladding -coating concentricity error | ≤12.0up |
| Coating Diameter | 245±0.5 (µm) |
| Attenuation(max.) | 1310nm | ≤0.4(dB/km) |
| 1550nm | ≤0.3(dB/km) |
| Bend Loss (dB) | Bend Radius | 10 | 15 |
| Bend Turns | 1 | 10 |
| 1550nm | ≤0.75 | ≤0.25 |
| 1625nm | ≤1.5 | ≤1.0 |
| ITEM | SPECIFICATIONS |
| Fiber Type | SM |
| Fiber count | 1~2 |
Jacket | Diameter | 2.0±0.1mm × 5.1±0.1mm |
| Material | Standard: LSZH Option: PE or other |
| Color | Black or White |
| Strength Member | FRP or Single steel wire |
| ITEMS | UNITE | SPECIFICATIONS |
| GJYXFCH | GJXFH |
| Tension Term(Long Term) | N | 300 | 40 |
| Tension Term(Short Term) | N | 600 | 80 |
| Crush Term(Long Term) | N/100mm | 1000 | 500 |
| Crush Term(Short Term) | N/100mm | 2200 | 1000 |
| Min. Bend Radius(Dynamic) | mm | 30D | 20D |
| Min. Bend Radius(Static) | mm | 15D | 10D |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC |
| MU | MU | MT | MTRJ | DN | DIN | E2 | E2000 |
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
