FC/PC Siglemode Optic Fiber Attenuator

Name: FC/PC Siglemode Optic Fiber Attenuator
Brand: all-electronics-online.com
SKU: 779665475
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	US $ 2.55-2.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC/PC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attenuation:	0~30dB
Mode:	Female-Male; Female-Femal; Adapter Type
Dust Cap Color:	White, Blue, Green
Housing Material:	Plastic, Metal
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	ISO9001
Brand:	Koc

Product Description

Product Description

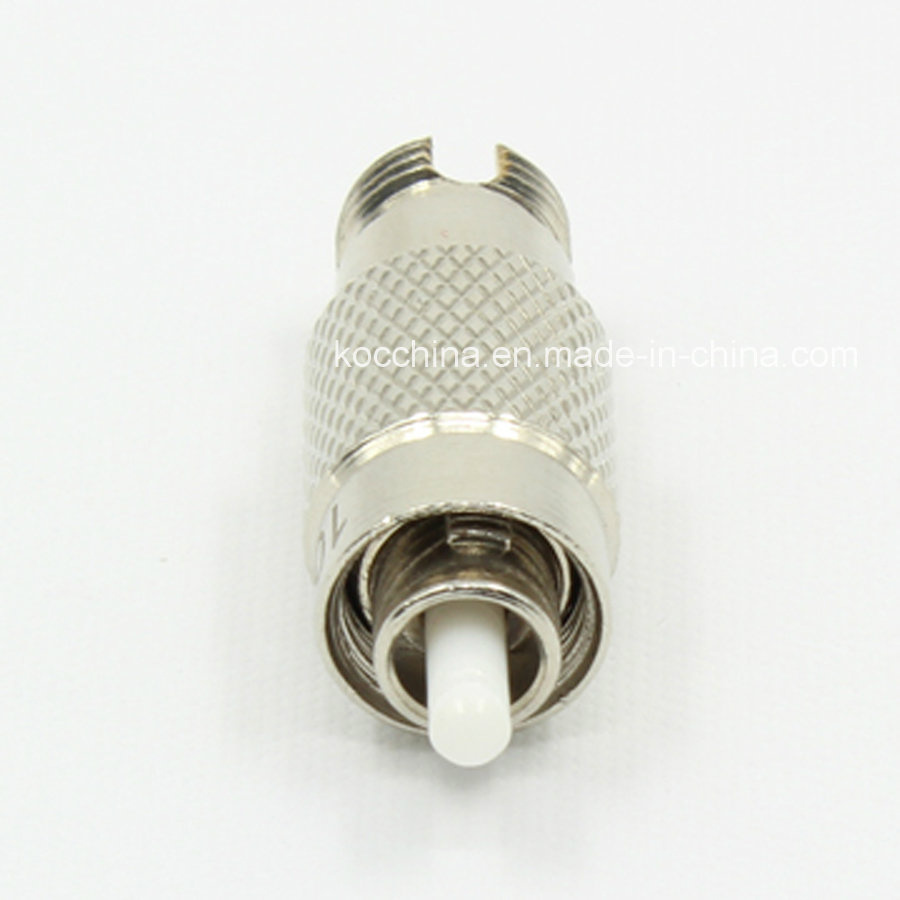

Optical Attenuator
Plug Type Fixed attenuator

Brief Introduction
Plug-in type fixed attenuator is attached to a connector at one end and connects an adapter at the other end lts attenuation is fixed, unadjustable.
This fixed attenuator is mainly used to reduce optical power to target value in optical links lt comes in different types including SC,LC,FC,ST and MU Based on the shape of ferrule shape it can also be classified as PC and APC with 8 degrees type The products attenuation is in range of 0 to 30dB,which are all applicable for optical signal with wavelength ranging from 1,250nm to1,600nm.

Feature
1.High quality ceramic ferrule
2.Excellent IL and high return loss
3.Good exchangeability and durability
4.High temperature stability
5.All parts compliant with ROHS
6.Aompliant with Telcordia-GR-910-CORE.

Applications
1.Active device termination
2.Test equipment
3.Passive optical fiber network
4.Data processing network
5.Telecommunication network
6.CATV, LAN, WAN

Advantages:
Bellcore compliant
Wavelenght Independent
Durability(well over 100nw)
Simplex and reliable structure
Environmentally stable

SPECIFICATIONS

ITEM	Parameter
	Single-mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Bandwidth	1250~1650nm
Insertion Loss range	0~30dB
Attenuation tolerance value	0~5dB,±0.5dB
	5~30dB,±10%
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,1000 mating
Optical power endurance	≤200mW
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
