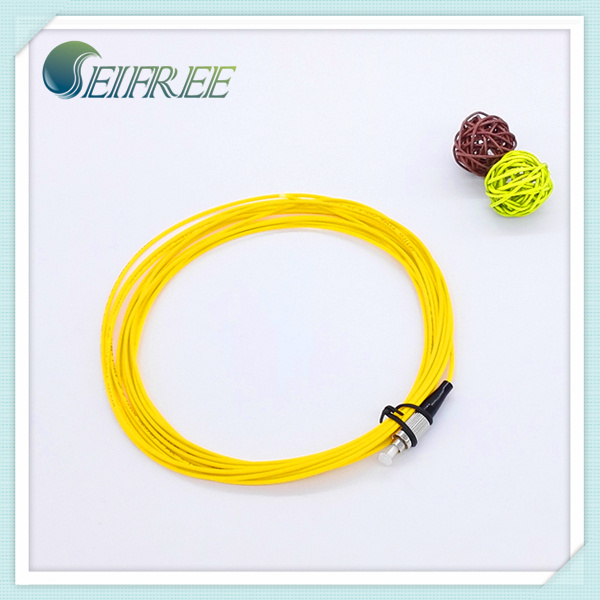

FC/Upc Fiber Optic Pigtail, Single Mode Yellow PVC Jacket 2.0mm

Prod Model:	SOFC-1-FU-00-A2-2-00-C-60
Connector Type:	FC/Upc
Fiber Type:	G657A2
Jacket Type:	PVC
Pigtail Diameter:	2.0mm
Application 1:	Optical Transport
Application 2:	Network Cabling
Application 3:	Optical Module
Application 4:	Fiber Optic Equipment
Application 5:	Fiber Patch Panels
Application 6:	Oxc Network
Application:	Medicine
Type:	Multi-mode Fiber
Connection Structure:	FC
Certification:	ISO9001

Product Description

Description
We supply FC fiber optic pigtails, with very competitive prices. We offer the 9/125μm single mode, 62.5/125μm multimode and 50/125μm fiber pigtail. These fiber pigtails are with FC connectors and with typical 2.0mm outer diameter cables. Simplex fiber pigtail and duplex fiber pigtails are available, with different cable color, cable diameter and jacket types optional.

FC/UPC Single mode Fiber Optic Pigtails:
1) PC, APC, UPC, SPC polishing optional;
2) 100% optic test: Insertion Loss: ≤0.25 (PC); ≤0.25 (UPC); ≤0.3 (APC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥50 (UPC); ≥60 (APC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector options
7) Simplex and duplex connector available;
8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.

Applications
1) CATV, metro test equipment;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.

The most common is know as the fusion splice on pigtail, and the 12 fiber or 6 fiber multi color pigtail are easy to install and provide a premium quality fiber optic connection. We also offer Individual single pigtails, Discounted 6 packs, or 12 Packs. Also called 12 fiber or 6 fiber jacketed pigtails.

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/
