| Prod Model: |
TF-0406 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
FC/Sc/LC/St/Mu/MTRJ/E2000 |
| Factory: |
Takfly |
| Cores: |
Simplex, Duplex, Quard, 12 Cores |
| Material: |
PVC, LSZH, Ofnp |
| Usge: |
Communication, Art, Sensor, Medicine, Probe, FTTH, |
| Connection: |
Sc/LC/FC/St/Mu/MTRJ/MPO/E2000 |
| Diameter: |
0.9mm |
| Place Of Origin: |
Shenzhen of China |
| Type: |
Single-mode Fiber |
| Connection Structure: |
FC |
| Certification: |
CE |
Product Description

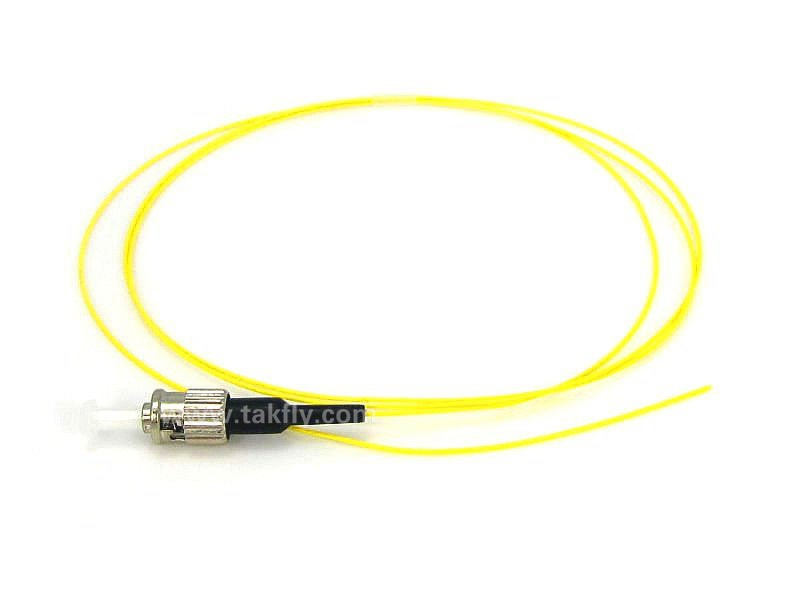

FC/upc fiber optic pigtail 0.9mm single mode 9/125um 1-3meter LSZH/PVC OEM
1,Details:
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
2. Features:
4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm
3. Application:
Test equipment
Optical CATV & LAN
Telecommunication networks
Optical communication networks
4. Before Sale Service:
We provide professional Pigtails. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry, our commissioners will promptly get in touch with the customers.
5. After Sale Service:
Takfly Communications Co., Ltd. Is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you. We are equipped with the good after service department and never escape our responsibility.
6. Why contact Takfly Communications Co., Ltd?
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry.
1. Fast delivery
2. Competitive price
3. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available
6. Longtime warranty
7. Value-added service: Except good products, we can provide good services on logistic and other help you may need.
For any question, pls feel free to contact us. Your inquiry of pigtail is expected! Warmly welcom you to inquiry us for this product
| Parameter | Unit | Bundle multi-fiber connector |
|
|
|
|
|
| SM |
|
|
| PC | UPC | APC |
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 |
|
|
|
| Return loss | dB | ≥45 | ≥50 | ≥60 |
|
|
|
| Operating wavelength | nm | 1310, 1510 |
|
|
|
| Exchangeability | dB | ≤0.2 |
|
|
|
| Vibration | dB | ≤0.2 |
|
|
|
| Operating temperature | degree | -40~75 |
|
|
|
| Storage temperature | degree | -45~85 |
|
|
|
| Cord diameter | mm | φ3.0,φ2.0,φ0.9 |
|
|
|
| Fiber count | F | 4, 6, 8, 12, 24, ^ fibers |
|
|
|
| Applicable connector |
| FC, SC, ST, MU, LC |
|
|
|
