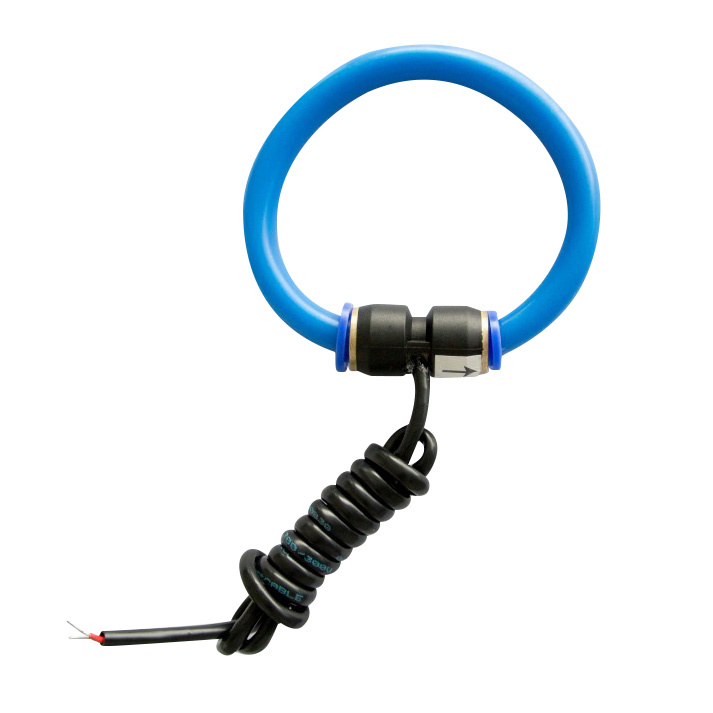

Fct Rogowski Coil Current Transformer 100A Sensor

Name: Fct Rogowski Coil Current Transformer 100A Sensor
Brand: all-electronics-online.com
SKU: 701475535
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-RCT. X-FCT
Markets:	North America,Oceania,Western Europe
Model:	Rct-1000
Rogowski Coil:	Flex Rogowski Coil
Output:	100mv/1000A
Application:	Lighting
Phase:	Three
Type:	Rogowski Coil Current Transformer

Product Description

Rogowski Coil Current Sensor
Split Rogowski Coil current Transformers are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoide

Details Of RS-1200A/333mV Flexible Rogowski Coil Current Probes

1.Current Range: 10A to 10kA
2.Rated output: 0.333Vac at rated current with Integrator
or 1000A/100mV without integrator
3.Accuracy:±1% from 5% to 120% of rated current with integrator(45-65Hz)
4.Phase Angle: ≤±1°5% to 120% from 5% to 120% of rated current
5.Linear: 0.5%
6.Frequency: 1Hz-1MHz ,50/60 Hz nominal
7.Work Voltage: 600V
8.Power supply: 7-30VDC (9 Vdc,12 Vdc recommended )
9.Coil Diameter: 10.5mm
10.Window size: 100mm,150mm or as per customer ordered
11.Wire lead: 1 meter sheath cable or as customers order
12.Withstand Voltage:3000V
13.Operating temperature: -25ºC-+70ºC
14.IP class : IP65
15.CE recognized. RoHS Compliant

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
