Fcu Digital Temperature Controller (TX-868)
Price: |
Negotiable/Piece |
Min Order: |
500/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
TX-868 |
Key: |
Lock Key |
Appearance: |
White Case, Black/Grey Surface |
Application: |
2-Pipe |
Fan Speed: |
Low,Med,High |
Backlight Display: |
Blue |
Guarantee: |
18 Months |
Product Description

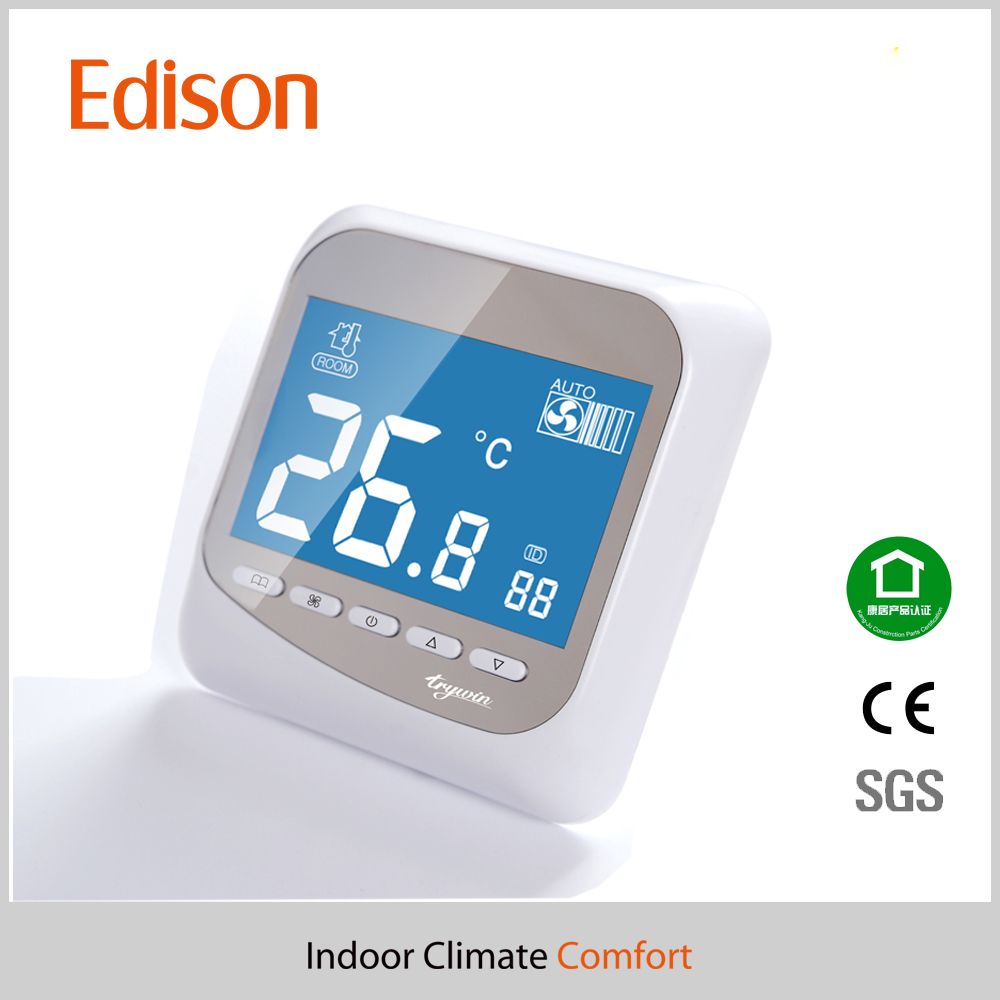

Central Air-Conditioning fcu digital Room Thermostat
FCU digital temperature controller (TX-868)
TX-868 digital room thermostat with LCD display is designed for controlling fan speed temperature and valves in fan coil unit system.
The model is suitable for heating and cooling control of 2-pipe fan coil units.The fan speed can be manually controlled by fan speed key or changed to high/middle/low speed automatically under auto mode to creat confortable indoor atmosphere and keep energy conservation
Sleeping function:
Temperature will be raised 1celsius every hour until 26celsius under this model.It is especially useful during mid-night in spring and autumn
Features:
1.graceful and elegant appearance
2.mounted into standard 86*86mm junction box
3.with high quality electronic components,high accuracy and reliable performance
4.industrial standard,green environmental protection
5.large lcd display,easy to operate
6.widely application,can be used in various temperature control areas
7.off memory function can memory the running conditioning
Specefication Dates: Model NO. | TX-868-222D digital room thermostat |
Application | 2-pipe FCU |
Suitable Valve | 2-Line or 3-Line |
Voltage | 220V |
Setting Temp | 10-30 ºC |
Mode | Heating and Cooling |
Fan Speed | H/M/L/Auto |
Sensor Element | Ntc 25ºC C/10k±10% |
Ambient | Temp:0-50 ºC Humidity<95% |
Installation | Vertical |
Shell Material | ABS Flameproof Plastic |
Suitable Valve | 2-Line or 3-Line |
Appearance | White surface |
Energy saving | Occupancy function |
Current | 3A |
Sensor | NTC10K |
Backlight | Blue |
Junction box | 86*86mm |
Power box | Divided/all-in-one |
Wiring port | ≤1.5mm² |
Accuracy | ±1celsius |
Dimension: | 88*92*40mm(W*H*D) |
Certification | CE |

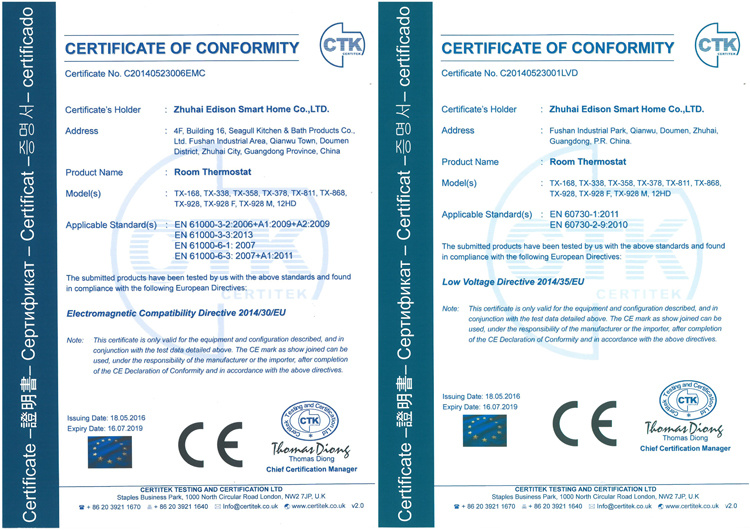

CE Certification:

About US
Company Introduction
Zhuhai Edison Smart Home Co., Ltd.(Stock Code: 837831) is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd (Stock Code: 002084).
Edison is devoting to R & D to manufacture and trade for room thermostats and valves series in the heating control, AC Control and smart home control products, which has obtained more than 40 invention patents and utility patents in the field of HVAC control and wifi, zigbee wireless technology, and achieved related professional certifications in Europe, America, Australia and other countries.
Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts". The freedom to chase our individual dream through our sweat, toil, imagination and creativity. And the imperative to strive together as well, to achieve a common good, a great good with our customers and suppliers.
Edison Focus on " Comfort and Energy Conservation"

TECHNOLOGY & QUALITY
High Quality Originates from High Standards.

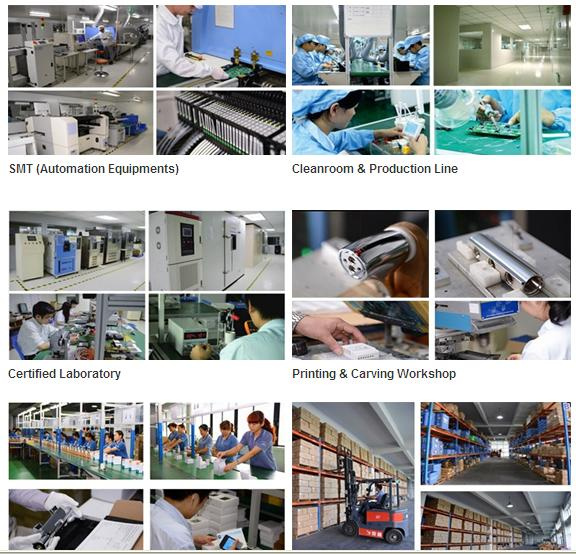

From raw material forming, brass casting, forging, zinc die casting, CNC machining, plating, calibration, SMT and electronic products assembling in a Class 100,000 cleanroom, Edison has full range of European industrial standard production processes in house, and we are aiming to provide competitive quality products with 100% on time in full delivery service
OEM /ODM order can be available
Edison has a strong design and R&D team and would like to undertake customized order included hardware, software and product design

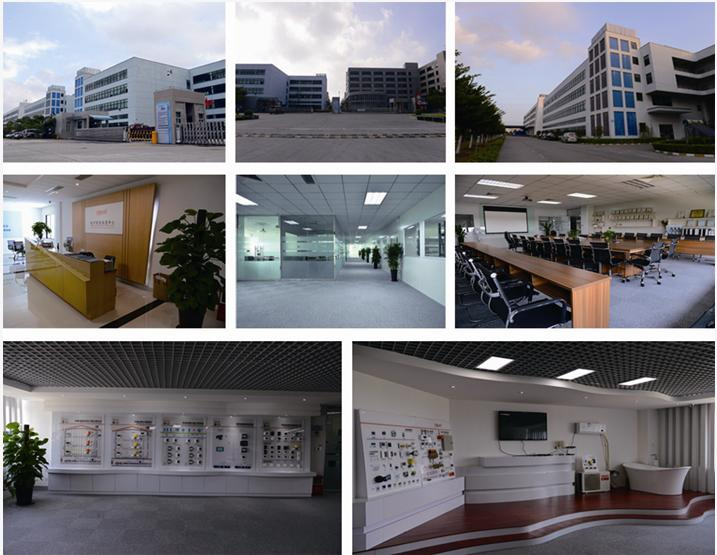

Zhuhai Edison Smart Home Co., Ltd. is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd. With the manufacturing base covering an area of 300, 000 square meters, which registered "Edison" trademark in European Union in 2003. In 2010, Edison won the "China Well-known Brand" title, and first passed "National Comfortable Housing Certificate" which was acknowledged by the National Housing and Urban & Rural Construction Ministry. Moreover, Edison won the Excellent Product Award at International high-tech Fair in 2012.
