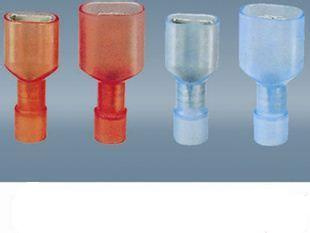

Fdfn Nylon Female Spade Connector, Insulated Terminal

Name: Fdfn Nylon Female Spade Connector, Insulated Terminal
Brand: all-electronics-online.com
SKU: 734993305
Availability: InStock
Rating: 4.5 (142 reviews)

Price:	US $ 0.24/Piece
Trade Terms:	FOB
Min Order:	3000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FDFN 2-187
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Various Size Available
Application:	Conduct Electricity
Type:	Socket Terminals
Material:	Copper

Product Description

Feature:
1. Material: Copper brass
2. Plating: Tin
3. Certificates: CE. ISO 9001: 2000
4. Various wire range

Our Advantages

Professional manufacturer price for 7 years
Factory price with competitive quality
On time delivery
Accept customer order, available in thickness and package
Flexible payment
The logo as you required
1. The color and the design all can be customized

ITEM NO	Plug-in standard	Dimension(mm)						Conductor Cross-section	color	direction
		W	F	L	DØ		B
FDFNY1.25-250	0.8*6.35	6.6	7.3	22.0	4.0	12.0		22-16A.W.G 0.5-1.5mm2	red	Imax=22-18A.W.G:10A
MDFNY1.25-250	0.8*6.35	6.35	7.7	23.0	4.0	11.0
FDFNY2-250	0.8*6.35	6.6	7.3	23.0	4.5	12.0		16-14A.W.G 1.5-2.5mm2	blue	Imax=16-14A.W.G:15A
MDFNY2-250	0.8*6.35	6.35	7.7	24.0	4.5	11.0
FDFNY5.5-250	0.8*6.35	6.6	7.3	23.0	5.0	12.0		12-10A.W.G 4-6mm2	yellow	Imax=12-10A.W.G:24A
MDFNY5.5-250	0.8*6.35	6.35	7.7	24.0	5.0	11.0

ITEM NO	Plug-in standard	Dimension(mm)				Conductor Cross-section	color	directon
		W	F	L	DØ
FDFNA1.25-250	0.8*6.3	6.6	8.8	21.3	3.9	22-16A.W.G 0.5-1.5mm2	red	Imax=22-18A.W.G:10A
MDFNA1.25-250	0.8*6.3	6.35	10.0	22.4	3.9
FDFNA2-250	0.8*6.3	6.6	8.8	21.3	4.4	16-14A.W.G 1.5-2.5mm2	blue	Imax=16-14A.W.G:15A

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
