Fecral Alloy Resistance Heating Wire

Name: Fecral Alloy Resistance Heating Wire
Brand: all-electronics-online.com
SKU: 808646915
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	US $ 15KG
Min Order:	5KG
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fecral Alloy Resistance Heating Wire
Model Number:	Alloy Wire 0cr25al5 for Heating Element
Application:	Heating, as Heating Element for Tubualr Heater,Fur
Conductor Material:	Aluminum
Conductor Type:	Solid
Insulation Material:	Customized,PVC,PE,Teflon,Rubber
Color:	Bright Finished for Fe-Cr-Al Alloy Heating Wire
Chemical Composition:	Ferrum,Chromium,Aluminium
Condition:	New
MOQ:	5 Kg

Product Description

Fecral Alloy Resistance Heating Wire

1 Introduction for alloy wire 0Cr25Al5 for heating element
Fe-Cr-Al alloy heating wire is mainly composed of ferrum,chromium,aluminium. It is widely used in various in many industries, such as metallurgical, chemical, glass, ceramic, and electrics for instance.

2 Features

Features of alloy wire 0Cr25Al5 for heating element
1	An excellent resistance to oxidation under heat
2	A limitation of intergranular oxidation
3	High electric resistance and long lifetime
4	Good performance of anti-carburizing, the atmosphere and surface of sulfur pollution

3 Application

Applications of alloy wire 0Cr25Al5 for heating element
1	industrial and civil heating-furnace
2	infrared equipment
3	liquefied gas infrared heat-resisting net
4	different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors

4 Size

Size
Wires	0.018-10mm
Ribbons	0.050.2-2.06.0mm
Strips	0.55.0-5.0250mm
Bars	D10-100mm

5 Main technical data

Model		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Chemical Components	Cr	12.0-15.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2

6 When you inquiry, please sepecify the following details:

Inquiry Details
1	Material model of the nichrome wire
2	Wire diameter; if strip, thickness and width
3	Quantity
4	Special requirements if you have

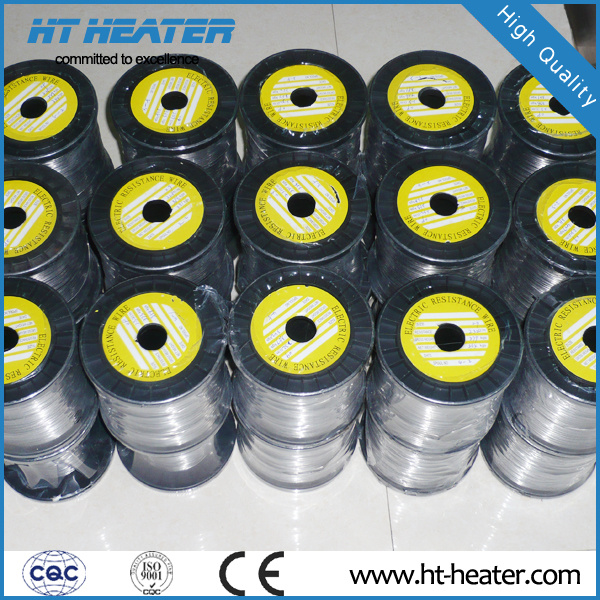

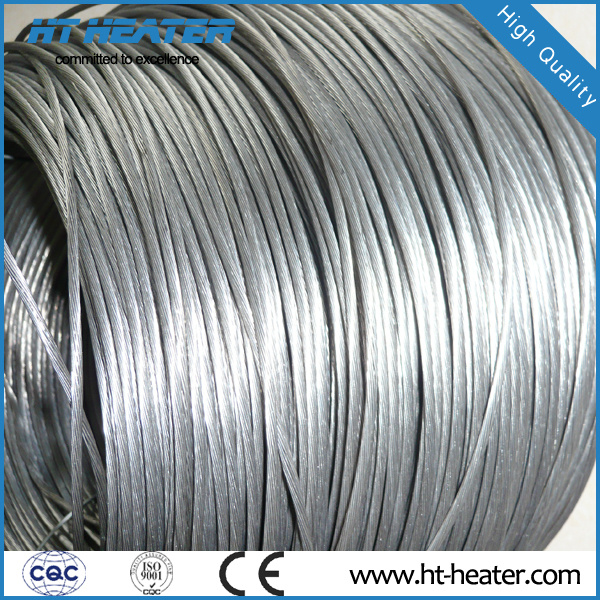

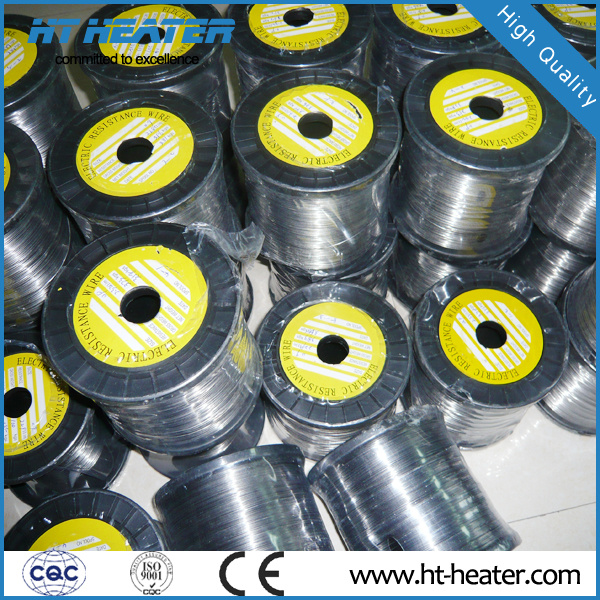

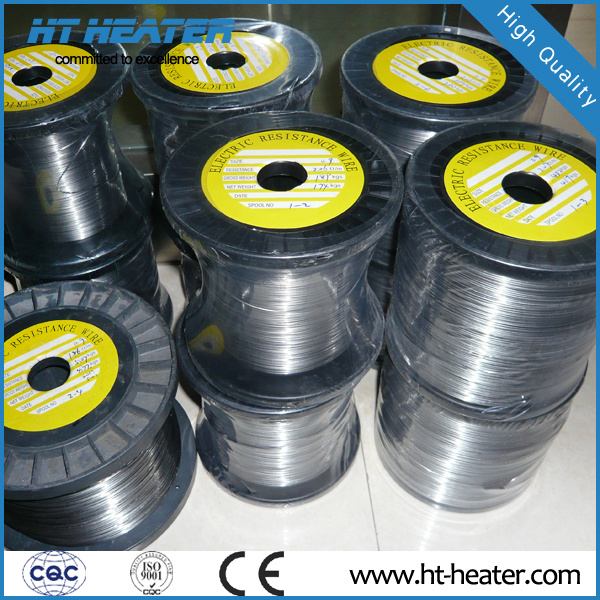

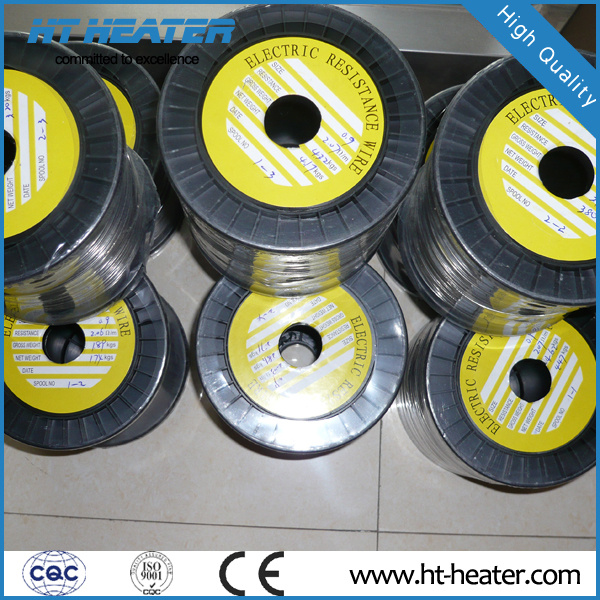

6 Products Photos

7 Contact Information

Please kindly contact us, if you are interested in our products.

Better service, price, delivery time we will assit you. Thanks a lot in advance!

Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
