Utility Electrical Co., Ltd. >> Feed Through High Current Cu/Al Screw Terminal Blocks

Feed Through High Current Cu/Al Screw Terminal Blocks

Feed Through High Current Cu/Al Screw Terminal Blocks
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT10-240
IEC: 60947-7-1
Wire Size: 35-240mm2
Voltage: 800V
Certificate: TUV
Operating Temperature: Max 80
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

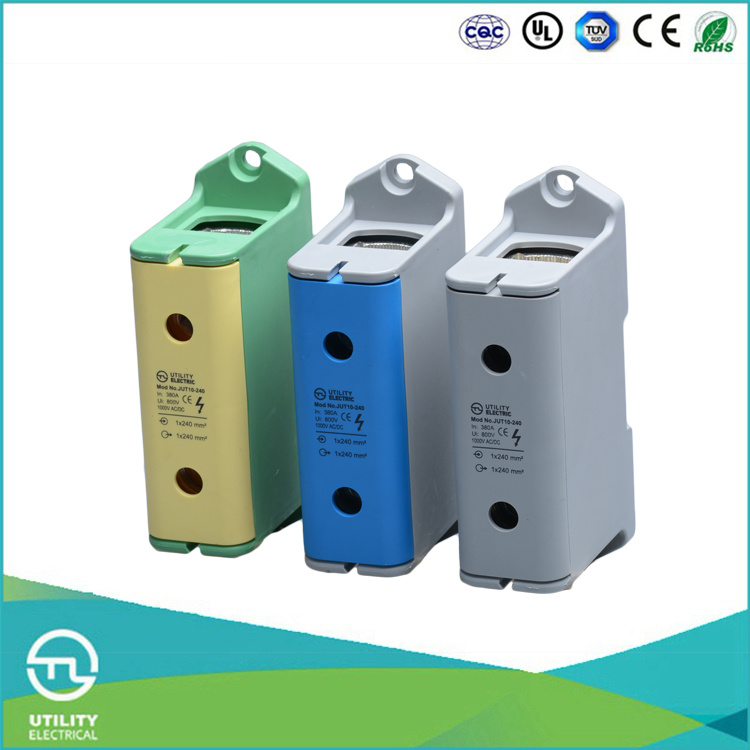

UTL feed through high current CU/AL screw terminal blocks din rail distributor connector
Distributor terminal blockJUT10-240
CertificateTUV  Rohs
MaterialBody : PA66 UL94V-0 , Conductor and screw : AL
Wire size35-240mm2
Voltage/CurrentAL :800V / 380A CU : 800v / 425A
Operating temperature  max 80ºC
Tighten Torque12NM (35-70mm2)    40NM ( 95-240mm2)
Weightnet 306g per unit
colour     yellow/green  ,  grey  ,  blue
screw       Hexagon 8mm
Features:

JUT10 type is distributor kind
one in one out
terminal block
always be used in the industry series
big current industry terminal block
CU /AL type terminal block
the conductor is all AL material , you need toghther using a cu / al cold connector when connected with a CU cable

UTILITY are Cengcengbaguan accordance with the appropriate standards by the professional staff to produce marketable, used worldwide industrial automation products as their responsibility to actively follow the introduction, learn technology, science and technology innovation internationally famous brand products, forge ahead.
    "UTILITY" service drew our customers appreciated."Takeoff UTILITY, proud UTILITY man",who is the UTILITY with advanced management,strong technical strength, perfect process technology,first-class testing equipment and excellent mold processing technology to produce the premise of higher quality products,with excellent sales team,well sales network and professional services,open up the market to win a new chapter today.
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
