| Prod Model: |
FE7-63 |
| Volatage: |
240/415 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Poles Number: |
2 |
| Certification: |
CCC |
| Installation: |
DIN Rail |
Product Description

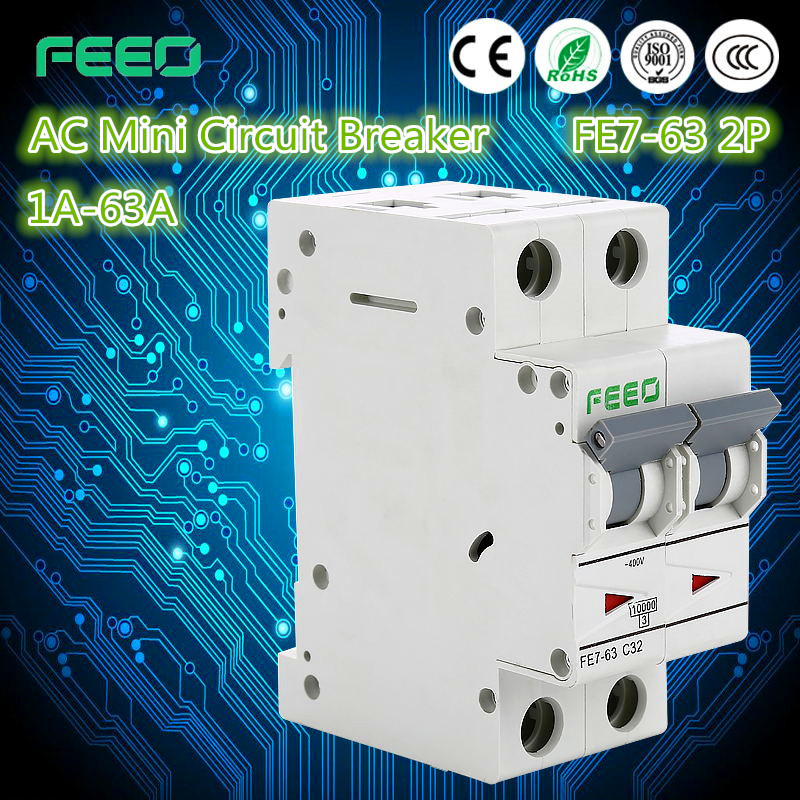

Feeo Fe7-63 AC 2p MCB Miniature Circuit BreakerProduct Description
MCB Circuit Breaker Application:FE7-63 have protective function as overload, and are used in lighting distribution system in industry commerce and dwelling, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive, action convenient, multi pole assembling, long life ect. The are mainly adapted to the circuit of AC 50Hz, 250V in single pole, 450V in double, three, four poles for protecting overload and short circuit. Mean while, they are also used in turning on or off the electric apparatus and lighting circuit under the normal conditions.MCB Circuit Breaker Parameters:| Item | AC MCB |
| Code | FE7-63 |
| Pole | 1P | 2P | 3P | 4P |
| Current | 1A,3A,6A,10A,16A,20A,32A,40,50A,63A |
| Voltage | 250v/450v |
| Standard | IEC/EN60898 |
| Breaking Capacity | 6KA,10KA |
| Characteristic Curve | B,C,D |
| Working Temperature | "-5°"to +40° |
| Protection Degree | IP20 |
| Electrical life | More than 8000times |
| Installation | 35MM DIN RAIL |
| Installation Altitude | ≤2000M |

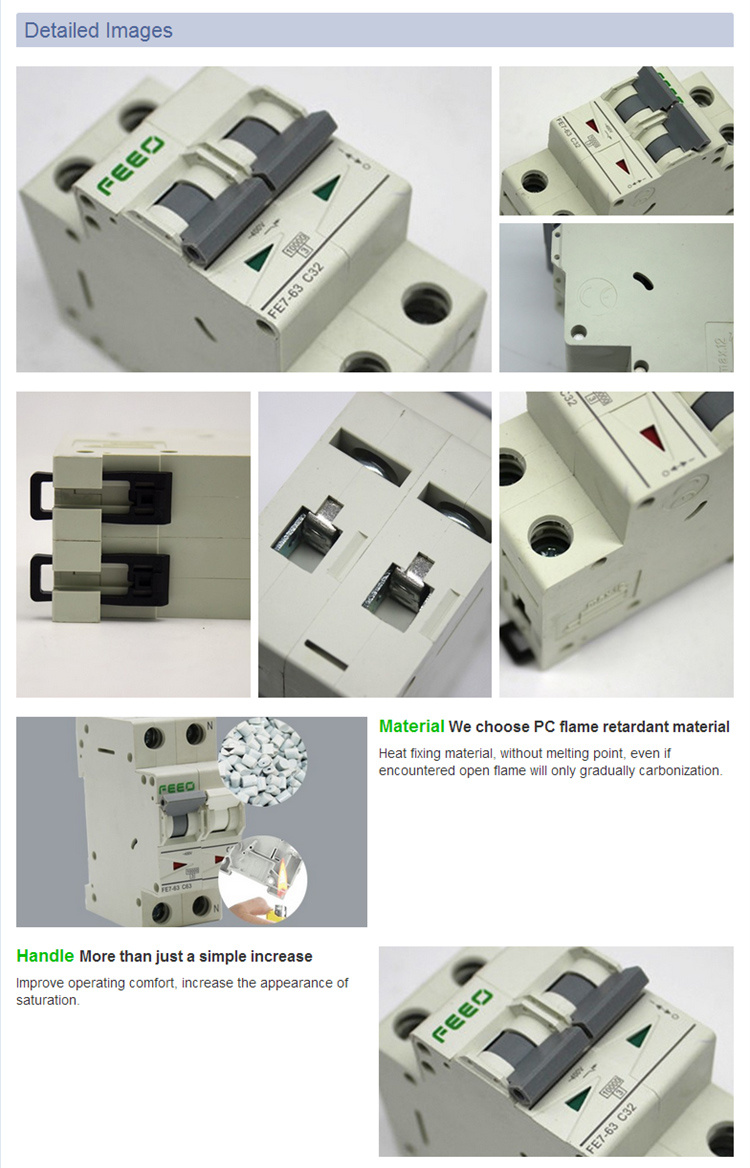

Detailed Images
Packaging & Shipping

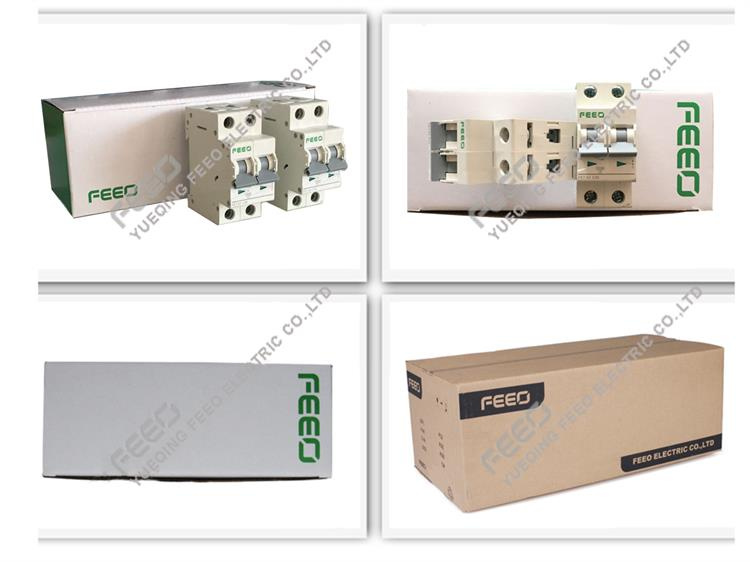

MCB Circuit Breaker Package:Standard export carton packing:
1P AC MCB 120pcs/ctn
2P AC MCB 60pcs/ctn
3P AC MCB 40pcs/ctn
4P AC MCB 30pcs/ctn
Carton Size 47*23.5*18CM3
G.W./N.W.: 15/14.5kgs
MCB Circuit Breaker Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
MCB Circuit Breaker Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your AC MCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your AC MCB quality?
A: Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q: I need your price list of all your products, do you have a price list?
A:We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
