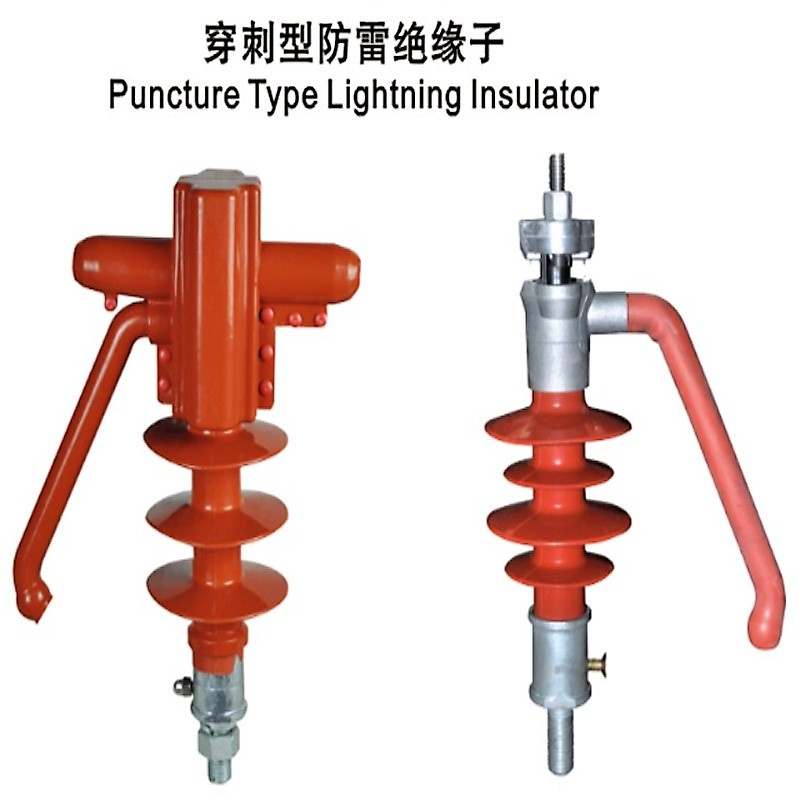

FEG-12/5B Puncture Type Lightning insulator
| Price: |
US $ 10-10000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FEG-12/5B |
| Rated Voltage: |
6-12KV |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Type: |
B Type Insulator |
| Structure: |
Overhead line Insulator |
| Connection Method: |
Puncture Type |
| Brand: |
RIGHT |
Product Description
General
This product is applied to the insulation support of overhead lines, but also has the protective function to prevent overhead insulated conductors from striking, breaking, insulting, and reducing lightning strikes. The principle is that when the lightning overvoltage exceeds a certain number of insulation, a certain value is blocked. The flashover is caused by the flashover between the arc rod and the steel foot of the lightning protection pillar, and the short circuit channel is formed. The continuous power frequency arc burns at the discharge gap. To protect the wire from burn. This product is used for insulation line also has a puncture energizing function, the installation is very convenient and reliable. Without stripping of insulation layer can avoid the core water and corrosion, but also greatly reduce the labor intensity of the operators. Due to the post insulator and arc protection hardware (such as potential) be made one from the ring network power supply load (from supply side) side effects, more lines and simple appearance and greatly reduces the cost.

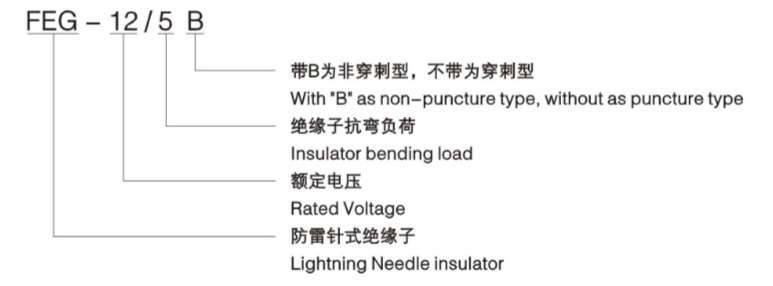

Model Number explanation

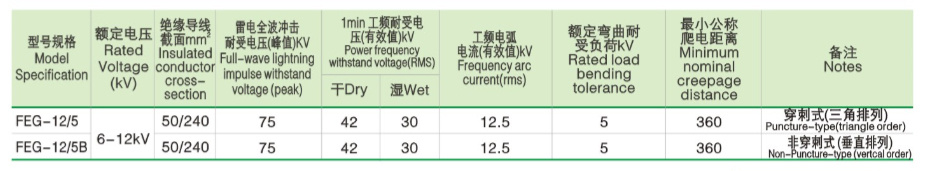

Model specifications and performance parameters in table
Company Information
Certificate
Performance Guarantee
Once u buy the product manufactured by Haibian Power Equipment (CHHP) can get 24 months performance guranantee after delivery date, or if there is any special reques, pls do not hesitate to contact us...

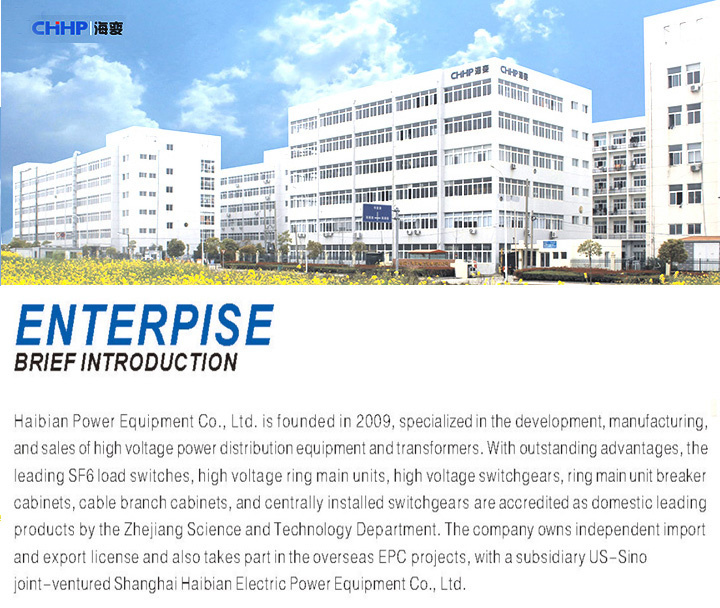

Haibian Power Equipment Co., Ltd. is founded in 2009, specialized in the development, manufacturing, and sales of high voltage power distribution equipment and transformers. With outstanding advantages, the leading SF6 load switches, High and Low Voltage Switchgear, Ring Main Unit, Transformer, Distribution Box, Compact Substation, Load Break Switch, Circuit Breaker and centrally installed switchgears are accredited as domestic leading products by the Zhejiang Science and Technology Department. The company owns independent import and export license and also takes part in the overseas EPC projects, with a subsidiary US-Sino joint-ventured Shanghai Haibian Electric Power Equipment Co., Ltd.

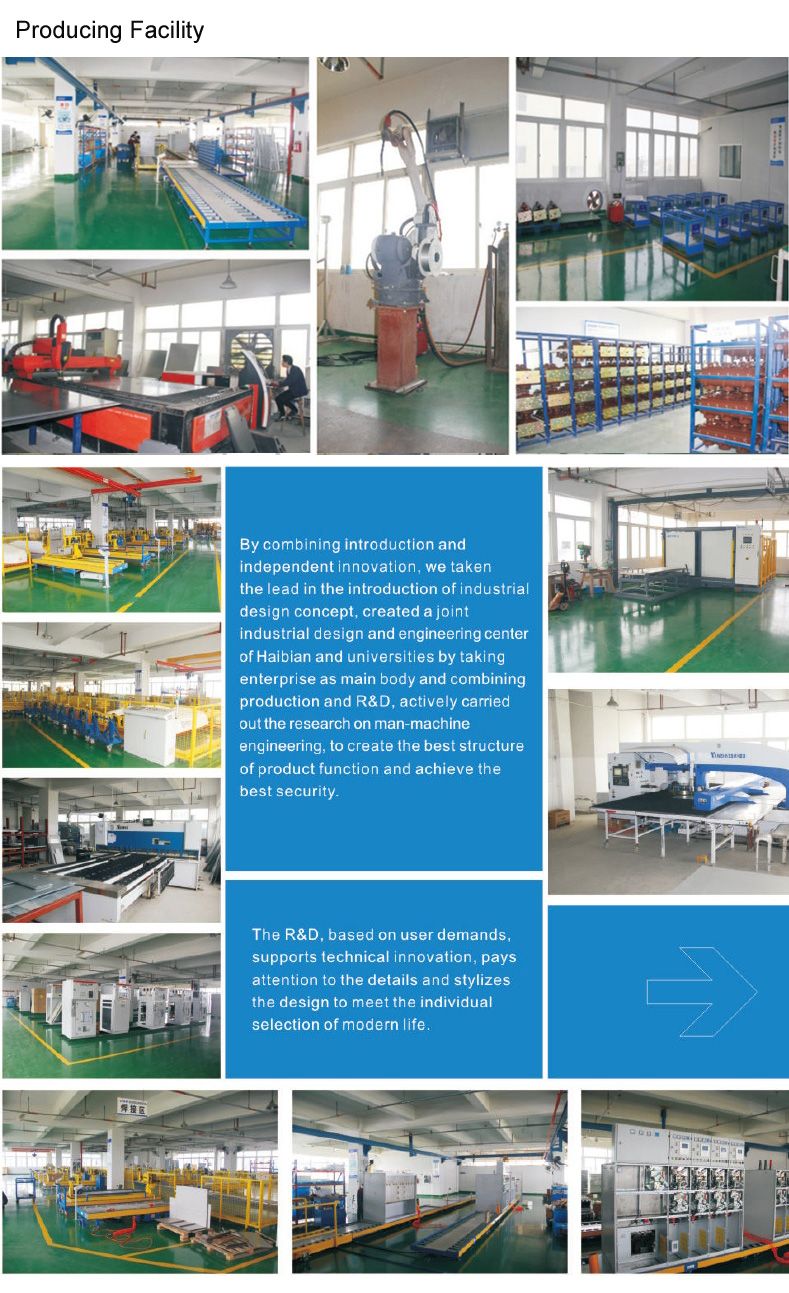

The company owns advanced equipment and strong technologic strength. The special clean production workshop owns 2 latest automated production lines, 2 imported Panasonic welding robots, and first-class high-precision CNC sheet metal shearing, bending, and stamping centers both home and abroad. In terms of inspection, the company sets up Yueqing corporate technology R&D center, owns "partial discharge" lab, and adopts the Wayeal intelligent leak testing equipment. With the comprehensive utilization of computer-aided equipment system, the company sets up multiple design control centers and supplies professional management information system for the enterprise resource management, human resource management, and finance management.
"Speciality-based, winning with quality, human-oriented" is the company's long-term development thinking. The company adopts the way of independent R&D and the introduction of foreign advanced technology and established and improved an enterprise product system. The products manufactured passed the type test of Northwest Institute of Plateau Biology, CAS and are used widely by the power grid systems and subsidiary switch companies in Shanxi, Zhejiang, Hubei, Anhui, Henan, and Heilongjiang, winning the wide applause. The company boasts rich humanistic culture to gain high acceptance from employees. The company is honored the titles of Zhejiang High-Growth Technology-Based Small and Medium-Sized Enterprise, Zhejiang Technology-Based Enterprise, Wenzhou Credit Management Model Enterprise, Yueqing Famous Trademark, and Yueqing Famous Product.
"Innovation, development, cooperation, harmony" are the business concepts of Haibian people. Faced with the vigorous development of the electric power industry in the world, Haibian people will always continue to devote rigorous, high quality, efficient products and services to the extensive electric power users and create the history of Haibian people in the glorious development of humankind electric power industry.
We warmly welcome your visits and guidance.
