Female 9-37pin D-SUB Solder Connector

Female 9-37pin D-SUB Solder Connector
Price: US $ 0.001/Piece
Min Order: 1000/Piece
Pay Type: T/T,Paypal

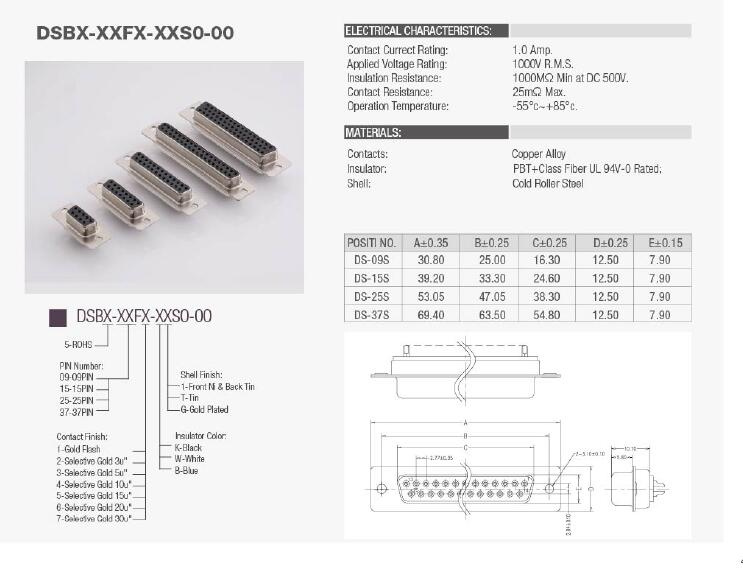

Prod Model: DSBX-XXFX-XXS0-00
Operation Temperature: -55ºC - +85 ºC
Contact Resistance: 25mΩ; Max

Product Description

Suzhou e-Conn : Solution &  OEM/ODM provider

Product Details
Basic Info.
Interface Type:D-SUB
Connector: D-SUB
Universal:Universal
Data Transmission Function:Data Transmission Function
Surface:Smooth
Charging Function:Charging Function
Customized:Tranditional ,can customized

Part Number:
DSBX-181X-XXR0-1X  'X' here means choosable.




Additional Info.
Current  Rating1.0AMP
Current  Resistance25mΩ Max
Insulation Resistance1000mΩ Min
Withstand Voltage1000V AC/Minute
Operation Temperature-55°C to +85°C
Contact MaterialCopper Alloy
Contact PlatingAu Or Sn over Ni
Insulator MaterialPBT+Class Fiber (UL94V-0)
StandardPBT +30%GF
shell MaterialCold Roller Steel
Revit/HarpoonBrass,Sn over Ni
Screw MaterialBrass,Plating:Ni Plated

Packing:Tray
StandardRoHs Compliance
OriginKunshan, China
Production Capacity100,000,000PCS/M



Product Description
Features:

1. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
2. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

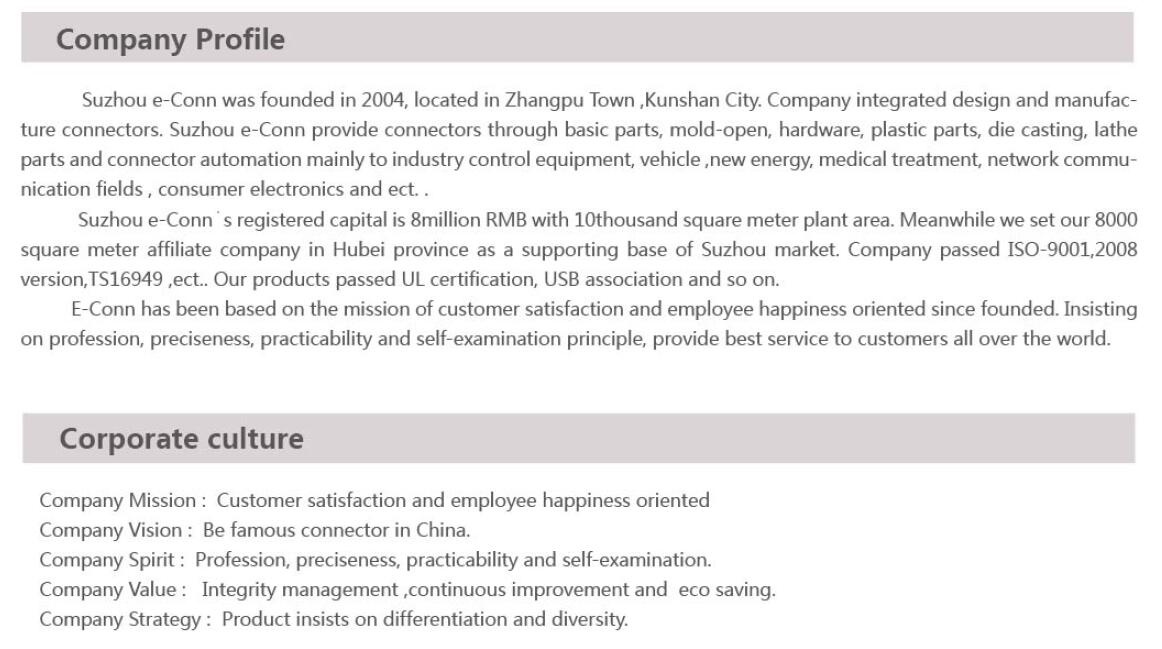

Company overview:







 http://www.sz-econn.com/
Suzhou e-Conn provide connectors through basic parts, mold-open, hardware, plastic parts, die casting, lathe parts and connector automation mainly to industry control equipment, vehicle, new energy, medical treatment, network communication fields, consumer electronics and ect...Meanwhile suzhou e-Conn have been set up 8000 square meter affiliate company in Hubei province as a supporting base of Suzhou market.

Stratety: Insist on differentiation& diversity.

Spirit: Profession, Preciseness, Practicability, Self-examination

Value: Integrity management, continuous improvement and eco saving

Vision: Be famous connector supplier in China.

Mission: Customer satisfaction and employee happiness oriented

Logo of e-Conn

Color:

Logo mainly adopted sky blue color represents wide, wise, prudent company style.

E:

Take the first alphabet from Electronic and Ethernet represents e-Conn is engaged with computer related electronic industry.

Conn:

Take half of the word conn from word connector represents our main products are integrated design and manufacture service of connector.

Retrography n:

Retrography n represents differentiation, diversity characteristic of e-Conn connector.
