Chinasky Electronics Co., Limited >> Female Bulkhead W/Nut & Washer CCTV BNC Plug (CT5052)

Female Bulkhead W/Nut & Washer CCTV BNC Plug (CT5052)

Female Bulkhead W/Nut & Washer CCTV BNC Plug (CT5052)
Price: US $ 0.05-0.2/Piece
Min Order: 2000/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: CT5052
Connector Type: BNC Plug
Body: Zinc Alloy, Nickel Plated
Center Pin: Copper, Gold Plated
Boot: Zinc Alloy, Nickel Plated
Net Weight: 4G/Piece
Type: Generally Coaxial Connector
Application: Connector
Brand: Chinasky

Product Description

Female Bulkhead W/Nut & Washer CCTV BNC Plug (CT5052)
BNC Female Bulkhead W/NUT & Washer / CCTV Connector / BNC Connector CT5052

Description:
CCTV BNC Female Bulkhead W/NUT & Washer
Material:
Body-zinc alloy, nickel plated
Center pin-copper, gold plated
Net Weight: 5g/piece

Features:
Temperature range: - 40~ +155
Insulation resistance: 5000MΩ
Character impedance: 50Ω
Frequency range: 0~3GHZ
Disengage force: 0.6N
Contact resistance: center conductor1.5mΩ; outer conductor1mΩ
Durability: 500

Application:
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).

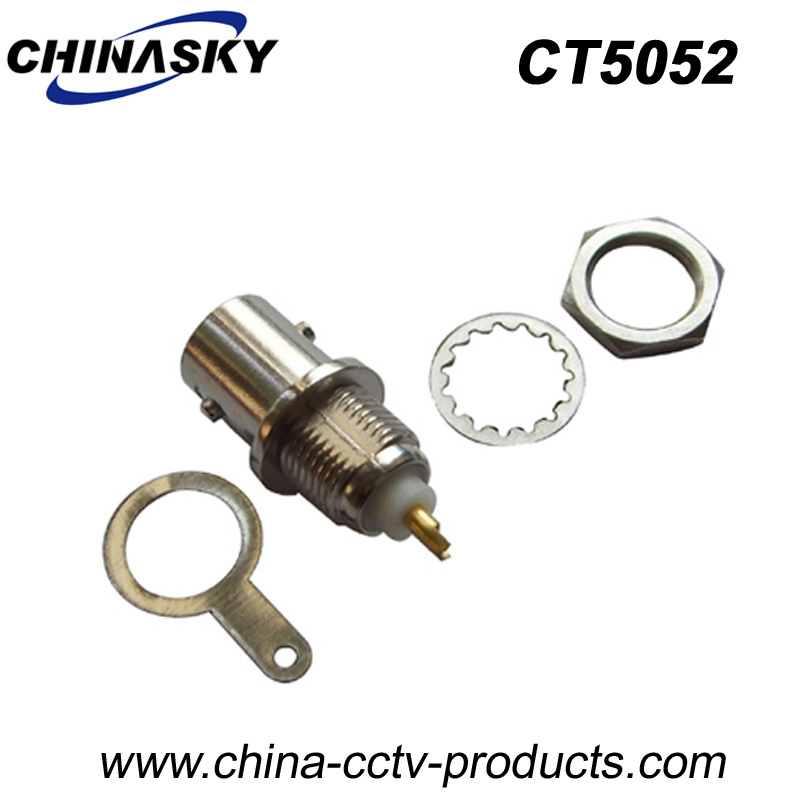

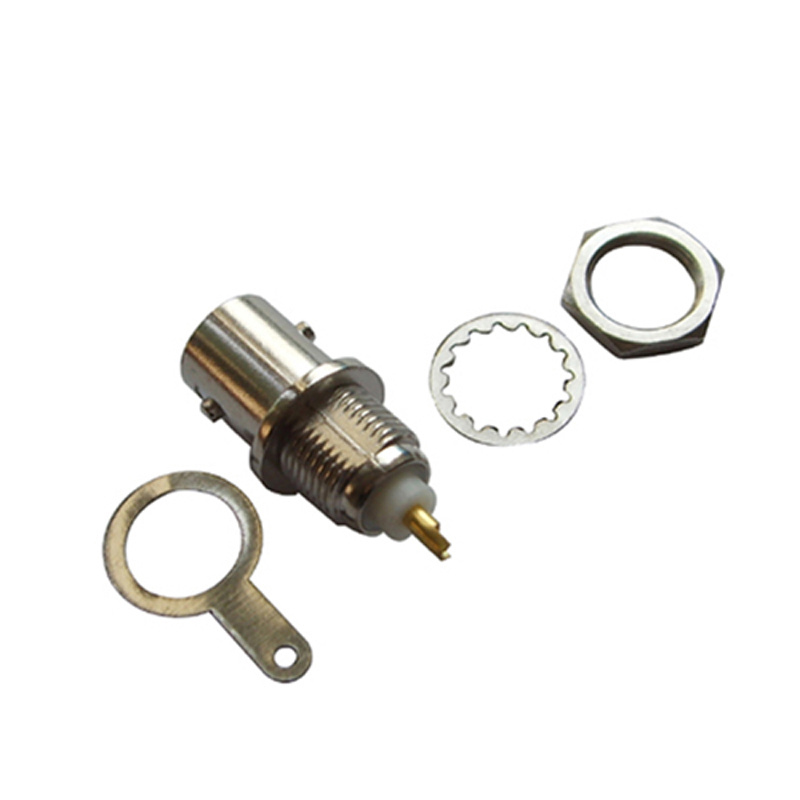

The photos of Female Bulkhead W/Nut & Washer CCTV BNC Plug (CT5052)

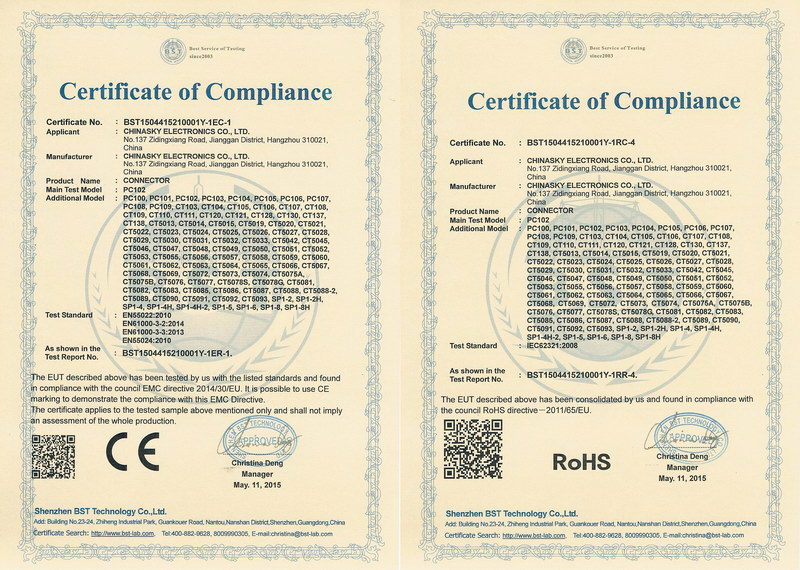

Certification of Female Bulkhead W/Nut & Washer CCTV BNC Plug (CT5052)

Chinasky Electronics Co., Ltd. is the leading manufacturer and exporter of CCTV products in China. We are specialized in developing, manufacturing and exporting CCTV power supplies, Video Baluns, BNC connectors, CCTV cables, CCTV Tools & CCTV testers and other CCTV accessories with more than 10 years' experience in the security and surveillance industry. We have established business relationships with customers all over the world with good reputation and feedback for our products and service.

The mission of Chinasky Electronics is to provide quality products and competitive prices to our customers. With a strong research and development team, well-established production capacity, and very strict quality control system, we are able to ensure your security and surveillance needs. We have an energetic, enthusiastic, professional and powerful sales team to be in charge of all exporting inquiries and orders and provide quality advice to achieve customers' OEM and ODM requirements.

In order to guarantee our products to be exported and re-sold in other countries safely, our products are in accordance with global testing standards, such as CE (EMC & LVD), IEC60950-1, UL/cUL, SAA, GS, TUV, PSE, RoHS, etc. We work with accredited third party labs (SGS, INTERTEK, ANBOTEK, CPC) to ensure all products we supply are compliant and valid for import into the target markets. We have made a lot of certificates and test reports for our exported products from accredited third party labs.

We aim to create long-term, win-win partnerships with our customers. We are aware that trust and communication are essential for long-term partnerships. We value our customers' success as well as ours.

If you are interested in any of our products and services, please don't hesitate to contact us. We are ready to reply you within 24 hours after receipt of your request.
