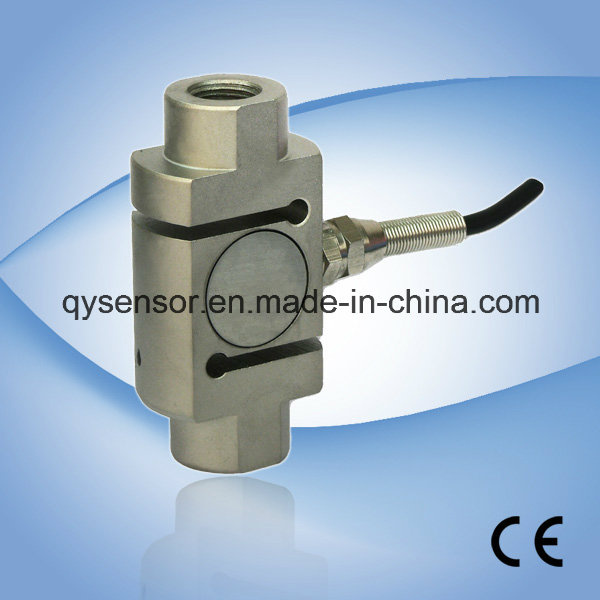

Female Thread Installation Weight Sensor/ Directly Installtion Load Cell

Name: Female Thread Installation Weight Sensor/ Directly Installtion Load Cell
Brand: all-electronics-online.com
SKU: 773901325
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-32C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	1000kg
Rated Output:	2.0 Mv/V
Overload:	300%Fs
Excitation Voltage:	9~12V
Product Name:	Female Thread Installation Weight Sensor

Product Description

QH-32Cload cells are available in the capacities from 500 kg to1000 kg
S beam style. Tension and/or compression loading.
Alloy steel or stainless steel,Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices. Features:
Capacity :500 kg to 1000 kg
Defend grade: IP66
High accuracy.
Alloy steel or stainless steel.
Integral installation, Low profile. reliable performance

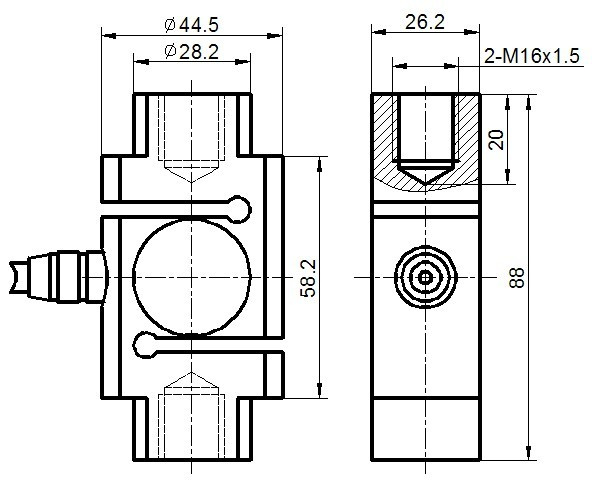

Electrical connection and Dimensions:
Technical Specifications

Specifications:
capacity	Kg	500~1000
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.04
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero balance	%FS	± 1.0
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.02
temperature coefficient of ZERO	%FS/10ºC	± 0.03
