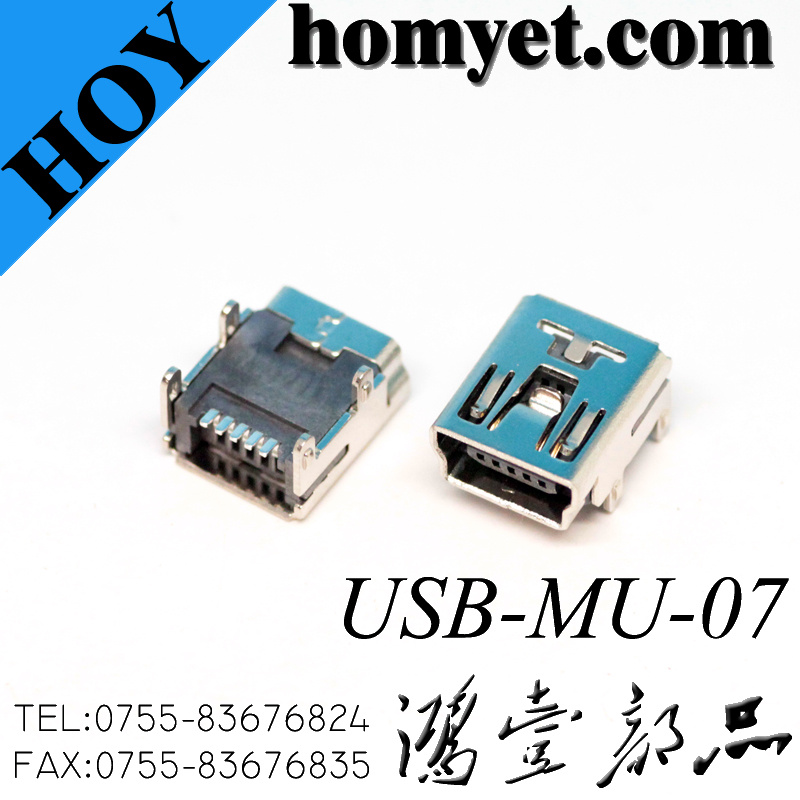

Female USB Jack Mini USB Connector

Prod Model:	USB-MU-07
Type:	USB
Packing:	Reel&Tape Packing
Gender:	Female
Application:	Microwave

Product Description

Features:
1. With A Type/B Type/C Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

Material
1. Housing: LCP Black
2. Terminal: Phosphor Bronze
3. Shell: Brass

Applications:
The can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.

Specification

Eelectrical Characteristics
Contact Curren Rating	0.2A
Voltage Rating	48V DC
Withstanding Voltage	500V AC for 1 Min.
Insulation Resistance	100MΩ Min.
Contact Resistance	50mΩ Max.
Mechanical Characteristics
Insertion Force	44.1 N (4.5kgf) Max
Withdrawal Force	9.8 N (1.0kgf) Min.,3 9.2N( 4.0kgf) Max.
Durability	10000 cycles at 100±50 cycles per hour
Environmental Characteristics
Operating Temperature	-30ºC to +70ºC

Packaging & Shipping
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

Why Choose Us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 1000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
