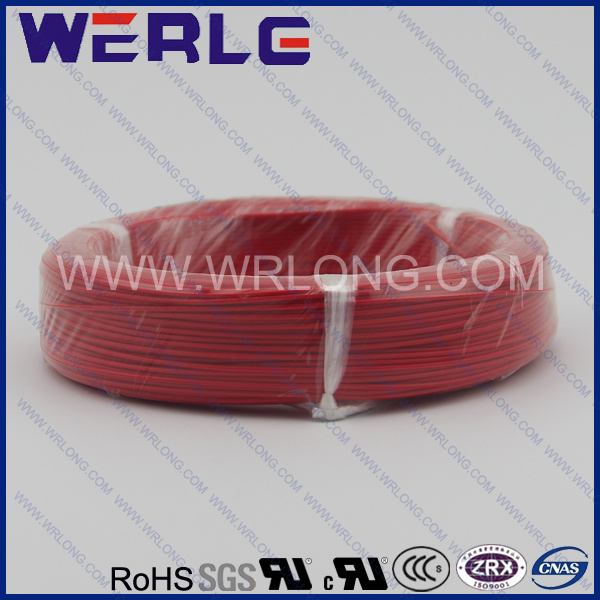

FEP Teflon Insulated Copper Strand 2mm Wire

Name: FEP Teflon Insulated Copper Strand 2mm Wire
Brand: all-electronics-online.com
SKU: 719558635
Availability: InStock
Rating: 5 (148 reviews)

Price:	US $ 0.05-1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AF200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Af200
Temperature:	200 Centidegree
Voltage:	300V,600V
Size:	2mm
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Certification:	RoHS
Conductor Material:	Tinned Copper
Insulation Material:	FEP Teflon
Range Of Application:	Cold Resistance
Brand:	Werle

Product Description

Fep teflon insulated copper strand 2mm wire

UL certificate RoHS CCC

GB/T19001 ISO9001

Nominal Voltage: 300V

Temperature Range: -100~+200

O. D. Tolerance: ± 0.10mm

Testing Volta: 2500V

Conductor: Tinned Copper

Insulator: FEP TEFLON

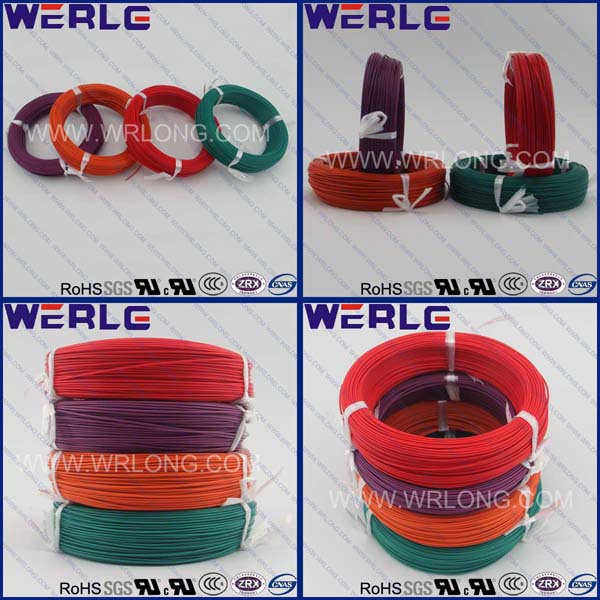

Colours: Whit-bule-red-black-brown-yello-wgreen-transparent-yellow/green

They are the same with then inner fixed wires for Home Electric applinaces, Lighthing equipments, mechanical electrical machines

Conductor		Over Diamter mm	Packing mt/coils
Nominal section mm2	Conductor Construction No./mm	Over Diamter mm	Packing mt/coils
0.12	7/0.15	0.79	500
0.20	7/0.20	0.97	500
0.30	7/0.23	1.10	500
0.35	19/0.15	1.15	500
0.50	19/0.18	1.32	500
0.75	19/0.23	1.59	200
1.00	19/0.26	1.78	200
1.20	19/0.28	1.88	200
1.35	19/0.30	2.00	200
1.50	19/0.32	2.08	200
2.00	19/0.37	2.34	200
2.50	19/0.41	2.55	200
3.00	19/0.45	2.81	100
4.00	37/0.37	3.13	100
6.00	37/0.45	3.72	100
10.00	84/0.39	5.80	100
16.00	126/0.39	7.00	100
20.00	126/0.40	8.00	100
25.00	196/0.40	8.80	100

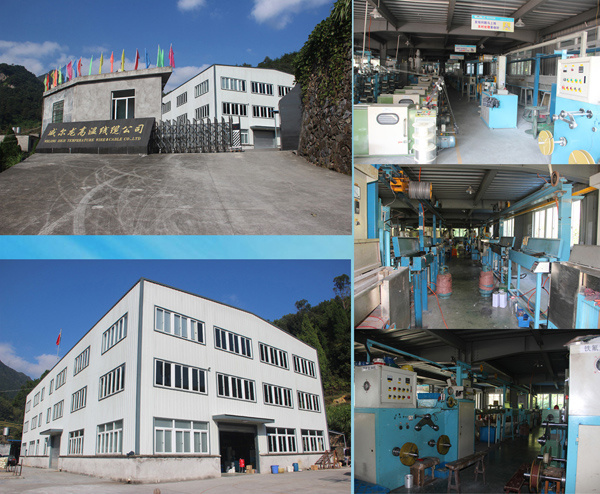

ZHEJIANG WRLONG HIGH TEMPERATURE WIRE & CABLE Co., Ltd is a modernized enterprise which has specialized in high-temperature wire and cable for many years. It locates in the biggest production base of low-voltage appliance in China_YUEQING CITY, ZHEJIANG PROVINCE and it is next to OUJIANG rivers whose throughput is beyond thousands of ton every day as well. It is obvious that its transportation or traffic is very convenient and expeditious.

Our company owns the most advanced production equipment in China at present and we have imported the direct inverter microcomputer-controlled production line device from England. It has all sorts of detection device, abundant funds and trained professionally technicians as well.

Our leading products contain the teflon wire and cable which is used in Aerospace and Astronautics and high - temperature wire and cable which contains the fluoropolymers. Its types have AF46-200, AFK-250, AFPF-200, KFFR-250 and so on. Our company also produce high-temperature precise compensating conductor and its types are KX, KC, BC, SC, EX, IX, TX, NX, NC, EX and so on.

Our products have passed the certification of ISO9001-200, CCC, RoHS, UL and other test reports for the products from relevant organizations or institutions with the persistent efforts of all of the staff in WERLE and the products can find a ready market all over the world.

Our company sticks to regard the technology as guide, quality in pursuit of development as management ideas, quality create famous brands as tenet and thinks highly of quality management of the products in order to realize the integration of production, detection, selling and service and internationalization of the markets.

Society developping and make progresses gradually, WERLE strives with pressure, explore with urgence, struggle with blueprint and contend with smile for better future with the new and old clients together!
