Ferrite Cores Inductor Use in Power Supply/Power Amplifiers

Name: Ferrite Cores Inductor Use in Power Supply/Power Amplifiers
Brand: all-electronics-online.com
SKU: 824389945
Availability: InStock
Rating: 5 (141 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LGA
Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Safety Certification:	CQC03003095~3097
Other Certification:	RoHS
Productor Name:	Stable, Low Loss Magentic Bar Inductor
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Liwang

Product Description

State
Low cost design,Use ferrite cores;
Low DC Resistance and High saturation current;
Coated with varnish;
Lead free products, RoHS compliant
Widely used in Power Supply/Power amplifiers/Switching power
supplies/Output antenna and other filters/Monitors/TV Sets/UPS,etc

Feature &Application

Feature:
1.Low cost design.
2.Use Ferrite cores.
3.Low DC Resistance and High saturation current.
4.Coated with varnish.
5.Excellent reliability.
6.Lead free products,RoHS compliant.

Application:
Widely use in Power Supply/Power amplifiers/Switching power supplies/Output antenna and other filters/Monitors/TV Sets/UPS,etc.

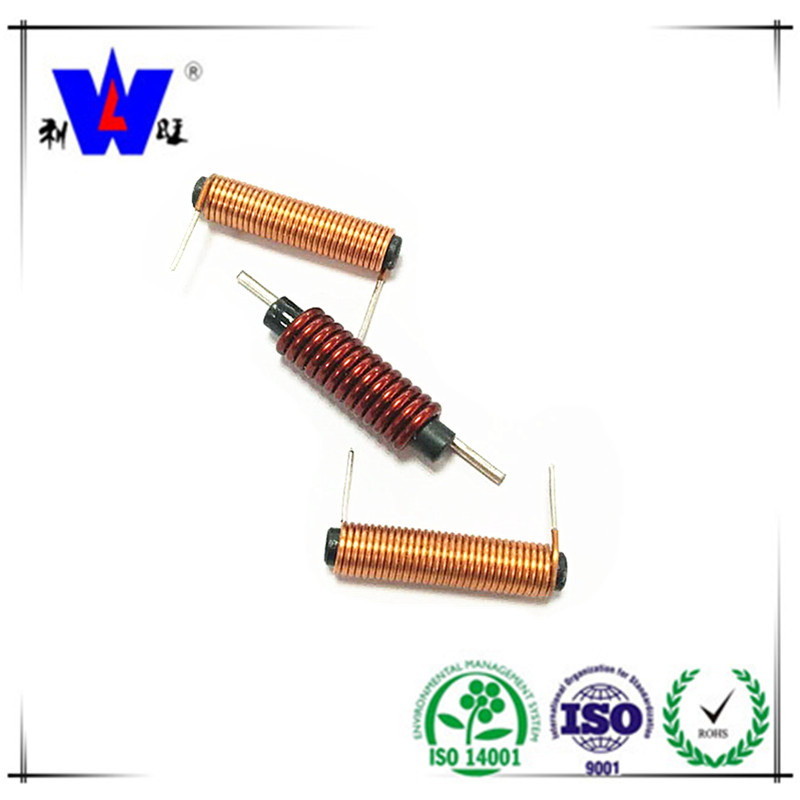

odel:	Ferrite Rod Inductor
Alternative name:	Ferrite Rod Inductor,Ferrite Rod Core Choke Coil, Ferrite Rod Core Inductor
Part Number:	R 314, R 315, R 316, R 410, R 415, R 515, R 520, R 615, R 620, R 625, R 628, R 630, R 820, R 840, R 1022, R 624, R 6*30,
Function:	1.Output smoothly in Power Supply 2.Chopper control 3.Output smoothly (LPF) in large current digital amplifier 4.Switching Mode Power Supply output smoothing circuit 5.Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) filter 6.Other oscillation circuits
Product Samples:	20-30pcs samples ,freight collect.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
