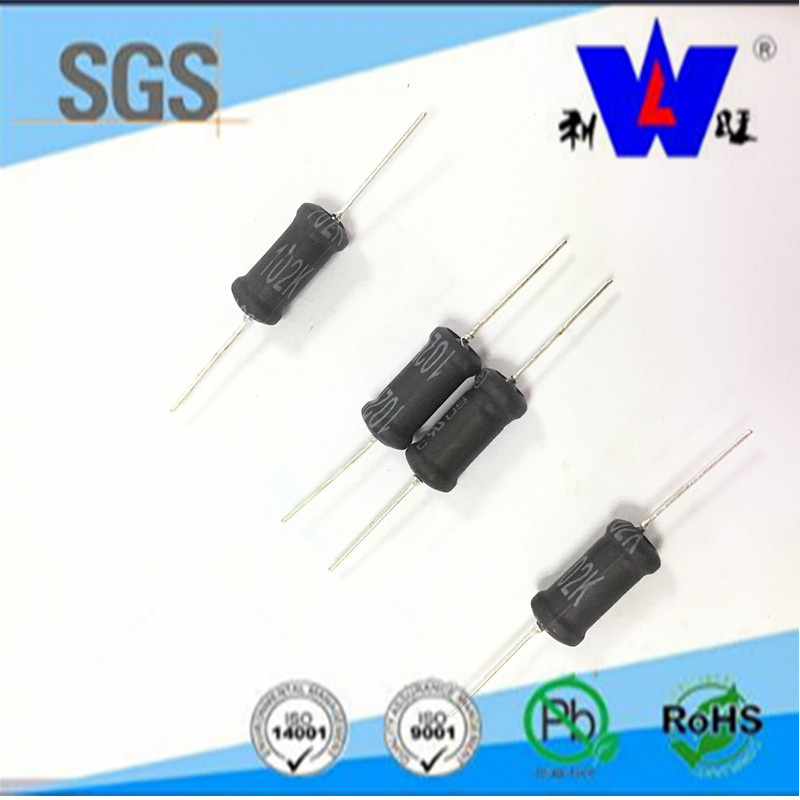

Ferrite Drum Core Inductors with High Quality and Factory Price

Prod Model:	LGB
Environmental Certification:	ISO14001
Type:	Fixed Inductor
Structure:	Magnetic Bead
Brand:	Liwang

Product Description

Place of Origin: Jiangsu, China (Mainland)
Brand Name:
Liwang

Specifications
1.Filter Inductor
2.Inductance:Measured at 1Khz with no DC current
3.Solid soft copper wire
4.Pre-tinned lead,polyolefin tube
1.High Inductors & inductors
*Size:0306~1016
*Inductance:1UH~47000UH
*Tolerance:+/-10%
*Short Lead time

2.Features
   a. Printed circuit mounting (axial leads)
   b. Protected by polyolefin sleeve
   c. Pre-tinned leads
   d. High saturation bobbin used, allowing high inductance with low DC resistance


1.Shielded and unshielded types available
2. Ferrite bobbin core, low core loss at frequency
3. Size: 3*6mm;4*6mm;6*8mm;8*10mm;10*12mm; 10*16mm ect.
4. Inductance Range:1uH ~47000uH
5.Winding covered with shrinkable tube
6. Magnetic shielding,used in high-density mounting configurations
7. Excellent Q-frequency characteristics
8. High withstanding voltage and insulation resistance
9. Operating temperature:-20°c to 105°c(include coil heat)
10. Storage conditions:-20 °c to 85°c(do not expose to direct sunlight(JIS C805))

3.Electrical
   Inductance: Measured at 1Khz with no DC current
   Current Rating: Maximum continuous operating current based on a 50°C rise
   Dielectric Rating: 2500 VRMS between winding and outer circumference to within 0.25of the insulating sleeve edge
   Temperature Range: -55°C to +105°C




4.Primary advantage:
1 Professional engineer
2 Qualified material competative price
3 Good after-sale service
4 RoHs compliant, CE certification

5.Mechanical
  Wire: Solid soft copper
  Terminals: 20 AWG tinned copper leads

Product:	Fixed Leaded Power Inductor Radial  Ferrite core Inductor
Wire Running Method:	Single-Layer Winding
Package	Standard Bulk Packaging
Certificated:	ISO9001
MOQ:	No MOQ for the trial order
Samples:	10-50pcs free samples for freight collect.

Payment Type	•By T/T. 30% prior to order confirmation and samples  approval, 70% upon receipt of B/L copy.   • L/C
Delivery Time	30days
Port	Changzhou
