Fiber 1X2 Bare Fiber Optical Switch for Local Area Network and Low Insertion

Name: Fiber 1X2 Bare Fiber Optical Switch for Local Area Network and Low Insertion
Brand: all-electronics-online.com
SKU: 817647765
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber 2x4 Optical Switch
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

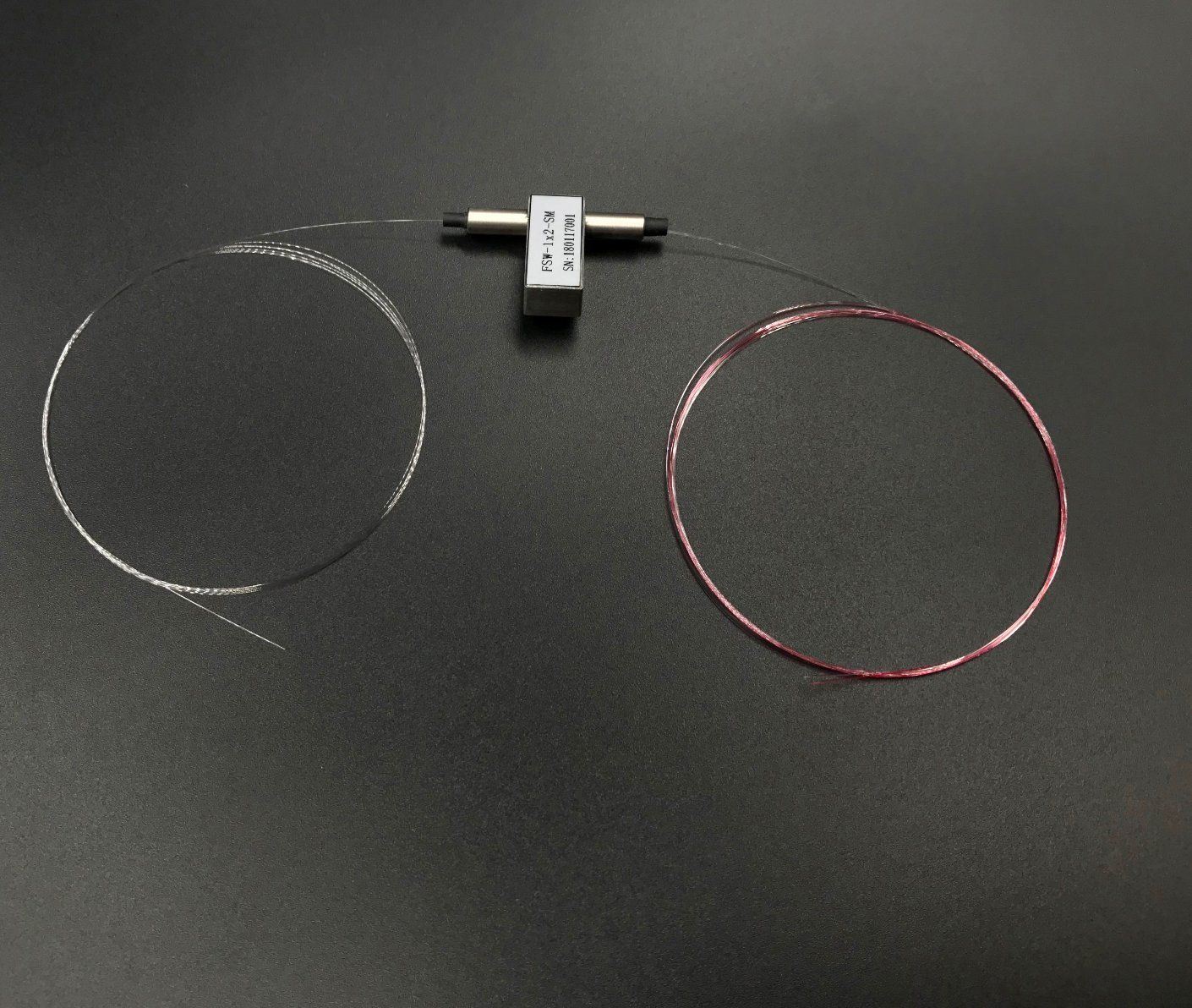

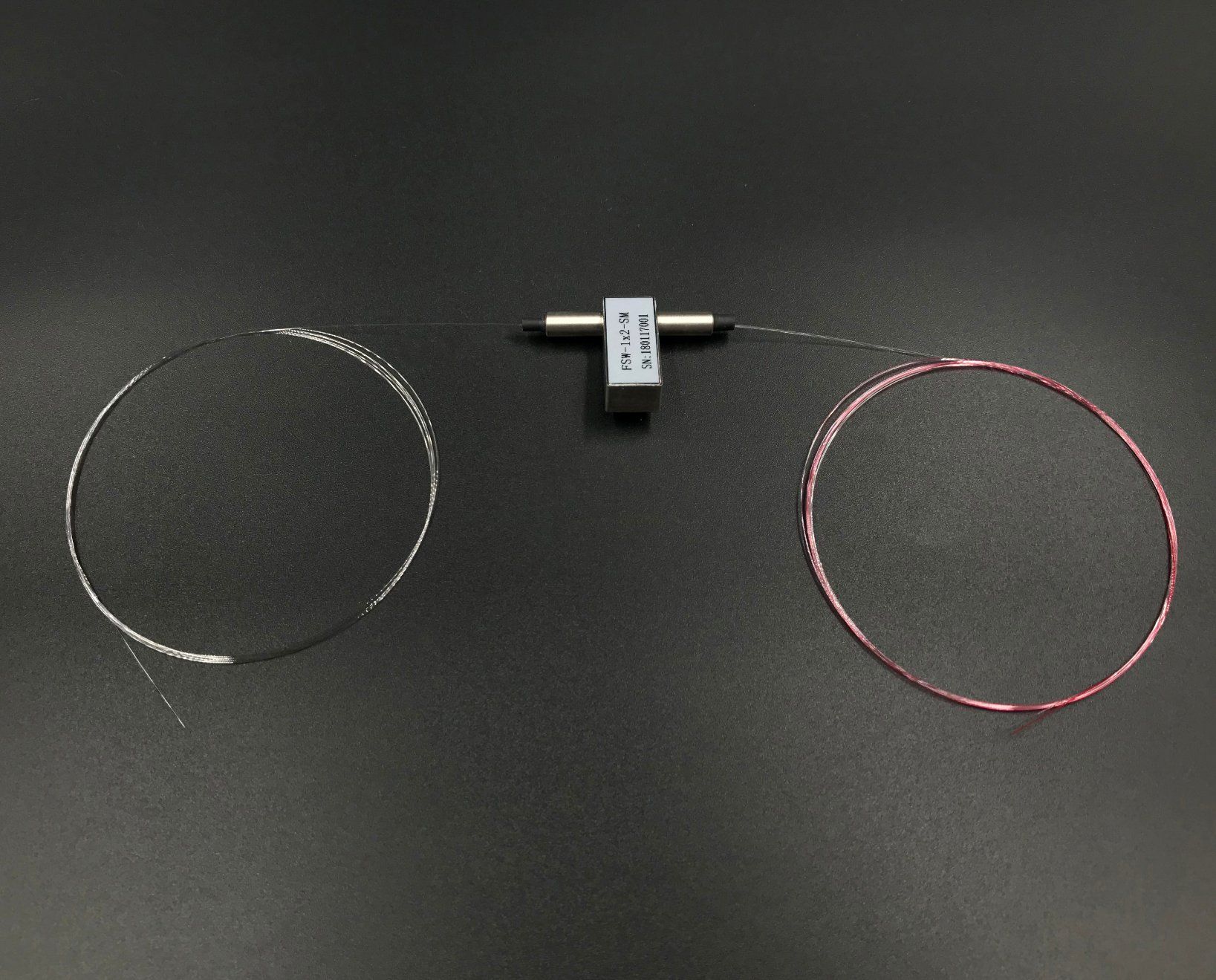

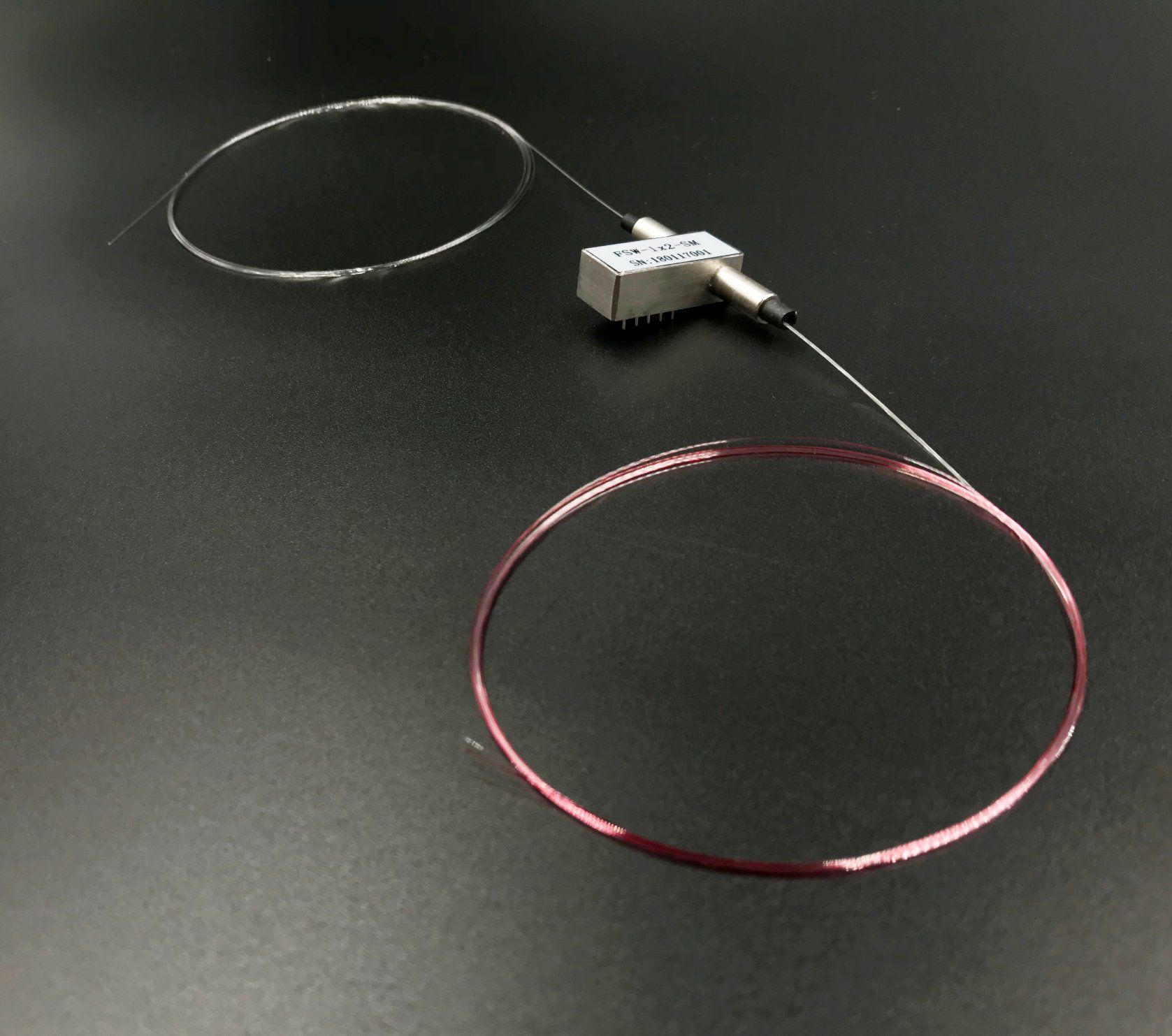

1X2 Optical Switch Bare Fiber

Feature:
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Latching and Non-latching

Application:
Sub-system Integration
Optical Network Monitoring/Protection
Route Fiber Test System
Re-configurable OADM
Test & Measurement Equipment Manufacturing Application
Network Test System

Specifications:

Specifications:

Parameters	Specifications	Unit
Operating Wavelength	1260~1620(SM),850(MM)	nm
Insertion Loss	≤1.0	dB
Wavelength Dependent Loss	≤0.25	dB
Polarization Dependent Loss	≤0.05	dB
Temperature Dependent Loss	≤0.20	dB
Return Loss	SM≥50 MM≥30	dB
Cross Talk	SM≥55 MM≥35	dB
Switch Time	≤8	ms
Repeatability	≤±0.02	dB
Durability	≥10⁷	times
Operating Voltage	3 or 5	V
Switch Type	Non-Latching/Latching
Operating Temperature	-20~+70	ºC
Storage Temperature	-40~+85	ºC
Optical Power	≤500	mW
Dimension	27.0L×12.0W×8.2H	mm

Pins

Type	Optical Route	Electric Drive				State Sensor
1×2	Optical Route	Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	P1-P2	--	--	GND	V+	Close	Open	Open	Close
Latching	P1-P3	V+	GND	--	--	Open	Close	Close	Open
Non-latching	P1-P2	--	--	--	--	Close	Open	Open	Close
Non-latching	P1-P3	V+	--	--	GND	Open	Close	Close	Open

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.

Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.

In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.

Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
